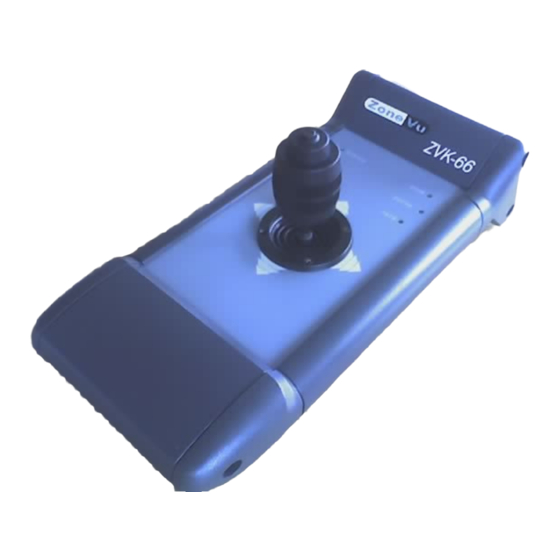

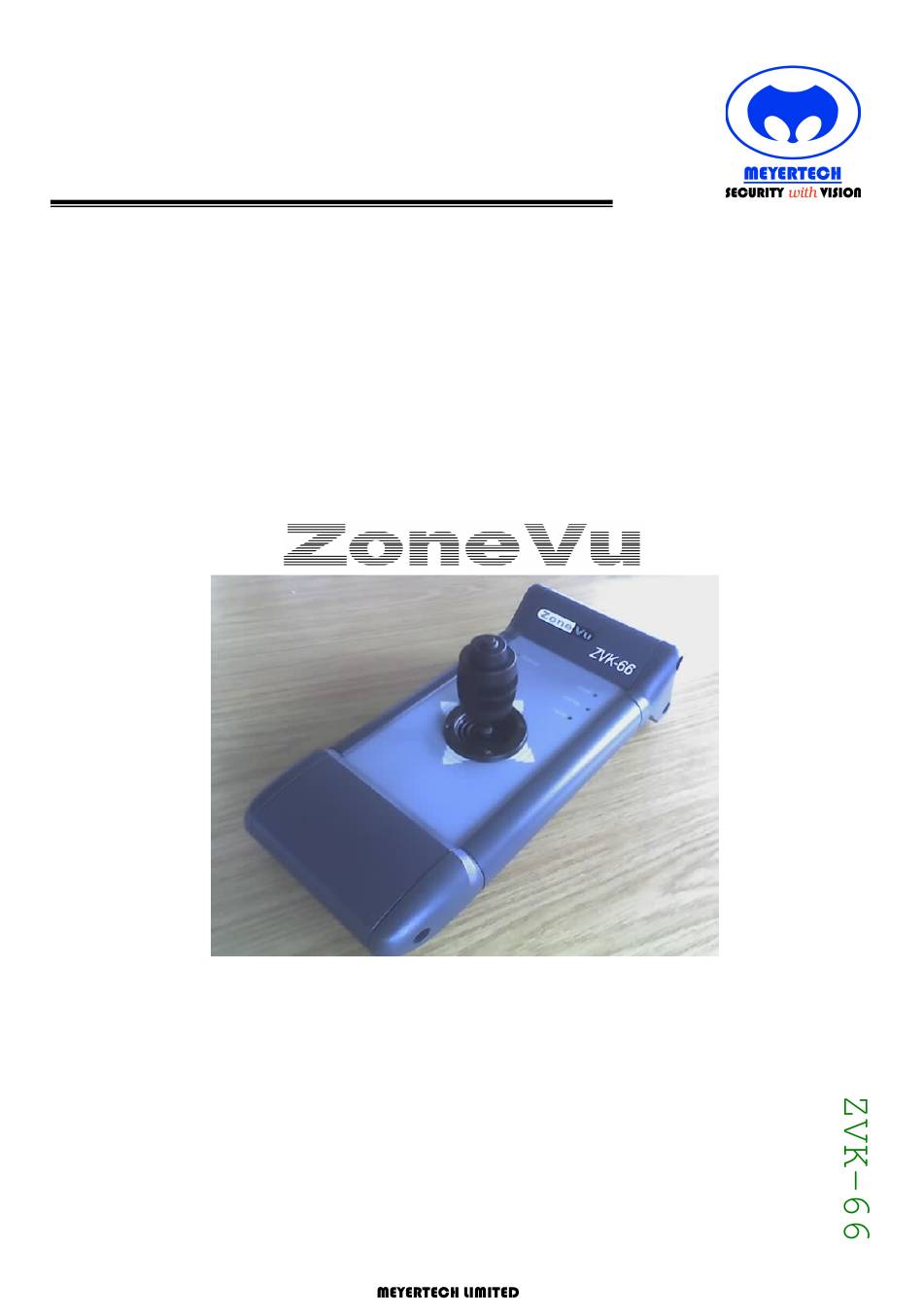

- Page 1 ZVK-66 User Manual Issue 03 Page 1 of 17 ZVK-66 USER MANUAL ZVK-66 CCTV Keyboard Issue 03...
-
Page 2: Table Of Contents
ZVK-66 User Manual Issue 02 Page 2 of 17 Contents CONTENTS................................2 INTRODUCTION..............................3 WHAT IS A ZVK-66? .............................. 3 ZVK-66 LAYOUT ..............................4 Joystick ....................................4 LED layout....................................4 CONFIGURATION ..............................6 Possible Setups ..................................6 Direct To ZVK Network............................... 6 Connected Direct To Fusion .............................. -
Page 3: Introduction
Windows), is capable of controlling multiple independent PTZF cameras on multiple sites. • Assisted MAC configuration The design of the ZoneVu ZVK-66 Keyboard uses the latest materials and technology available to bring superior levels of functionality and integration to the CCTV control room. -
Page 4: Zvk-66 Layout
ZVK-66 User Manual Issue 02 Page 4 of 17 ZVK-66 LAYOUT ZVK-66 STATUS ZOOM FOCUS NETWORK IRIS Joystick The joystick employed in the ZVK-66 is a fully proportional X,Y,Z joystick providing the operator with independent variable speed control of Pan, Tilt, Zoom, Focus and Iris functions. It also has a centre-mounted button that is used to change the functionality of the twist action. - Page 5 ZVK-66 User Manual Issue 03 Page 5 of 17 • Twist Function These are on the right side of the keyboard Name Colour Description Flashing Zoom Green Twist axis will send Twist axis not in this mode zoom telemetry Focus Green Twist axis will send Twist axis not in this mode...
-
Page 6: Configuration
ZVK-66 User Manual Issue 03 Page 6 of 17 Configuration The ZVK-66 keyboard has the usual system engineering parameters, which are normally configured by the engineer during commissioning. When the keyboard is connected direct to the Fusion workstation, the MAC and termination are automatically configured. Please refer to the Fusion and FusionEdit manuals for how to setup Fusion to work with the ZVK-66 attached directly. -
Page 7: Network Setup
ZVK-66 User Manual Issue 03 Page 7 of 17 Network Setup This is only required when the keyboard is connected directly to the ZVK network. The ZVK-66 requires configuration of the following parameters before use: • MAC address • Termination The Module Access code, or MAC is required to identify the ZVK-66 to its associated Fusion Workstation. -
Page 8: Linking To A Workstation
ZVK-66 User Manual Issue 03 Page 8 of 17 Linking to a Workstation It is possible to link a ZVK-66 keyboard directly to the Fusion GUI. The operator must log on to Fusion at Manager or Engineer level then click on the Setup menu option, located at the top left of the screen, the operator must then select the keyboard config option. -
Page 9: Joystick Calibration
ZVK-66 User Manual Issue 03 Page 9 of 17 Configuring using FusionEdit It is possible to configure a ZVK-66 keyboard through the FusionEdit GUI. Click on the Setup menu option, located at the top left of the screen, then select the keyboard config option. This will open a new window that will display the MAC (machine access code) address and termination setting once they have been selected by the keyboard. -
Page 10: Operation
ZVK-66 User Manual Issue 03 Page 10 of 17 Operation The ZVK-66 keyboard is very simple to operate. The joystick is used to send telemetry to the camera that is currently selected by the associated Fusion workstation. • To zoom in and out, use the button on the top of the joystick to select zoom mode and then twist the top of the joystick. -
Page 11: Trouble Shooting
ZVK-66 User Manual Issue 03 Page 11 of 17 Trouble Shooting Symptom Problem Solution Network flashing MAC address conflict Reassign a MAC address. Network LED not lit Device not seeing the network When the keyboard is first plugged in it can take up to a minute to join the network. -
Page 12: Safety Precautions
ZVK-66 User Manual Issue 03 Page 12 of 17 Safety Precautions 1. Carefully read this Product Manual prior to commencing installation and configuration. 2. Before working on this product power it down and remove the power leads. Removing panel’s modules or PCB’s may cause damage to the product and present an electric shock and fire hazard. -
Page 13: Maintenance
ZVK-66 User Manual Issue 03 Page 13 of 17 Maintenance The ZVK-66 requires no Planned Preventive Maintenance periods (PPM’s) as it is mainly solid state in design. The ZVK-66 contains no serviceable parts and should be returned to our Service Centre in Scunthorpe for repair or replacement under warranty. -
Page 14: Disposal
ZVK-66 User Manual Issue 03 Page 14 of 17 Disposal There are no additional requirements beyond safe working practice in the decommissioning of the Meyertech ZVK-66. However the ZVK-66 contains printed circuit boards populated with electronic components. The whole unit must be returned to Meyertech Service Centre for final disposal. -
Page 15: Support
ZVK-66 User Manual Issue 03 Page 15 of 17 Meyertech Limited is a member of the CCTV User Group. Support Meyertech offer comprehensive levels of support during the product’s warranty period. Our support team will be happy to help with any problem you may experience relating to the installation or operation of the ZVK-66 1. -
Page 16: Warranty
ZVK-66 User Manual Issue 03 Page 16 of 17 Warranty Please refer to Meyertech Limited ‘Terms & Conditions of Sale of Goods & Services’ for interpretation. 1. If the Buyer establishes to the Seller' s reasonable satisfaction that there is a defect in the materials or workmanship of the Goods manufactured, then the Seller shall at its option, at its sole discretion and within a reasonable time, a. - Page 17 ZVK-66 User Manual Issue 03 Page 17 of 17 9. In the event that the Buyer discovers a material error which results in the Programmed Products not performing substantially in accordance with the Functional Specification, or the Licensed Programs not performing substantially in accordance with the relevant Program Documentation and notifies the Seller of the error within 90 days from the date of the Seller making available the respective software to the Buyer (the `warranty period") the Seller shall at its sole option either refund the price which the Buyer has paid to the...
