USER AND CONFIGURATION MANUAL
ZVK-77D
System Keyboard

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ZoneVu ZVK-77D and is the answer not in the manual?

Questions and answers

Related Manuals for ZoneVu ZoneVu ZVK-77D

Summary of Contents for ZoneVu ZoneVu ZVK-77D

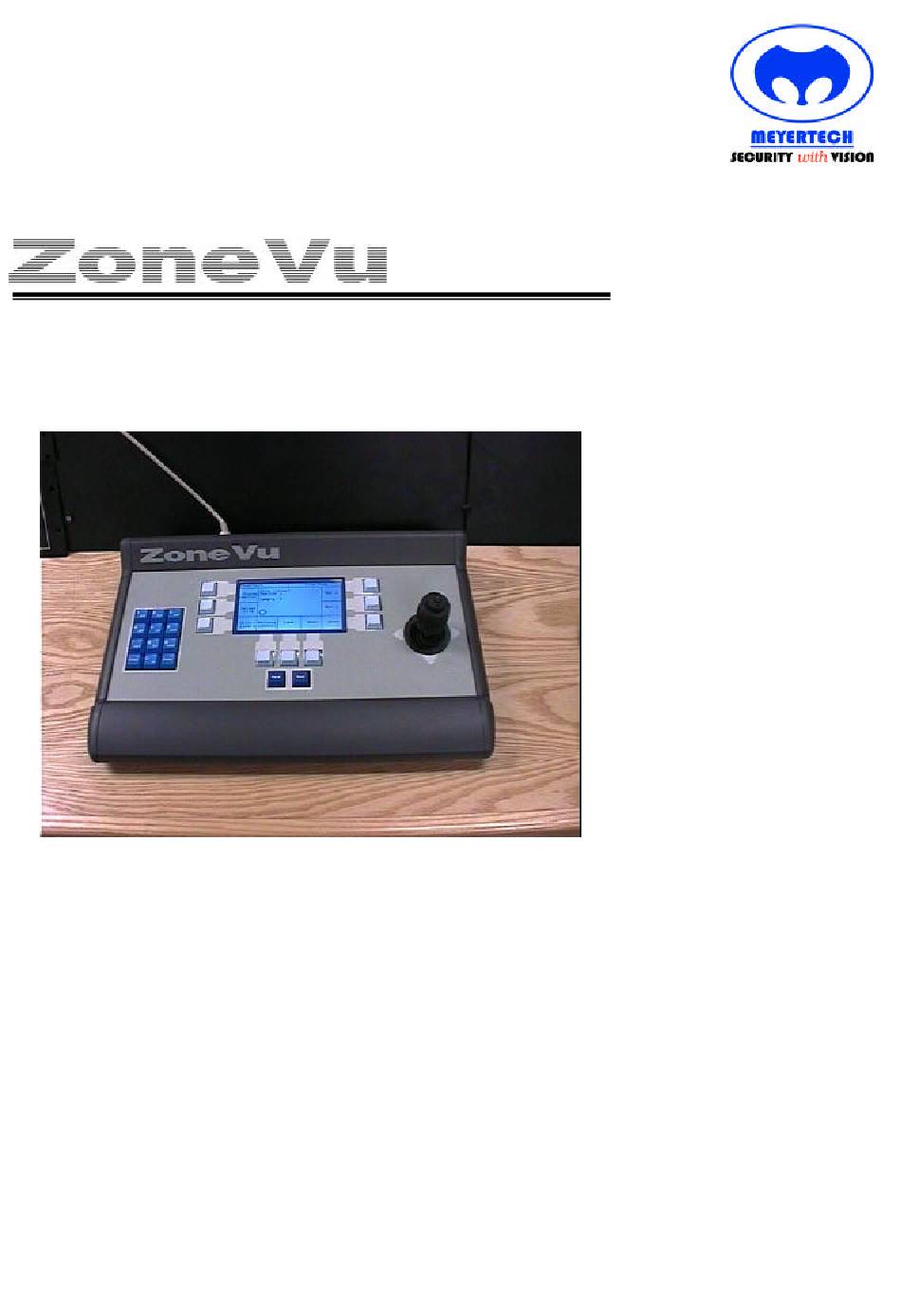

  • Page 1 USER AND CONFIGURATION MANUAL ZVK-77D System Keyboard...

  • Page 2: Table Of Contents

    The information in this manual is believed to be accurate and reliable. However, Meyertech Limited assumes no responsibility or liability for its use, or for any infringement of patents or other rights of third parties, which may result from its use.

  • Page 3: Safety Precautions

    Safety Precautions 1. Carefully read this Product Manual prior to commencing installation and configuration. 2. Before working on this product power it down and remove the power leads. Removing panel’s modules or PCB’s may cause damage to the product and present an electric shock and fire hazard.

  • Page 4: Introduction

    Thank you for purchasing this product. The following instructions will guide you through operation and configuration of the ZoneVu ZVK-77 System Keyboard. Please carefully read the rest of this manual before attempting to operate the product. This will ensure that the best performance is obtained.

  • Page 5: Zvk-77D Menu Structure

    ZVK-77D MENU STRUCTURE LOGGED OFF LOG-ON SELECT MODE MENU USER MANAGER ENGINEER LOG-OFF LOG-OFF LOG-OFF INFO SCREEN INFO SCREEN INFO SCREEN MODE MODE MODE PROGRAM SETUP KEYBOARD SETUP CAMERA SETUP ZVR CONFIG MATRIX CONFIG NETWORK JOYSTICK LOG-IN USER I/F CUSTOM MISC.

  • Page 6: Log-On And Log-Off Procedure

    Log-on and Log-off Procedure Log-on Before the keyboard can be used an operator has to log-on by selecting their user name and entering a PIN. To log-on follow the procedure below. 01. Press the Softkey directly adjacent to the menu option, LOG-ON. 02.

  • Page 7: Info Screen

    The Info Screen displays information about the ZVK-77D you have. This includes the version of firmware E.G. 1.3.2.0, the network status, (not detected means that the ZVK-77D is not currently connected to a ZoneVu network), and the keyboard Module Access Code (MAC). If you request technical support you maybe asked for this information.
  • Page 8 Camera presets are ‘preset’ camera positions of Pan, Tilt, Zoom and Focus which the camera automatically returns to when requested by either the user or ZoneVu system. Home is a special preset position usually set by the system administrator as the position the camera should be at when not being controlled by a user.
  • Page 9 03. Now enter a PRESET in the range 0 – 999 using the Numeric Keypad followed by Enter You can select a Camera Preset Patrol Placing a camera into a Preset Patrol means the camera will continuously execute a series of Camera Presets over a set period of time.

  • Page 10: Mux Mode

    01. Press the Softkey directly adjacent to the menu option, NEXT TRUNK Mux Mode Mux mode allows the user to take control of Multiplexers connected to the ZoneVu system. 01. Press the Softkey directly adjacent to the menu option, MUX MODE to enter the Multiplexer Control menu.

  • Page 11: Vcr Mode

    VCR Mode VCR mode allows the user to take control of VCR’s connected to the ZoneVu system. 01. Press the Softkey directly adjacent to the menu option, VCR MODE to enter the VCR Control menu. Once in the VCR Control Menu you can: Select a VCR to control 01.

  • Page 12: Configuration

    Network setup contains system-engineering parameters that should only be changed by a Meyertech trained engineer. Module Access Code (MAC) The module access code is the ZoneVu network address of ZVK-77D. Each item of equipment on the network requires a unique address to function correctly.
  • Page 13 03. PC Mode is a special non-ZoneVu mode of operation use to connect to a third party control system. In this instance the RS232 port is utilised in place of the ZoneVu port. Joystick Setup The joystick employed in the ZVK-77D is a fully proportional X,Y,Z joystick providing the operator with independent variable speed control of Pan, Tilt, Zoom, Focus and Iris functions.
  • Page 14 Misc. Options Peripheral Type Peripheral type is another example of maintaining compatibility with older and existing ZoneVu products and refers to ZoneVu drivers, which interface CCTV components such as VCR’s and Multiplexers to the system. 01. Press the Softkey directly adjacent to the menu option, Perip. Type to toggle between Old and New.
  • Page 15 Revert to Factory Setting To set the ZVK-77D configuration to the factory settings use this option. Note that if this option is chosen all recent configuration data will be lost. 01. Press the Softkey directly adjacent to the menu option, Revert to factory setting. 02.
