Table of contents 1. Deutsch ....................... 3 2. English ....................... 12 3. Français ......................21 4. Italiano ......................30 5. Español ......................39...

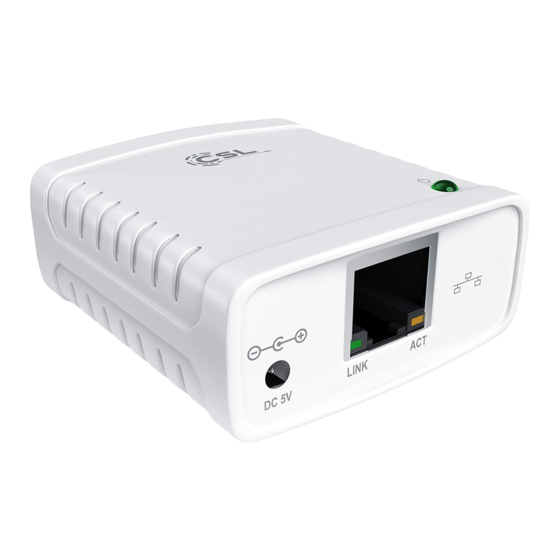

Vielen Dank, dass Sie sich für ein Produkt von CSL entschieden haben. Damit Sie auch lange Freude mit Ihrem erworbenen Gerät haben werden, lesen Sie sich bitte die nachfolgende Kurzanleitung aufmerksam durch. 1. Lieferumfang • LPR USB 2.0 LAN Print-Server •...
Page 4
4. Inbetriebnahme Vergewissern Sie sich, dass Ihr Netzwerk ordnungsgemäß funktioniert. Verbinden Sie das USB-Kabel des anzuschließenden Druckers mit der USB-Buchse des Print-Servers. Schließen Sie das Ende des RJ45 Netzwerkkabels mit der Netzwerkbuchse des Print-Servers an. Das andere Ende des Netzwerkkabels fügen Sie über einen Switch, Router, Hub oder Access Point mit dem gewünschten Netzwerk zusammen.
Page 5
6. Einrichten des Druckers Um einen Drucker einzurichten, klicken Sie bitte auf das „Launch NetworkPrinter- Wizard.exe“ Icon, um den Einrichtungsassistenten zu starten. Klicken Sie als Nächs- tes auf den Reiter „Weiter“. Im weiteren Schritt wählen Sie Ihr Druckermodell aus, damit der dazugehörige Trei- ber installiert werden kann.
Page 6
Hinweis: Die Anzahl der Drucker, die in dieser Liste angezeigt wird, hängt von der Anzahl der Drucker ab, die mit Ihrem Netzwerk verbunden sind. Wenn sich nur ein Drucker im Netzwerk befindet, wird in dieser Liste ein Drucker angezeigt. Sollte sich Ihr Drucker nicht in der Liste befinden, so legen Sie die Installations-CD Ihres Dru- ckers ein und wählen die Schaltfläche „Have Disk“.
Page 7
Nach erfolgreicher Installation können Sie nun den hinzugefügten Drucker unter Systemsteuerung – Drucker und Faxgeräte finden. Je nach Betriebssystem kann die Bezeichnung abweichen. Um den hinzugefügten Drucker zu verwenden, müssen Sie diesen in der Drucker- liste auswählen. Deutsch...
Page 8
7. Einrichten des Druckers ohne Software Alternativ können Sie den Printserver auch manuell unter Windows einrichten. Starten Sie hierzu die Systemsteuerungen. Navigieren Sie unter “Geräte und Dru- cker” und klicken Sie anschließend auf “Drucker hinzufügen”. Es erscheint nun ein Fenster. Wählen Sie “Einen Netzwerk-, Drahtlos- oder Bluetoothdrucker hinzufü- gen.”...
Page 9
Nach einigen Sekunden öffnet sich ein neues Fenster “Zusätzliche Anschlussinfor- mationen erforderlich”. Klicken Sie hier auf “Benutzerdefiniert” und öffnen Sie die “Einstellungen”. In diesem Menüpunkt wählen Sie das Protokoll “LPR” und geben Sie einen “War- teschlangen”-Namen ein. Klicken Sie Anschließend auf “OK” und “Weiter”. Dann öffnet sich ein Fenster “Den Druckertreiber installieren”.
Page 10
9. Sicherheitshinweise und Haftungsausschluss Versuchen Sie nie das Gerät zu öffnen, um Reparaturen oder Umbauten vorzunehmen. Vermeiden Sie Kontakt zu den Netzspannungen. Schließen Sie das Produkt nicht kurz. Das Gerät ist nicht wasserdicht, bitte verwenden Sie es nur im Trockenen. Schützen Sie es vor hoher Luftfeuchtigkeit, Wasser und Schnee. Halten Sie das Gerät von hohen Temperaturen fern.Setzen Sie das Gerät keinen plötzli- chen Temperaturwechseln oder starken Vibrationen aus, da dies die Elektronikteile beschädigen könnte.
Page 11
WEEE Richtlinie: 2012/19/EU WEEE Register-Nr: DE 67896761 Hiermit erklärt die Firma WD Plus GmbH, dass sich das Gerät 304896/20200728SZ039 in Übereinstimmung mit den grundlegenden Anforderungen und den übrigen ein- schlägigen Bestimmungen befindet. Eine vollständige Konformitätserklärung halten unter: Plus GmbH, Wohlenbergstraße...
Thank you for having chosen this CSL product and for placing your trust in our com- pany. Please read this manual carefully before installation to ensure your long-term enjoyment of this product. For future reference, please keep this manual. 1. Scope of delivery •...
Page 13
4. Putting into operation Make sure that your network is functioning properly. Connect the USB cable of the printer to the USB port of the print server. Connect one end of the RJ45 network cable to the network port of the print server. Connect the other end of the network cable to the desired network via the switch or router, hub or access point.
Page 14
6. Setting up the printer To set up a printer, please click on the "LaunchNetworkPrinterWizard.exe" icon. The setup wizard will be launched. Click on the "Next" tab. In the next step, select the printer model to install the associated printer driver. Continue by clicking the "Next"...
Page 15
Note: The number of printers shown in this list depends on the number of printers that are connected to your network. If there is only one printer connected to the network, then one printer will be shown in this list. If you do not see your printer in this list, then insert the installation CD of your printer and click the "Have Disk“...
Page 16
To use the printer you just added, you must select it from the list of printers. 7. Setting up the printer without software Alternatively, you can also manually set up the printer for Windows. To do this, go to Control Panel. Navigate to "Devices and Printers", and then click on "Add Print- er".
Page 17
If the printer is not found, click on "The Printer that I want is not listed". Select "Add printer using a TCP / IP address or hostname" and click on the "Next" button. You must then enter the IP address of the print server in both the available fields. You can find the IP address, for instance, from the menu of your router.
Page 18
8. List of compatible printers (p. 48 ) Note: The LPR USB 2.0 LAN Print-Server is compatible with a wide range of printers that support the LPR standard. The models provide (on site 48 in this user manual) an overview of only those printer models that are already tested. 9.
Page 19
Please observe the relevant national provisions and legal restrictions. Do not use this product for anything other than intended and as described in the manual. Any attempt of repairs or alterations by someone other than the original supplier will invalidate the guarantee and result in refusal of warranty claims.Persons who are familiar with the operating manual and the applicable regulations concerning working safety and accident prevention may only use the product.
Page 20
WEEE guideline: 2012/19/EU WEEE register number: DE 67896761 WD Plus GmbH, herewith declares that this product 304896/20200728SZ039 conforms to the principle requirements and other relevant stipulations. The complete Declaration of Conformity can be obtained from: WD Plus GmbH, Wohlenbergstraße 16, 30179 Hannover...
Nous vous remercions d’avoir choisi un produit de CSL. Veuillez lire attentivement le mode d’emploi ci-après afin que cet appareil vous donne satisfaction pendant longtemps. 1. Contenu de la livraison • Serveur d'imprimante LPR LAN USB 2.0 • CD d'installation •...
Page 22
4. Mise en service Assurez-vous que votre réseau fonctionne correctement. Connectez le câble USB de l'imprimante à connecter avec la prise USB du serveur d'imprimante. Branchez l'extrémité du câble de réseau RJ45 à la prise de réseau du serveur d'im- primante.
Page 23
6. Configuration de l'imprimante Pour configurer une imprimante, cliquez sur l'icône « Launch NetworkPrinterWi- zard.exe » pour lancer l'assistant de configuration. Cliquez ensuite sur l’onglet « Continuer ». Dans la suivante étape, sélectionnez le modèle de votre imprimante, afin que le pilote correspondant puisse être installé.
Page 24
Attention: Le nombre d'imprimantes qui sont affichées dans cette liste dépend du nombre d'imprimantes qui sont connectées à votre réseau. Si une seule imprimante se trouve dans le réseau, cette liste montrera une seule imprimante. Si votre impri- mante ne se trouve pas dans la liste, placez le CD d'installation de votre imprimante dans le lecteur et sélectionnez le bouton «...
Page 25
Après une installation réussie, vous pouvez trouver l'imprimante ajoutée sous Panneau de configuration – Imprimantes et fax. Selon le système d'exploitation, la désignation peut varier. Pour utiliser l'imprimante ajoutée, vous devez la sélectionner dans la liste d'im- primantes. Français...
Page 26
7. Configuration de l'imprimante sans logiciel Comme alternative, vous pouvez aussi configurer le serveur d'imprimante manuel- lement sous Windows. Lancez, à cette fin, le Panneau de configuration. Naviguez à « Périphériques et im- primantes » et cliquez ensuite sur « Ajouter une imprimante ». Une fenêtre appa- rait.
Page 27
Après quelques secondes, une nouvelle fenêtre s'ouvre, « Des informations de connexion supplémentaires sont nécessaires ». Ici, cliquez sur « Personnalisé » et ouvrez les « Configurations ». Dans ce point de menu, sélectionnez le protocole « LPR » et saisissez un nom de «...
Page 28
9. Consignes de sécurité et clause de non responsabilité N’essayez jamais d’ouvrir l’appareil pour le réparer ou le modifier. Évitez tout contact avec la tension du secteur. Ne court-circuitez pas l’appareil. L’appareil n’est pas étanche, veuillez l’utiliser uniquement dans un endroit sec. Protégez-le d’un taux d’humidité...
Page 29
Directive DEEE: 2012/19/EU EUN° d’enregistrement DEE: 67896761 Par la présente, la société WD Plus GmbH déclare que l’appareil 304896/20200728SZ039 est conforme aux exigences essentielles et aux autres dispositions pertinentes. Pour ob- tenir une déclaration de conformité dans son intégralité, contactez: WD Plus GmbH, Wohlenbergstraße 16, 30179 Hanovre...
Grazie per aver scelto un prodotto CSL. Perché possa giovarsi a lungo del prodotto appena acquistato, legga completamente ed attentamente le seguenti brevi istru- zioni. 1. Contenuto della confezione • Server di stampa LPR USB 2.0 LAN • CD di installazione •...
Page 31
4. Messa in funzione Assicurarsi che la rete funzioni correttamente. Collegare il cavo USB della stampante collegata alla porta USB del server di stampa. Collegare l'estremità del cavo di rete RJ45 alla porta di rete del server di stampa. Collegare l'altra estremità del cavo di rete alla rete desiderata tramite switch, rou- ter, hub o punto di accesso.
Page 32
6. Impostazione della stampante Per impostare una stampante, cliccare sull'icona "Launch NetworkPrinterWizard. exe" e avviare l'installazione guidata. Quindi cliccare sul pulsante "Avanti". Nel passaggio successivo, selezionare il modello della stampante, in modo che pos- sa essere installato il driver associato. Procedere e cliccare sul pulsante "Avanti". Italiano...
Page 33
Nota: Il numero di stampanti che verrà visualizzato in questo elenco dipende dal nu- mero di stampanti che sono collegate alla rete. Se in rete si trova solo una stampan- te, la stampante verrà mostrata in questo elenco. Nel caso che la stampante non sia nell'elenco, inserire il CD originale di installazione della stampante e selezionare il pulsante "Have Disk".
Page 34
Dopo la corretta installazione, è possibile trovare la stampante aggiunta nelle Im- postazioni di sistema - Stampanti e fax. Il nome può essere diverso a seconda del sistema operativo. Per utilizzare la stampante aggiunta, selezionarla nell'elenco delle stampanti. 7. Impostazione della stampante senza il software Italiano...
Page 35
In alternativa, è possibile impostare il server di stampa in ambiente Windows an- che manualmente. Per effettuare questa operazione, avviare i controlli di sistema. Navigare alla voce "Dispositivi e stampanti" e quindi cliccare su "Aggiungi stampante". Ora, viene vi- sualizzata una finestra. Selezionare "Aggiungere una stampante Bluetooth, wire- less o di rete".
Page 36
In questo menu, selezionare il protocollo "LPR" e inserire un nome per la "Coda di stampa". Successivamente cliccare su "OK" e "Avanti". Successivamente, si apre la finestra "Installare il driver della stampante". Cercare la stampante nell'elenco o installarla manualmente, cliccando su "Supporto dei dati" e specificando il percorso in cui si trova il driver.
Page 37
9. Avvertenze di sicurezza ed esclusione della responsabilità Non tentare di aprire l’apparecchio per ripararlo o sistemarlo. Evitare di entrare in contatto con la tensione di rete. Non cortocircuitare il prodotto. L’apparecchio non è ermetico, quindi utilizzarlo solo in luoghi asciutti. Proteggerlo da elevata umidità...
Page 38
Direttiva RAEE: 2012/19/EU Reg. RAEE n.: DE 67896761 La società WD Plus GmbH ivi dichiara che l’apparecchio 304896/20200728SZ039 è conforme requisiti base alle rimanenti disposizioni mate- ria. Per la dichiarazione di conformità completa, rivolgersi a: WD Plus GmbH, Wohlenbergstraße 16, 30179 Hannover...
Muchas gracias por haberse decidido por un producto de CSL. Para gozar por lar- go tiempo del aparato adquirido, lea con atención por favor las siguientes breves instrucciones. 1. Volumen de suministro • Servidor de impresión LPR USB 2.0 LAN •...
Page 40
4. Puesta en funcionamiento Asegúrese de que la red funciona adecuadamente. Conecte el cable USB de la impresora que va a conectar al casquillo USB del servi- dor de impresión. Enchufe el extremo del cable de red RJ45 al casquillo de red del servidor de impre- sión.
Page 41
6. Instalar la impresora Para instalar una impresora, pulse sobre el icono "Launch NetworkPrinterWizard. exe" para iniciar el asistente de instalación. Pulse luego la pestaña "Siguiente". En el siguiente paso, escoja el modelo de impresora para poder instalar el controla- dor correspondiente.
Page 42
Indicación: El número de impresoras mostrado en esta lista depende del número de impresoras conectadas a su red. Si solo hay una impresora en la red, la lista mos- trará únicamente una impresora. Si su impresora no aparece en la lista, introduzca el CD de instalación de la impresora y seleccione el botón "Disco duro".
Page 43
Es posible que la denominación varíe en función del sistema operativo. Para utilizar la impresora añadida, debe seleccionarla en la lista de impresoras. 7. Instalar la impresora sin software Español...
Page 44
De manera alternativa, también puede instalar el servidor de impresión de forma manual con Windows. Abra para ello el panel de control. Navegue a "Dispositivos e impresoras" y pulse luego "Añadir impresora". Aparecerá una ventana. Seleccione "Añadir una impre- sora de red, inalámbrica o por Bluetooth". Si no se encuentra la impresora, pulse "La impresora deseada no aparece en la lista".
Page 45
Pulse luego "Aceptar" y "Siguiente". Se abrirá la ventana "Instalar impresora". Bus- que su impresora en la lista o instálela de forma manual pulsando en "Soporte de datos" e indicando la ruta del controlador. La instalación de su servidor de impresión ha finalizado. 8.
Page 46
Compruebe el dispositivo antes de utilizarlo por si presentara algún deterioro. No utilice el dispositivo si ha recibido un golpe o se ha dañado de cualquier otro modo. Respete las disposiciones y restricciones nacionales. No utilice el dispositivo para otros fines a los detallados en el manual. Este producto no es un juguete.
Page 47
Directiva WEEE: 2012/19/EU N.º reg. WEEE: DE 67896761 presente, empresa Plus GmbH declara dispositivo 304896/20200728SZ039 cumple los requisitos fundamentales y las demás dis- posiciones específicas. Puede obtener una declaración de conformidad íntegra en: WD Plus GmbH, Wohlenbergstraße 16, 30179 Hannover Español...
