CasaTunes XLe Quick Start Manual

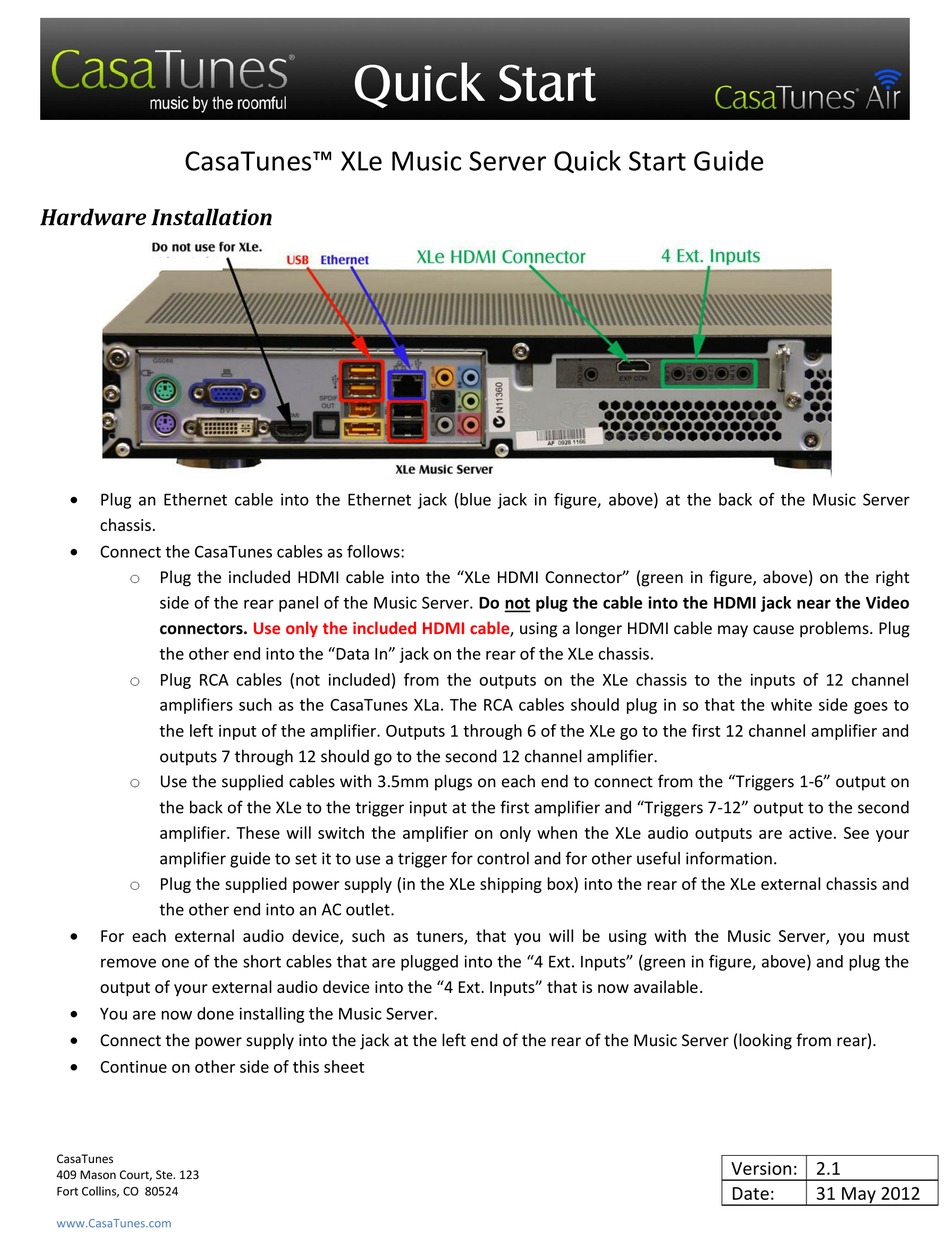

CasaTunes™ XLe Music Server Quick Start Guide

Hardware Installation



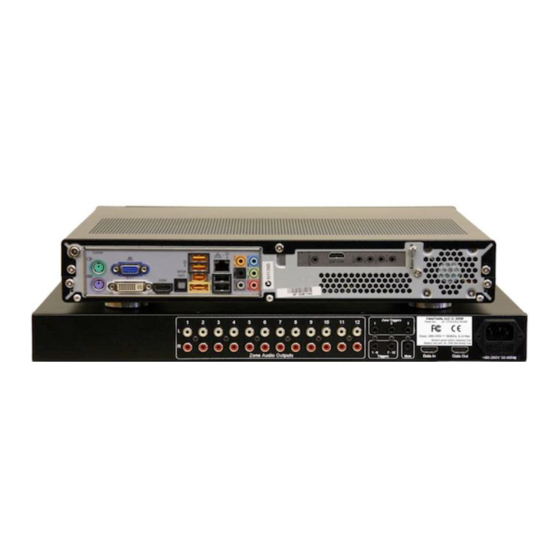

Plug an Ethernet cable into the Ethernet jack (blue jack in figure, above) at the back of the Music Server
chassis.

Connect the CasaTunes cables as follows:
o Plug the included HDMI cable into the "XLe HDMI Connector" (green in figure, above) on the right
side of the rear panel of the Music Server. Do not plug the cable into the HDMI jack near the Video
connectors.
the other end into the "Data In" jack on the rear of the XLe chassis.
o Plug RCA cables (not included) from the outputs on the XLe chassis to the inputs of 12 channel
amplifiers such as the CasaTunes XLa. The RCA cables should plug in so that the white side goes to
the left input of the amplifier. Outputs 1 through 6 of the XLe go to the first 12 channel amplifier and
outputs 7 through 12 should go to the second 12 channel amplifier.
o Use the supplied cables with 3.5mm plugs on each end to connect from the "Triggers 1-6" output on
the back of the XLe to the trigger input at the first amplifier and "Triggers 7-12" output to the second
amplifier. These will switch the amplifier on only when the XLe audio outputs are active. See your
amplifier guide to set it to use a trigger for control and for other useful information.
o Plug the supplied power supply (in the XLe shipping box) into the rear of the XLe external chassis and
the other end into an AC outlet.

For each external audio device, such as tuners, that you will be using with the Music Server, you must
remove one of the short cables that are plugged into the "4 Ext. Inputs" (green in figure, above) and plug the
output of your external audio device into the "4 Ext. Inputs" that is now available.

You are now done installing the Music Server.

Connect the power supply into the jack at the left end of the rear of the Music Server (looking from rear).

Continue on other side of this sheet
CasaTunes
409 Mason Court, Ste. 123
Fort Collins, CO 80524
www.CasaTunes.com
Quick Start
Use only the included HDMI cable, using a longer HDMI cable may cause problems. Plug
Version: 2.1
Date: 31 May 2012
