QuickStart Guide
CasaTunes CT-1/2 Music Server
Use this guide to quickly setup and configure your
CasaTunes music server by following these steps:
1.
Unpack and verify system contents
2.
Connect the music server power, network,
control and audio cables
3.
Use the CasaSetup browser application to
configure your system
4.
Optionally setup your music server to use WiFi
Use this guide in conjunction with the QuickStart
Guide for your matrix amplifier to setup your
system
Music Server connections
1
Connect the network cable
If your matrix amplifier is controlled using
RS-232 (serial), then plug in and connect
2
the usb-to-serial cable from your music
server to the control port on your matrix
amplifier
Connect Stream 1 (using the analog 3.5
3
mm to RCA audio cable) to your matrix
amplifier
For a CT-2, plug in the USB Audio adapter
4
and connect Stream 2 (using the analog 3.5
mm to RCA audio cable) to your matrix
amplifier
Now follow the QuickStart Guide for your
5
matrix amplifier to connect your music
server with your matrix amplifier
Need Help? Email: Support@CasaTunes.com or Phone: 970.237.3140
What's in the box?

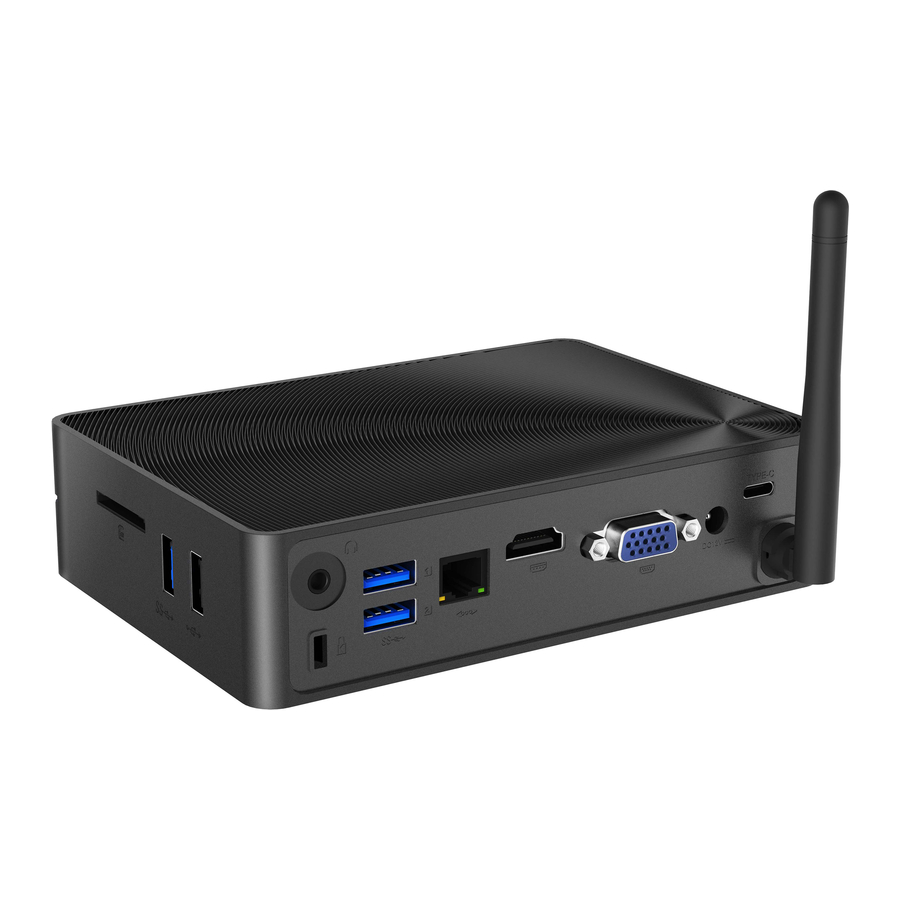

1 x CT-1/2 CasaTunes music server
1 x USB Audio Adapter (CT-2 only)
1 x Power adapter
1 x Network cable
1 x USB-to-serial cable*
1 x 3.5 mm stereo to RCA audio cables (2
for CT-2)
*Replaced with an extra network cable when server is shipped
with a CT-5X4MA or CT-12X8MA matrix amplifier
1
Advertisement
Related Manuals for CasaTunes CT-1
Summary of Contents for CasaTunes CT-1
- Page 1 CasaTunes CT-1/2 Music Server Use this guide to quickly setup and configure your What's in the box? CasaTunes music server by following these steps: Unpack and verify system contents Connect the music server power, network, 1 x CT-1/2 CasaTunes music server...
- Page 2 PC: http://casaserver/casasetup MAC: http://casaserver.local/casasetup Select the Select Controller menu item in CasaSetup. Select your matrix amplifier from the list of available Controller Types. Configure the IP or Serial Settings for the matrix amplifier. Need Help? Email: Support@CasaTunes.com or Phone: 970.237.3140...
- Page 3 Add <music service> account button to add an additional account, or the X button to delete an account. Download the CasaTunes Apps for Android and iOS from the Google Play and Apple Store Register your system with CasaTunes. This streamlines the Support process should you need support.
- Page 4 CasaTunes CT-1/2 Music Server WiFi Setup You must be connected to a wired network before you can enable the CT-1/2 to use WiFi settings. Once you have successfully configured the music server WiFi settings, you can disconnect your CasaTunes music server from your wired network.
-
Page 5: Helpful Links
View Other Technical Documentation https://casatunes.com/guides How to setup and use Alexa https://www.casatunes.com/features/alexa How to setup SONOS https://www.casatunes.com/support/docs/setup-sonos How to integrate an AV Receiver https://www.casatunes.com/support/docs/avr How to listen to your own music collection https://www.casatunes.com/support/docs/quicksync-setup Need Help? Email: Support@CasaTunes.com or Phone: 970.237.3140...
