Installation - AMS VICAM--M7-MULTi Manual

2. USE

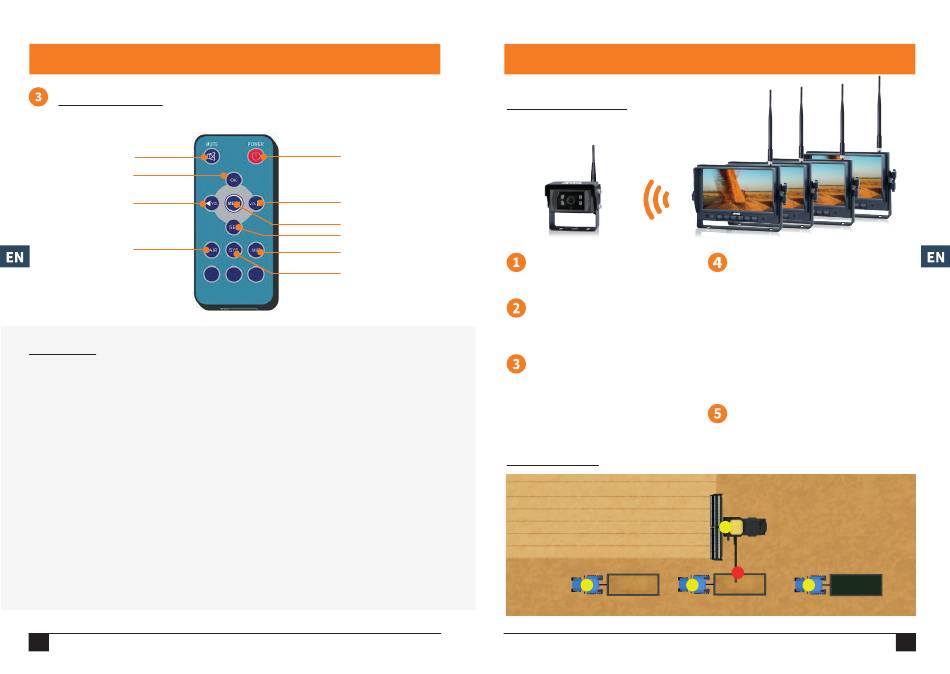

REMOTE CONTROL
Silent mode
Confirm / Enter
Volume
Navigation towards the left
«PAIRING» mode
FEATURES
Monitor
- 7" wireless color screen (16:9)
- 1 video input
- Wireless range distance: 120m
- Protection rating against solids and liquids :
IP40
- Recording function (micro SD not supplied,
max.
128 GB)
- Operating temperature : -20˚C +70˚C
- Parking line
- Adjustable luminosity, color and contrast
- Backlit keys
- Inversion of the horizontal and vertical image
- Resolution : 800 x 3 (RGB) x 480 pixels
- Automatic brightness adjustment
- Sound
- Voltage : 12/24 Volts
4
AMS Diffusion - Rue des Galeries - ZA du Chevalement - 59286 Roost Warendin - FRANCE - Tél. +33 (0)3.27.94.44.44 - Fax. +33 (0)3 27 94 44 45
Email : contact@ams-diffusion.fr - www.ams-diffusion.com RCS DOUAI A 451 360 382 - CODE APE 4531Z - SIRET 451 360 382 00035 - TVA FR 55 451 360 382
Power ON/OFF
Volume
Navigation towards the right
Menu settings
Display mode
Mirror
PAL/NTSC mode
Camera
- Protection rating against solids and liquids :
IP69K
- Option of pairing up to 4 displays
- View angle : 120°
- Operating temperature :-20°C +70°C
- Storage temperature : -30°C +80°C
- Resolution : 500 TVL
- VGA : 728 x 488 pixels
- Night vision
- Night vision distance : 10m

3. INSTALLATION

PAIRING MATERIAL
For added convenience, you are advised to perform the pairing
process in the workshop.
Power up the products before you start.
The camera determines the pairing order for
the displays: 1 - 2 - 3 - 4.
Select the 'PAIRING' menu to start the
pairing process (or press OK for 3 seconds).
A 50-second countdown will begin
To start the camera pairing process, press
the button on the back of the camera.
Warning:
1 press = 1 pairing process launched.
If the pairing process fails, the camera goes
on to the next channel.
INSTALLATION
Screen 2 : FOLLOWING DISPLAY Screen 3 : FOLLOWING DISPLAY
AMS Diffusion - Rue des Galeries - ZA du Chevalement - 59286 Roost Warendin - FRANCE - Tél. +33 (0)3.27.94.44.44 - Fax. +33 (0)3 27 94 44 45
Email : contact@ams-diffusion.fr - www.ams-diffusion.com RCS DOUAI A 451 360 382 - CODE APE 4531Z - SIRET 451 360 382 00035 - TVA FR 55 451 360 382
Up to 4 screens
The image will appear on the display once
the pairing is complete. If displays are already
recorded in positions no. 1 and no. 2 in the camera,
the following display will pair with channel no. 3
The position of the monitor is shown in the order
of pairing at the top left of the display:
RX1 (pilot display), RX2 (following display), RX3
(following display) or RX4 (following display).
Pay attention to this indicator, as it allows you to
identify the pairing order correctly.
Pilot display: any modifications made are applied
to the following displays (e.g. colour settings)
Check the camera display on all of the
monitors.
If the message 'no signal' appears, repeat the pairing procedure
Screen 1 : PILOT
Caméra
Screen 4 : FOLLOWING DISPLAY
5
