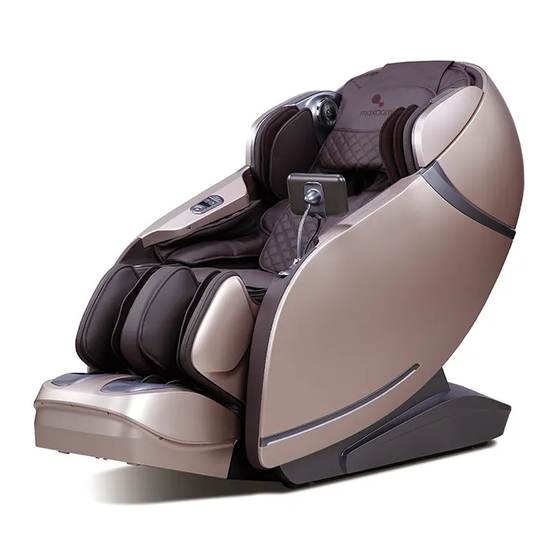

Maxcare MAX-76A100 User Manual
  1. Manuals
  2. Brands
  3. Maxcare Manuals
  4. Massager
  5. MAX-76A100
  6. User manual

Maxcare MAX-76A100 User Manual

Hide thumbs

Advertisement

Quick Links

Download this manual
User Manual
MAX-76A100

Advertisement

loading
Need help?

Need help?

Do you have a question about the MAX-76A100 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Maxcare MAX-76A100

Summary of Contents for Maxcare MAX-76A100

  • Page 1 User Manual MAX-76A100...
  • Page 2 COMPANY PROFILE After two decades of experience in the health industry, founder utilized his knowledge and expertise in massage therapy from an Asian-Pacific perspective to establish our brand - Our massage therapy business was expanded to Hong Kong in 2012 and is conferred 2017 Hong Kong Top Brand Award. Based in Hong Kong, we are specializing in design &...

  • Page 3: Table Of Contents

    Thank you for purchasing the Maxcare products. Before using the product, please read this manual thoroughly, particularly the Safety Precautions section, for the correct use of the product. This manual should be well kept for easy reference. It enables you to perform a safe and efficient operation.

  • Page 4: Safety Precautions

    Safety Precautions 1. Important safety warning • Keep children and pets away from the movable parts of this product for the avoidance of accidents caused by the up-and down-ward movement of the calf rest and back cover. • When in use, sliding or transporting, please ensure that there are no people or pets nearby (the back, bottom, front and sides of the product), and that no foreign objects or pets inside the product, to avoid accidents.
  • Page 5 Safety Precautions • The appliance has heating function. People who are insensitive to heat must be careful when using the appliance. • People who are receiving medical treatment, especially those who are physically unfit. • People who have open wounds. •...
  • Page 6 Safety Warning Warning When the calf rest is ascending during use, do not apply pressure on it. This is to prevent the massage chair from falling forward and causing damage or injury. Do Not Press Warning Prior to sitting on the massage chair, please make sure the mechanical massage hands are not located under the seat.
  • Page 7 Safety Warning Warning In “standby” mode, or when the massage chair has been connected to power, do not drag/ pull the power cord. Damage to the power plug (or its parts) due to forceful pulling/ dragging will cause damage to the product or possible electric shock. It is advised to unplug the massage chair and tie up the power cord when not in use.

  • Page 8: Name And Function Of Components

    Name and Function of Components 1. Headrest 2. Bluetooth Digital Speakers 3. Upper Arm Airbags 4. O2 Ionizer 5. Quick Control Panel 6. USB Charging Port 7. Arm Airbags 8. Phone Holder 9. Seat Cushion 10. Touch Screen Monitor Holder 11.
  • Page 9 Name and Function of Components Function: • This product is equipped with a set of silent smart 3D massage heads which move up and down and; front and back. • Capable of automatically detecting and fine-tuning shoulder position; detecting body curve and shiatsu points to adjust accordingly the movement of the massage heads.

  • Page 10: Control Interface

    Control Interface Touch Screen Monitor 16min Quick Refresh Quick Refresh Manual Customise Fresh Morning Angle Setting Good-night Sleep Joint Care Spine Massage Pain Relief Thai Massage Upper Air Lower Air More *Warning: The real object should be considered as final. 1.

  • Page 11: How To Use

    How to Use 1. Connect to power Diagram of plugging in Diagram of wire connection Diagram of the switch position 2. Massage Function Operation 1. Begin massage (power button) - In “standby” mode, there is no access to any massage modes. - Press the power button to activate the massage program.
  • Page 12 How to Use - When detection is over, there will be “tik tik” sound. Further finetune the position of the massage hands using the “ ” and “ ” buttons, if needed. There are 11 finetune adjustment levels for shoulder position. If there is no adjustment after 10 seconds, the massage will begin automatically.
  • Page 13 How to Use 3. Massage Intensity for Upper Body (3D Button) - In Massage Information page, pressing the “ ” or “ ” button will adjust the massage intensity of the mechanical hands for the upper body. There are 5 intensity levels in total. 16min Quick Refresh Quick Refresh...
  • Page 14 How to Use Auto Program Function Description Quick Alleviate body soreness and tiredness with a back focus. Improve Refresh microcirculation for limbs and ease tiredness Fresh Wake body muscle and other mechanism to start the day fresh Morning after a night of sleep Good-night Through massaging the regimen acupuncture points to nurse and Sleep...
  • Page 15 How to Use Auto Program Function Description Pain Relief With reference to the ancient Persian massage, relax the whole body with kneading and tapping Boost quality of nap and hence raise work efficiency Noon Recharge Special Dredge meridian to encourage body’s microcirculation. Enhance Deep immune system Massage...
  • Page 16 How to Use 5a. Manual – Mode - In the Manual Massage Function page, you can choose the massage mode, back stretch, the massage speed and the width between massage hands. - Manual (Mode): kneading, tui na, tapping, kneading and tapping, shiatsu, 3D and grasping. - For tapping and shiatsu, the width between the massage hands can be adjusted.
  • Page 17 How to Use Function Description Fixed Massage a fixed point Partial Massage a limited area Upper Back Massage the upper back Lower Back Massage the lower back Full Back Massage the whole back In “point” or “part” mode, move the massage hands upward Down In “point”...
  • Page 18 How to Use 5d. Manual – Calf Kneading - Press the “ “ button to turn on/off the calf kneading function. There are 3 different Calf knead kneading sub-modes. Press “ “ or “ “ to adjust the direction of the kneading motion. - Press the “...
  • Page 19 How to Use 5f. Manual – Negative Ion - Press the “ “ button to turn on/off the negative ion function. Press the “ ” button to exit the Manual Massage Function page. Manual Mode 16min Manual Ⅱ Ⅱ Knead Flag Swedish Shiatsu...
  • Page 20 How to Use 6. Customization - Press the “ “ button to enter the Customized Massage Function page to access the Customise memory programs named as Customization I, Customization II and Customization III. - To save the massage functions or alter saved the massage functions. - Save: to save the present massage settings, including the massage modes, air pressure, chair angle and all the other massage functions.
  • Page 21 How to Use 1. Recline angle adjustment Button Description Press and hold this button to raise the leg rest. Release the button to stop the motion. When the height is set, the auto-detection function will begin to Seat-Up examine the foot length. Press and hold this button to lower the leg rest.
  • Page 22 How to Use 8. Setting - Press “ “ button to enter the Setting page to access functions such as brightness Setting adjustment, screen time adjustment, volume adjustment, serial no. and languages. - Press the “ ” button to exit the Setting page. 16min Quick Refresh Setting...
  • Page 23 How to Use 10. Time Adjustment - Press the “ “ button to set the time of the massage. Each press adds 5 minutes to the 16min current duration of the massage. The total duration cannot exceed 40 minutes. Time will return to its minimum value after exceeding 40 minutes.
  • Page 24 How to Use 3. Turn off power, cease massage - Press the power button when the massage is ongoing will immediately turn off all massage functions. The chair will be set to its starting position. - When the rated time is up, all massage functions will stop. The chair will however remain in the then position.
  • Page 25 How to Use 5. Hold the tip and the rear end of one armrest with both hands. Insert first the shaft at the rear end of the armrest into the hole on the metal frame of the seat. Uplift the armrest slight to check if the shaft is locked firmly (Pic 5).
  • Page 26 How to Use 5. Leg Rest Installation 1. Cut the cable tie on the connection wires and the air pipe (Pic 1). 2. Connect the connection wires and the air pipe from the frame to those from the calf rest properly.
  • Page 27 How to Use 7. Clamp the groove at the rear end of the footrest cover is on the pin axis, and then press the tip of the footrest cover until it is parallel to the rotating shaft cover plate, and the convex points at the sides of the footrest should be stuck in the holes at the sides of the footrest hook.
  • Page 28 How to Use 7. Headrest & Back Cushion Installation and Use 1. Using the headrest can lessen the massage intensity borne by the neck and shoulders. You may choose to use the headrest according to your own needs (recommended). Back cushion is attached to the back through zipper (1);...

  • Page 29: Cleaning And Maintenance

    How to Use 9. Moving the Massage Chair Before moving the massage chair, make sure no power cords and any cables are on the floor. Two people are required to move the chair, one in front and one at the back. Uplift the chair from the front while press downward at the back.
  • Page 30 Kind Reminders * If the product has been used for long, please check the conditions as below: - Burnt smell. - Unstable power supply after contact with the power cord. - Power cord heating up. - Power cords damage. - Other abnormalities. - If above mentioned happens, please stop using the product.

  • Page 31: Faqs And Solutions

    If the abnormal situations persist after taking the above solutions, please contact us. Technical Specifications Product Name : Max Generation Air Pressure : 0.025-0.03MPa Product Model : MAX-76A100 Negative Ion Concentration : Max. 240000pcs/cm Rated Voltage : 110-120V ~60Hz Product Size (Erected) : 148x80x118cm...
  • Page 32 商標持有 : 美斯凱實業有限公司 公司地址 : 香港北角健康東街39號柯達大廈二期1601室 Trademark holder: Maxcare Industrial Limited Address: Rm 1601 Kodak House II, 39 Healthy Street East, North Point, Hong Kong 客戶服務熱線 Customer Service Hotline : 香港 Hong Kong - (852) 2950-9383 中國 China - (86) 400 882-1883 www.maxcare.net...
