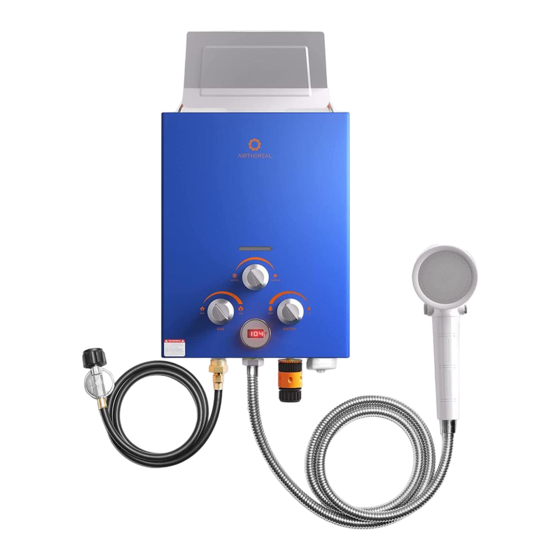

- Page 1 Evenfall EVF6BL/EVF6YL Portable Propane Tankless Water Heater for Outdoor READ AND SAVE THESE INSTRUCTIONS...
-
Page 2: Table Of Contents
CONTENTS IMPORTANT SAFETY INSTRUCTIONS SPECIFICATIONS COMPONENTS INSTALLATION INSTRUCTIONS USE AND STARTING COMMON ISSUES WITH SOLUTIONS CARE AND MAINTENANCE LIMITED WARRANTY... -
Page 3: Important Safety Instructions
IMPORTANT SAFETY INSTRUCTIONS Read All Instructions Before Using Be sure to read and understand the entire user manual before attempting to install or operate this water heater. Pay particular attention to the Safety Instructions. Failure to follow these warnings could result in serious bodily injury or death. - Page 4 Do not leave unattended. ● The exhaust gas and top of the portable tankless water heater is HOT! Do not place hands or any ● object near the top of the heater. This water heater is only intended for use with non-potable water (such as a portable shower). Do ●...
- Page 5 DANGER Properly install water heater Failure to properly install the water heater outdoors as outlined in the Installation Instructions in ● this manual can result in unsafe operation of the water heater. To avoid the risk of fire, explosion, or asphyxiation from carbon monoxide, never operate this ●...
-
Page 6: Specifications
SPECIFICATIONS Model EVF6BL/EVF6YL LPG PROPANE Fuel Type Max Input Rating 41,000 Btu/hr 1.58 GPM Flow Rate Water Pressure Range 2.2 - 116 PSI (15 - 800 kPa) Inlet Gas Pressure 11” w.c. (2.74 kPa) Electric pulse, size D battery powered Ignition (No electrical connection required) Time Setting... -
Page 7: Installation Instructions
INSTALLATION INSTRUCTIONS Check the carton box for damage. Damages caused in shipment must be reported immediately. Make sure you have all the parts. NOTE: Included parts and accessories may vary depending on country and regulations. In The Box Item Description Identification Quantity Outdoor portable tankless gas... - Page 8 Preparation ONLY USE IN OUTDOOR AREAS. CARBON MONOXIDE HAZARD-USING THIS APPLIANCE IN AN ENCLOSED SPACE WILL CAUSE DEATH-DO NOT USE IN CARAVANS, TENTS, MARINE CRAFT, CARS, MOBILE HOMES OR SIMILAR LOCATIONS. 1. Use appliance only with LP (propane) gas and the regulator valve assembly supplied. Note: LP gas supply cylinders to be used must be: Constructed and marked in accordance with the specifications for LP gas cylinders of the Tubes...
- Page 9 4. Install 2 size D batteries (NOT included) in the battery box on the bottom of the appliance. Make sure the batteries are facing the correct direction. Negative Outward Positive Outward Water Supply Installation 1. Before attaching the water line to the water heater, run the water until it has purged all contaminants (sand, debris, air, caulking, etc).
- Page 10 3. Water outlet : Attach the water output device (shower head) to the fitting marked “Water outlet”. DO NOT OVER ● TIGHTEN! Tighten by hand only. (The shower hose already comes with gaskets inside, extra gaskets are available as a spare.) Gas Connecting WARNING: Never use an open flame to test for gas leaks, because death, personal injury and/or property damage can result.
-
Page 11: Use And Starting
Note: This appliance shall only be connected to a 20lb (Size 1: φ12 5/16″ *H17 5/16″; ● Size 2: φ11 13/16″ *H17 7/16″;) cylinder with a POL cylinder valve certified to CAN/CSA-B339. The LP-gas cylinder(s) must be constructed and marked in accordance with the specifications for Cylinders, Spheres, and Tubes for the Transportation of Dangerous Goods, CSA B339. - Page 12 8. Turn your water output device to the “on” position and adjust to the desired water flow. 9. There will be a series of audible clicks and the burner will ignite. Please take note the water heater must not be exposed to flammable vapors or liquids during lighting. Should the burner not ignite after 5 seconds, shut off and go to the “Troubleshooting”...
-
Page 13: Common Issues With Solutions
COMMON ISSUES WITH SOLUTIONS Issue Indication Solution The water heater emits Water knob is restricted Turn water knob counter clockwise. a loud sound on ignition Turn water knob counter clockwise. Water knob is restricted Noisy upon ignition Gas pressure high Service call. -
Page 14: Care And Maintenance
Issue Indication Solution The portable tankless water heater Water pressure is low requires a minimum flow of about 2.2 PSI/15 kPa. The valve on the propane tank should be all the way “Open”. Cycle the portable tankless Heater turns off after Out of, or low on gas igniting water heater on and off by using... -
Page 15: Limited Warranty
LIMITED WARRANTY LIMITED WARRANTY Airthereal warrants all Gas Water Heaters for 1 year. For more information please visit www.airthereal.com/warranty . What’s covered? Defects due to faulty materials and/or workmanship of the product. - Page 16 Always here to help you www.airthereal.com Keep Out Of Reach Of Children Produced for: West Ryder Technology LLC 2330 Paseo Del Prado STE C304 Las Vegas, NV 89102 support@airthereal.com V 20220315...
