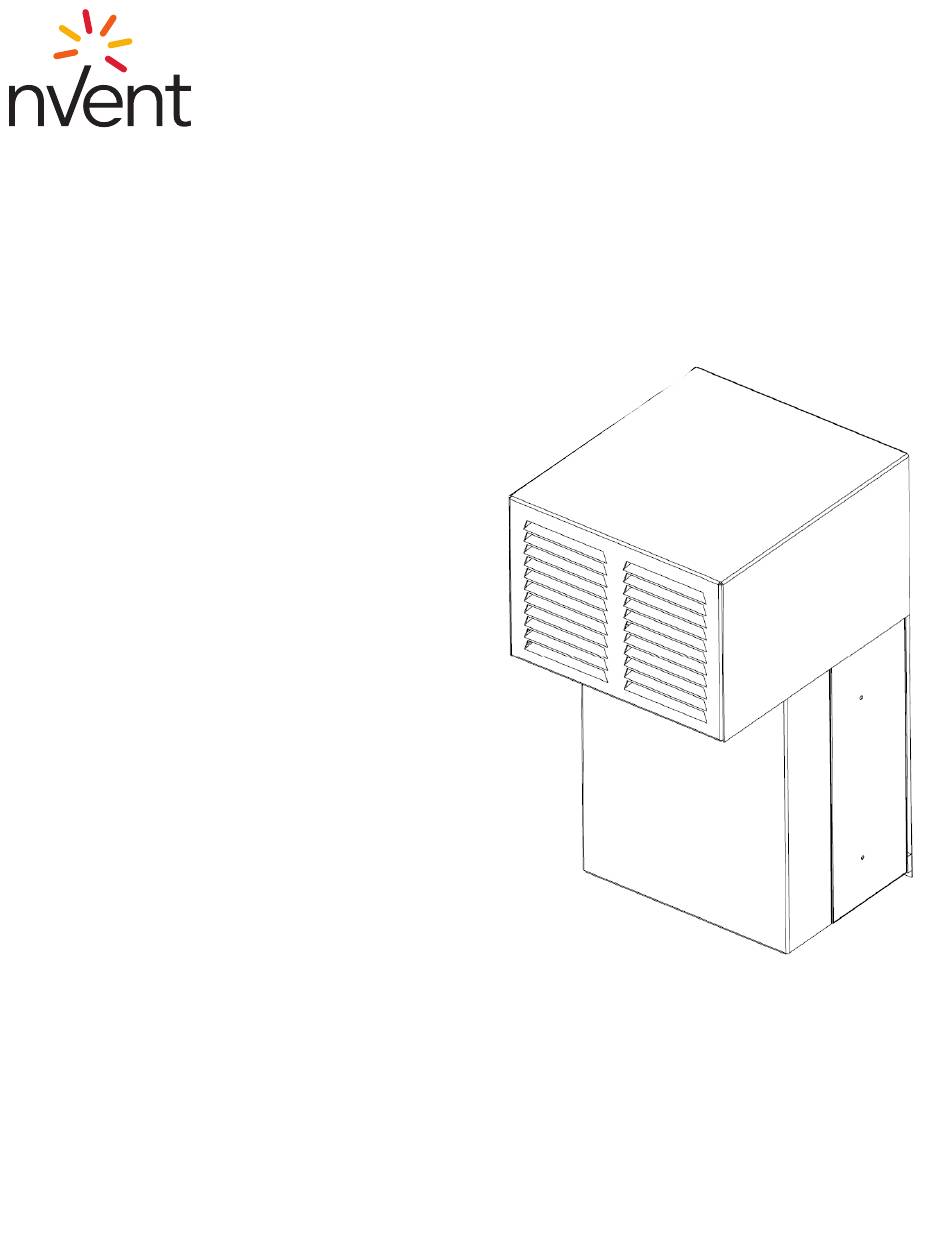

- Page 1 ThermoelecTric cooler Te1601Dc005 INSTRUCTION MANUAL © 2018 nVent 89067230 Rev. B P/N 89067229...
- Page 2 MAINTENANCE ....................................7 NOTE: Some of the information in this manual may not apply if a special unit was ordered. If additional drawings for a special unit are necessary, they have been inserted. Contact nVent Equipment Protection if further information is required.
- Page 3 Damage evident upon receipt should be noted on the freight bill. Damage should be brought to the attention of the delivering carrier -- NOT to nVent Technical Products -- within 15 days of delivery. Save the carton and packing material and request an inspection. Then file a claim with the delivering carrier.
- Page 4 6 inches. 6. Refer to top of nameplate for electrical requirements. Connect the power cord to a properly grounded power supply. TE1601DC005 DESIGN DATA Nominal Cooling/ Max Amb Shipping Weight...
- Page 5 MOUNTING CUTOUT DIMENSIONS COMPONENTS LIST Part Description Part Number Enclosure Impeller 10-1091-171 Ambient Fan 12-1012-48 Power Harness 09-3016-045 Alarm/Serial Harness 09-3016-044 © 2018 nVent 89067230 - 5 -...
- Page 6 WIRING DIAGRAM FILTER DIVIDER BOARD ALARM/SERIAL HARNESS POWER HARNESS AMBIENT TEMPERATURE ALARM LED FAN ALARM LED AMBIENT THERMISTOR AMBIENT AIR IN THERMISTOR AMBIENT AIR OUT ENCLOSURE IMPELLER THERMISTOR ENCLOSURE AIR IN © 2018 nVent 89067230 - 6 -...
- Page 7 Be aware that frequent opening of the enclosure’s door admits humid air, which the thermoelectric cooler must then dehumidify. MAINTENANCE Beyond occasional inspection for dust or dirt buildup no special maintenance should be required. © 2018 nVent 89067230 - 7 -...
- Page 8 NOTES © 2018 nVent 89067230 - 8 -...
