Page 1: Installation Instructions

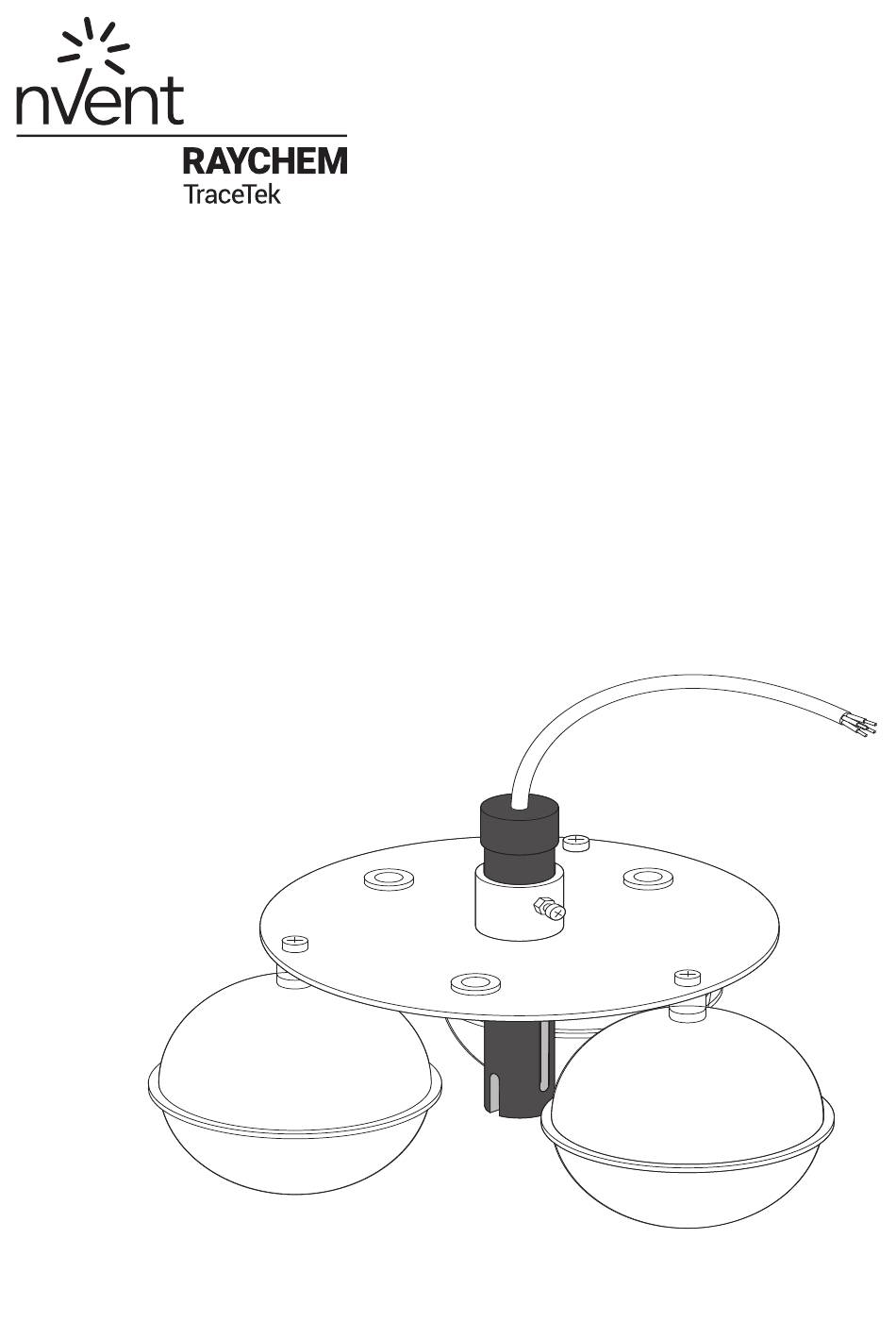

Fast Fuel Sensor and Float Assembly Installation Instructions Before this product is put into use, be sure to read these instructions and become thoroughly acquainted with its contents in order to install and use this product correctly. - Page 2 INTRODUCTION This document explains the procedure for installing nVent RAYCHEM TraceTek Fast Fuel Sensor, float assembly (part numbers 1244- 004251 FLOAT-ASS-1M-LC-G1 and 1244-004252 FLOAT-ASS-2M-LC-G2) and associated wiring in order. Be sure to carefully read this document in order to become thoroughly acquainted with its contents before installation.
- Page 3 When wiring via relay wiring (0.5mm four-core cab tire cable). Zener Barrier (MTL-7167 +2 unit) Green Green Monitor Yellow Yellow Black Black Relay Wiring Class A grounding operation Green Green Cable from sensor Yellow Yellow Black Black Junction Box nVent.com | 3...
- Page 4 ©2018 nVent. All nVent marks and logos are owned or licensed by nVent Services GmbH or its affiliates. All other trademarks are the property of their respective owners. nVent reserves the right to change specifications without notice. RaychemTraceTek-IM-INST319-LeakDetection-EN-1805...
