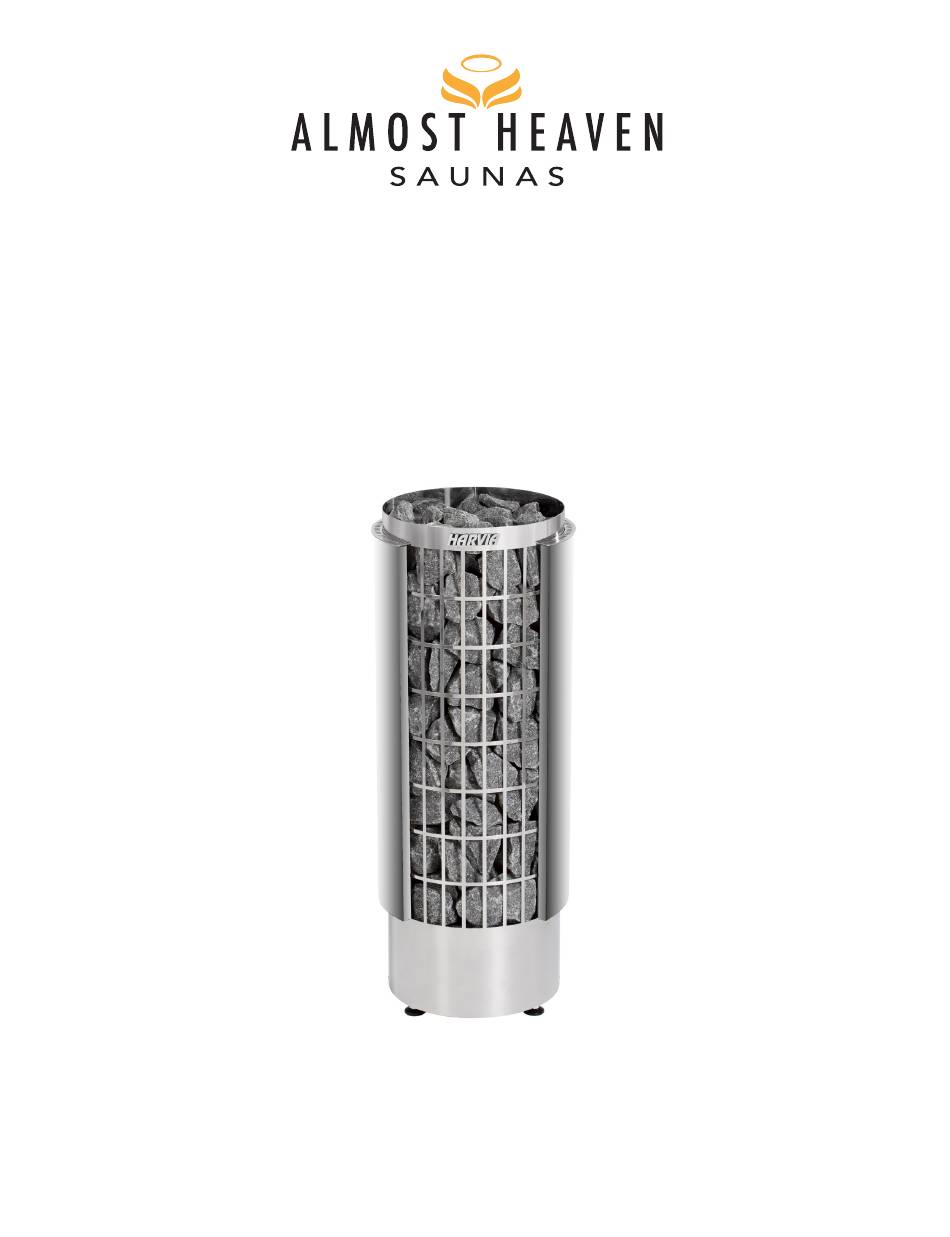

- Page 1 Cilindro Xenio Heater Installation & Owner’s Manual This guide should be used in conjunction with the manufacturer’s heater manual found inside the heater box. Please be sure you and your electrician review both before installation. Revised 8.10.22...
- Page 2 Refer to this guide for installation and operation instructions. Please note, a licensed electrician should perform all electrical work. Almost Heaven Saunas staff is available to assist with any questions you or your electrician may have. Please call us at 888- 355-3050 for technical assistance.
- Page 3 The image at the left is an example of an enclosure. Alternatively, you can purchase a longer temperature sensor wire directly from Almost Heaven Saunas. CILINDRO HEATER INSTALLATION MANUAL...
- Page 4 Touchpad • The touchpad should be mounted indoors. • The touchpad connects to the power unit with the provided 20’ data cable. If you need a longer data cable for your application, you may purchase one directly from Almost Heaven Saunas. CONNECTING YOUR HEATER TO POWER Please note, the power unit provided with your sauna is rated for single-group connection. The instructions below are for single- group connections only.
- Page 5 Outgoing Power Next, you’ll want to relay power to the heater itself. Remove the terminal block cover (at the back of the heater), and cut out the center of the rubber gasket under the heater - this is where the wire will enter the heater to connect to the terminal block.
- Page 6 It is recommended that you remove the stones once a year, replace any that have cracked or corroded. It is a good idea to rinse these stones at this time, too. You may purchase additional stones from Almost Heaven Saunas CILINDRO HEATER INSTALLATION MANUAL...
- Page 7 OPERATING YOUR HEATER Note: Your touchpad’s default settings are compatible with your heater. No changes are necessary. Immediate Start Turn your breaker on. If everything is connected correctly, the buttons at the bottom of the screen should illuminate. The bottom left button is the main power unit - press it, and you should hear a loud “clunk”...
- Page 8 Cilindro Heater Installation & Owner’s Manual almostheaven.com...
