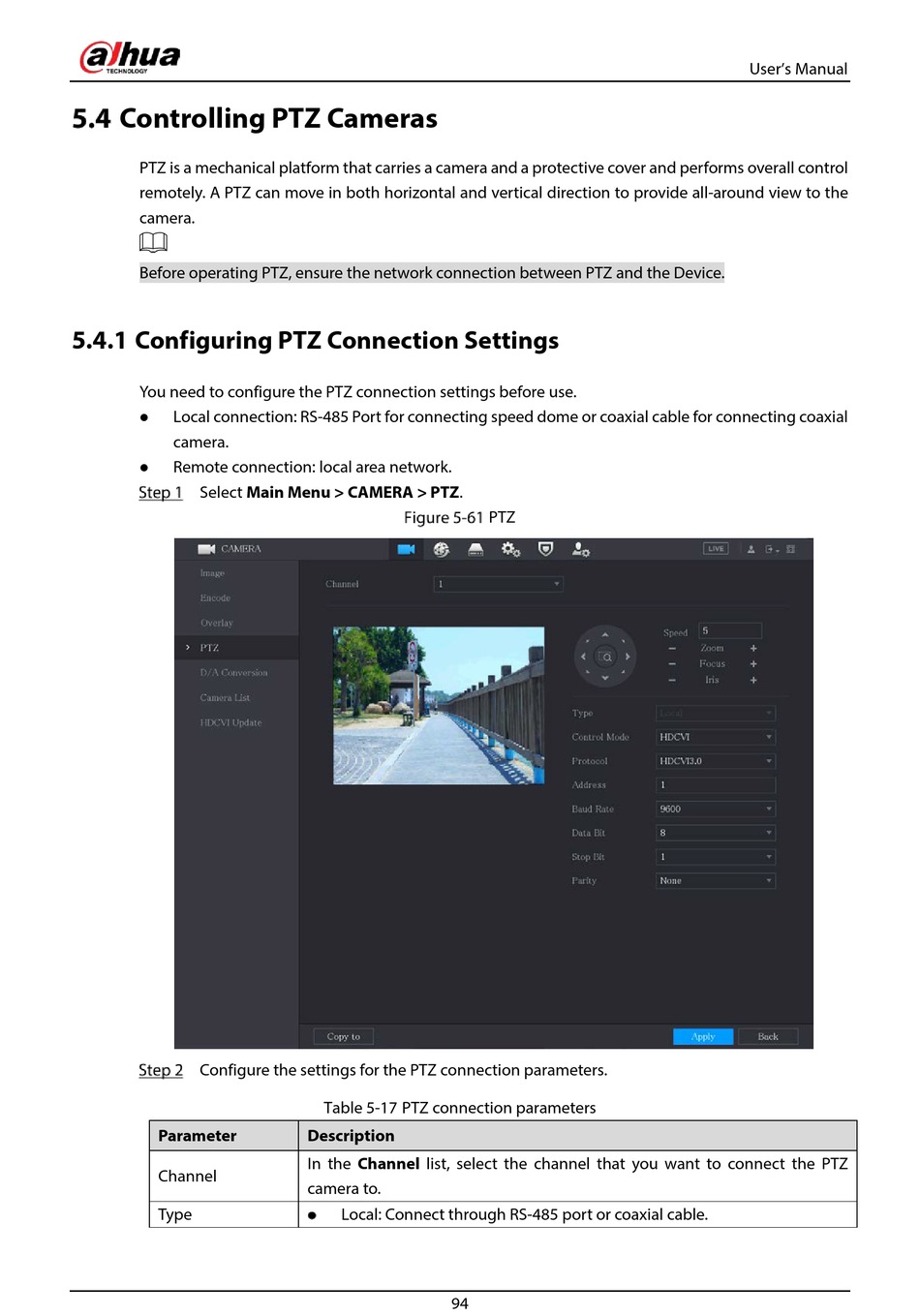

Controlling PTZ Cameras

PTZ is a mechanical platform that carries a camera and a protective cover and performs overall control
remotely. A PTZ can move in both horizontal and vertical direction to provide all-around view to the
camera.
Before operating PTZ, ensure the network connection between PTZ and the Device.

5.4.1 Configuring PTZ Connection Settings

You need to configure the PTZ connection settings before use.
Local connection: RS-485 Port for connecting speed dome or coaxial cable for connecting coaxial

camera.
Remote connection: local area network.

Select Main Menu > CAMERA > PTZ.
Configure the settings for the PTZ connection parameters.
Parameter
Channel
Type
Table 5-17 PTZ connection parameters
Description
In the Channel list, select the channel that you want to connect the PTZ
camera to.
Local: Connect through RS-485 port or coaxial cable.
