Summary of Contents for Teltonika TeltoCharge

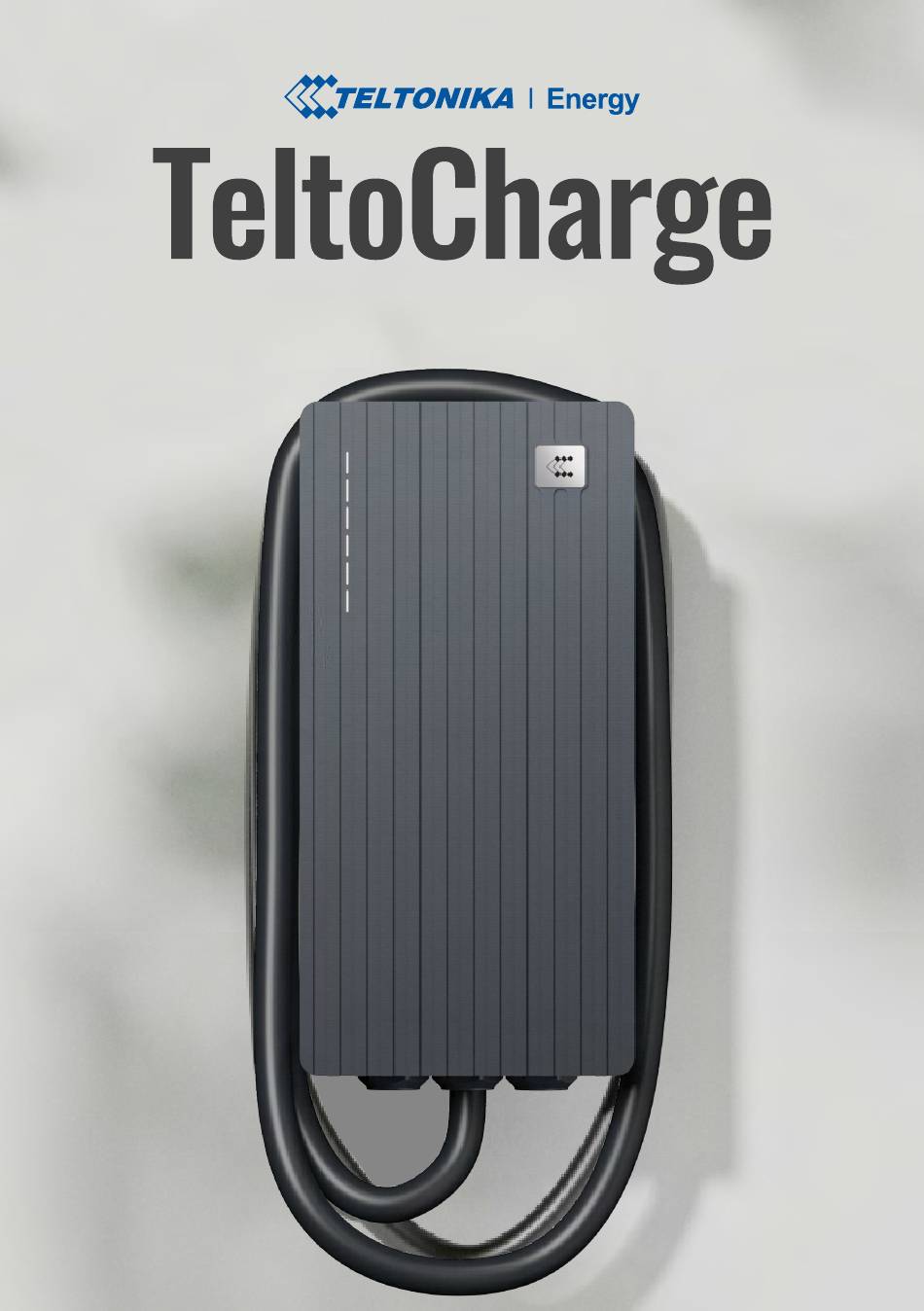

- Page 1 Quick User Guide...
-
Page 2: Table Of Contents
Quick User Guide TeltoCharge Table of Content 1. Get to know your TeltoCharge device 2. Download the Teltonika Energy app 3. Connect the app to TeltoCharge 4. TeltoCharge usage 5. My TeltoCharge device 6. Connect TeltoCharge to a Wifi network 7. -
Page 3: Get To Know Your Teltocharge Device
TeltoCharge TeltoCharge Setup 1. Get to know your TeltoCharge device Congratulations on the purchase of TeltoCharge! Once your device is successfully installed and powered on, follow the instructions in this guide to configure it and start using. Untethered (Type 2 socket) -
Page 4: Connect The App To Teltocharge
10. Select whether you want the charger to request authorization to start charging (recommended). Note. Enabled authorization allows you to pair the NFC card/tag with the charger. The NFC feature enables quick and easy TeltoCharge authorization. 11. Press “Confirm” to finish the TeltoCharge device setup. -
Page 5: Teltocharge Usage
Teltonika Energy app should indicate: "Not charging". Note: All LEDs on your TeltoCharge device should be in white color and pulsing, indicating that the EV is ready to use, but the car is not connected. -
Page 6: My Teltocharge Device
Quick User Guide TeltoCharge 5. My TeltoCharge device When the TeltoCharge device is configured, your app screen should 9:41 feature the following information: Charger type: the image of your TeltoCharge device should be displayed. Connection status: the status “Available” should indicate that the TeltoCharge device is connected to your smart device through a Bluetooth connection. -
Page 7: Understanding The Teltocharge Status Colors
Quick User Guide TeltoCharge 7. Understanding the TeltoCharge status colors When your TeltoCharge device is powered on, you can quickly and easily check the status of your device by referring to the LED lights display and/or Teltonika Energy App: 9:41... - Page 8 Quick User Guide TeltoCharge 9:41 Green - LEDs Charging is in process light up upwards from the bottom Green - all Charging is complete LEDs are on Red - all LEDs Faulty connection to an EV has been pulsing detected...
-
Page 9: Schedule Charging Sessions
Schedule your EV charging when the power consumption of your household is the cheapest or it is the most convenient for you. 1. To set a charging schedule, launch the Teltonika 9:41 Energy app on your smart device. Select your connected charger, go to “Settings”... -
Page 10: Usage Data
Quick User Guide TeltoCharge 10. Usage data To view your TeltoCharge usage data you can refer to: 9:41 9:41 9:41 Current session overview Full usage data report Here you will see information of Here you will find the historical data of all your your current charging session: charging sessions. -
Page 11: Connectivity
Quick User Guide TeltoCharge Connectivity In addition to Bluetooth and WiFi, TeltoCharge has two more connectivity types: Mobile data Ethernet There is also a possibility to connect to the 3 party cloud. 1. To connect to any of connectivity types, select “Connectivity”... -
Page 12: Charging Authorization
Teltonika Energy App Toggle the "off" button to disable authorization. The charger will not require authorization to start charging (not recommended, especially if the TeltoCharge device is installed in a publicly available place where anyone can use it). NFC card/tag management Quickly add your NFC card/tag 1. -
Page 13: Update Or Remove The Nfc Card/Tag
Quick User Guide TeltoCharge Update or remove the NFC card/tag 9:41 To remove the NFC To update the NFC card/tag: card/tag settings: 1. Click on the NFC card/tag 1. Click on the NFC you wish to remove card/tag you wish to 2. -
Page 14: Device Reboot
Quick User Guide TeltoCharge 9:41 Device Reboot Choose "Reboot device" if you wish to reboot your TeltoCharge device. -
Page 15: All Led Indicators
Quick User Guide TeltoCharge All LED Indicators IMPORTANT: Some electric vehicles may use a simplified control pilot circuit. Depending on the case, the indication for charge done can be either green or blue color (with all lights on). Yellow - LEDs pulsing... -
Page 16: Troubleshooting
D error - check cable connection, disconnect it, inspect socket for damage or foreign objects and reconnect. A, B, C, or F errors - try to reboot your TeltoCharge device, if it does not help, make sure your power grid is not overloaded. - Page 17 Quick User Guide www.teltonika-energy.com...
