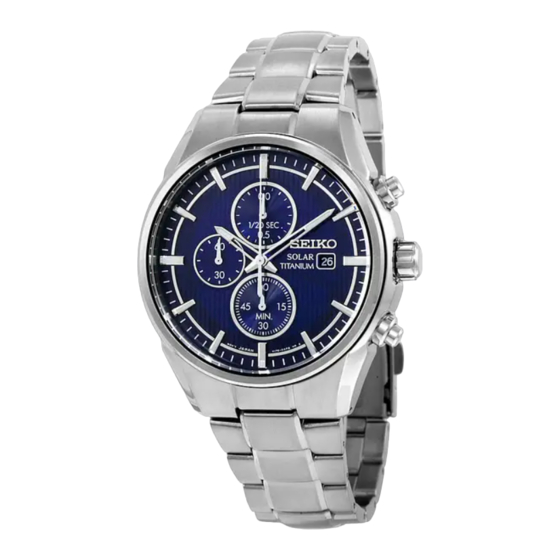

V172 / V174 / V175 / V176
D-5
BSBV17C-A1902
そのほかの言語の取扱説明書は、パソコンや
スマートフォンから当社ホームページ内の
「カスタマーサービス」 > 「取扱説明書ダウンロード」
にアクセスいただき、ご覧ください。
V172 / V174 / V175 / V176
SOLAR CHRONOGRAPH
日本語 ..................................................
English ................................................
Please refer to the Instruction Manuals
of other languages by accessing
"Customer Service"→ "Instruction"
on our Website from PC or Smartphone.
Deutsch / Français / Italiano / Español /
Pусский язык /
/ Português /
/
/
/
https://www.seikowatches.com/
INSTRUCTIONS
1
JA
1
EN
Advertisement
Table of Contents
Related Manuals for Seiko V176
Summary of Contents for Seiko V176
- Page 1 V172 / V174 / V175 / V176 BSBV17C-A1902 V172 / V174 / V175 / V176 SOLAR CHRONOGRAPH INSTRUCTIONS 日本語 ..........English ..........Please refer to the Instruction Manuals そのほかの言語の取扱説明書は、パソコンや of other languages by accessing スマートフォンから当社ホームページ内の "Customer Service"→ "Instruction" 「カスタマーサービス」 > 「取扱説明書ダウンロード」...
-
Page 2: Table Of Contents
If you cannot have your watch repaired by the retailer from whom the watch was purchased because you received the watch as a gift, or you moved to a distant place, please contact SEIKO CUSTOMER SERVICE CENTER. The service may also be available on a chargeable basis at other retailers, however, some retailers may not undertake the service. -
Page 3: Handling Cautions
○ If the watch body or band becomes edged by corrosion etc. electricity ○ If the pins protrude from the band. * Immediately consult the retailer from whom the watch was purchased or SEIKO CUSTOMER SERVICE If you observe any allergic symptoms or skin irritation CENTER. -
Page 4: Characteristics
• A full-scale stopwatch, which can measure in 1/5-second increments (V172, V174, V175) or 1/20-second The case back shows the caliber and performance of your watch. increments (V176) with the center hand, is equipped. “Performance and type” → P.43 • A solar cell under the dial converts any form of light into “electrical energy” to operate the watch. -
Page 5: V174: Equipped With A Stopwatch, Alarm And 24-Hour Hand
Date a Date * Some models may not have a tachymeter. * Some models may not have a tachymeter. ■ V176: Equipped with a stopwatch Crown 1 Stopwatch 8 Button A There are two types of crowns, a normal crown and a screw down crown. -
Page 6: Compass (Only For Models With The Compass Inner Ring)
It is recommended to set the minute hand two minutes ahead of the correct time (proceed to operation of the procedure 6). ● If you own model V175 or V176: Continue to procedure 7. * If you do not know the caliber number of your watch: The caliber number shows your watch type. “Performance... -
Page 7: Manual Date Adjustment At The End Of The Month
The stopwatch can measure up to 60 minutes in 1/5-second increments (V172, V174, V175) or 1 Stopwatch 1/5-second hand 1/20-second increments (V176). After measuring 60 minutes, the stopwatch hands will moves in 1/5-second increments automatically stop at the 0 minute 0 second position. -
Page 8: The Names Of The Parts And Functions Of The Stopwatch (V176)
<Notes on the movement of the stopwatch 1/20 second hand> • After the stopwatch is started, the stopwatch 1/20 second hand moves for about 1 minute and (V176) automatically stops at “0” position. • When split time is measured or the measurement is stopped, it moves to indicate the elapsed 1/20 seconds. -
Page 9: How To Use The Stopwatch
How to use the stopwatch • Accumulated elapsed time measurement Ex. Measuring the time for a soccer match Start Stop Start Stop Reset * When the seconds hand is moving at two-second intervals, the stopwatch cannot be operated. “About energy” → P.39 •... -
Page 10: How To Use The Tachymeter
• How to measure kilometers / hour hand (V172, V174, V175) or seconds hand (V176) is pointing to. Measure the time (within 1 minute) it takes to run 1 km. Ex. : If it takes 20 seconds to complete one Read the number on the tachymeter product...180 products/hour... -
Page 11: How To Stop The Alarm
■ How to stop the alarm Charging the battery • The alarm sounds for 20 seconds at the set alarm time. ■ How to charge the battery • For stopping the sounding alarm, press button A or B. * While the stopwatch hands are moving, the alarm sounds differently than the normal alarm sound. This is not a Expose the dial to light to charge the watch. -
Page 12: Power Source
Power Source * Overcharge prevention function When the secondary battery is fully charged, the overcharge prevention function is automatically activated to avoid further charging. The battery used in this watch is a special secondary battery, which is different from ordinary There is no need to worry about damage caused by overcharging no matter how much the batteries. -
Page 13: Lumibrite
Lumibrite Water resistant performance If your watch has Lumibrite Refer the table below for the description of water resistant performance of your watch before using. (Please look at P.43.) Lumibrite is a luminous paint that absorbs the light energy of sunlight and lighting apparatuses in a short time and stores it to emit light in the dark. -
Page 14: Band
● Leather band Band • A leather band is susceptible to discoloration and deterioration from moisture, sweat and direct sunlight. • Wipe off moisture and sweat as soon as possible by gently blotting them up with a dry cloth. The band touches the skin directly and becomes dirty with sweat or dust. Therefore, lack of care •... - Page 15 B Type C Type While pressing the push buttons on both sides Remove the pin from the adjustment hole. of the flap, lift to open the clasp. Slide the band left and right, and insert the pin ● How to wear or take off the watch into the adjustment hole at an appropriate Push button length.
-
Page 16: After Sales Service
According to use conditions, the oil retaining condition of your watch mechanical parts may deteriorate, abrasion of the parts may occur due to contamination of oil, which may ultimately lead the • Contact the retailer from whom the watch was purchased or SEIKO CUSTOMER SERVICE CENTER watch itself to stop. - Page 17 5 ■ Adjusting the preliminary position of the stopwatch Push the crown back in to the normal 1/20-second, second and minute hands (V176) position. Make sure that the watch is working. Check that the seconds hand is moving at one-second intervals.
-
Page 18: Troubleshooting
Press and hold button A (for 3 seconds) Press and hold button A (for 3 seconds) until the stopwatch 1/20-second hand until the stopwatch second hand starts Press and Press and hold button A hold button A starts moving. moving. for 3 seconds for 3 seconds The stopwatch 1/20-second hand moves one full... -
Page 19: Adjusting The Preliminary Position Of The Stopwatch Hands
Troubles Possible causes Solutions Reference Troubles Possible causes Solutions Reference If the watch returns to room Although the temperature, the accuracy will return alarm time has not The watch has been left in extremely to its original state. been set, the high or low temperatures for a long If it does not return to its original displayed alarm... -
Page 20: Specifications
Specifications Caliber number V172 V174 V175 V176 Main time with 3 hands Main time with 3 hands (hour, minute, second) Main time with 3 hands Main time with 3 hands (hour, minute, second) 24-hour hand (hour, minute, second) (hour, minute, second)
