ARC WBT-913 Manual

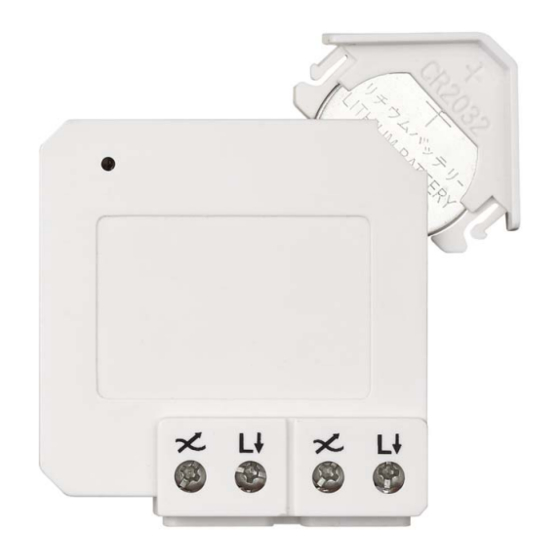

Wireless 2 channel wall switch module
Hide thumbs
1
2
3
4
5
Table of Contents

Advertisement

Quick Links

Download this manual

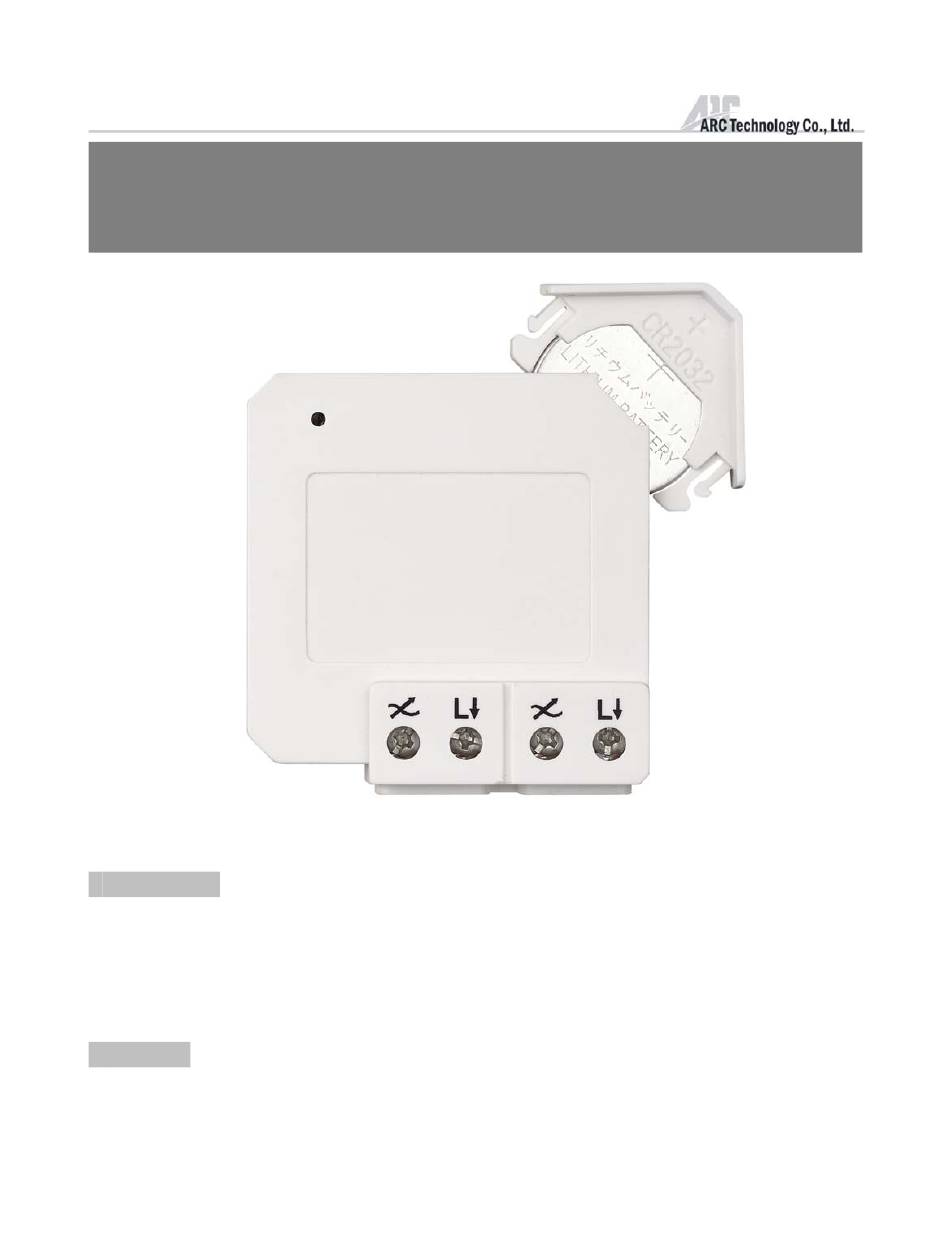

Wireless 2 Channel Wall Switch Module
S
pecification:
Function:
On / Off / Dimmer
Frequency:
433.92MHz
Battery:
3V CR2032 lithium cell battery (included)
Input Rating: 220V- 240V AC / 50Hz
O
verview:
Adding extra feature to your existing wired light switch.
Install behind a wall switch to control extra load without worrying to add another wall switch.
Wireless transmission is via 3V CR2032 lithium cell battery.
WBT-913
Version 1.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the WBT-913 and is the answer not in the manual?

Questions and answers

Related Manuals for ARC WBT-913

Summary of Contents for ARC WBT-913

  • Page 1 Wireless 2 Channel Wall Switch Module WBT-913 pecification: Function: On / Off / Dimmer Frequency: 433.92MHz Battery: 3V CR2032 lithium cell battery (included) Input Rating: 220V- 240V AC / 50Hz verview: Adding extra feature to your existing wired light switch.
  • Page 2 pplication and Wiring: Switch OFF the mains power before performing any installation. Connect the module accordingly to diagram below. Connecting to 1 channel Wire ‘Live’ intro “L↓” terminal of module. Wire ‘ ’ intro ‘ ’ terminal of module. Then wire ‘L↓’ into light switch ‘L’. Wire ‘...
  • Page 3 You can now control your wired lighting and at the same time controlling extra lighting wirelessly. Connecting to 2 channel Wire ‘Live’ intro “L↓” each terminal of module. Wire ‘ ’ intro ‘ ’ each terminal of module. Then wire ‘L↓’ together then wire into light switch ‘L’. Switch 1: Wire ‘...
  • Page 4 Switch 2: Wire ‘ ’ intro S1 output port ‘L1’ of the light switch. aring: Pairing using LEARNING MODE: 1. First choose the desired receiver(s) that you wish to control. 2. Press the ‘Learn’ button once (LED will flash), this will now enter learning mode. 3.
  • Page 5 2. On the wall switch press the ‘OFF’ button intended to be unpaired; the load will flash twice to confirm that the wall switch is now unpaired. peration: ON/OFF Function: Press the ‘ON’ button on wall switch, the lights will gradually illuminate. Press the ‘OFF’...
