ARC IPT-1502 Manual

Ip44 outdoor wireless wall switch

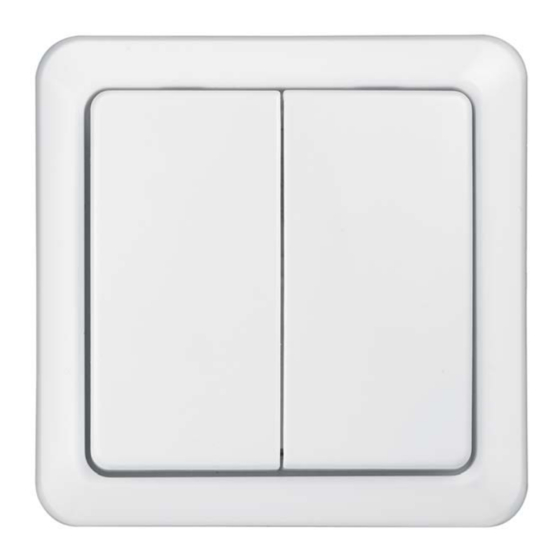

IP44 Outdoor Wireless Wall Switch

pecification:

Waterproof Rating: IP44

Function:

On / Off / Dimmer

Frequency:

433.92MHz

Battery:

1 x 3V CR2032 Lithium Battery

verview:

Outdoor waterproof IP44 rated 2 channel wireless wall switch.

For controlling ON / OFF receivers and dimmer receivers.

Easy installations with either screw fix into current wall box or affix any location with adhesive tape.

IPT-1502

Version 2.

Table of Contents

Need help?

Do you have a question about the IPT-1502 and is the answer not in the manual?

Page 1 IP44 Outdoor Wireless Wall Switch IPT-1502 pecification: Waterproof Rating: IP44 Function: On / Off / Dimmer Frequency: 433.92MHz Battery: 1 x 3V CR2032 Lithium Battery verview: Outdoor waterproof IP44 rated 2 channel wireless wall switch. For controlling ON / OFF receivers and dimmer receivers.
Page 2 nstallation: 1. Push top button and with a ‘—‘ screw driver insert into slot and lift open top rocker cabinet. 2. Insert ‘—‘ screw driver into bottom slot and gently lift up to remove the outer frame. 3. Remove silicon rubber cover. Version 2.
Page 3 4. Affix wall switch with 2 screws onto wall surface. 5. Cover back silicon rubber, make sure to firmly press and align the rubber to completely cover the top surface. aring: Pairing using LEARNING MODE: 1. First choose the desired receiver(s) that you wish to control. 2.
Page 4 will now enter learning mode. 2. On the wall switch press the ‘OFF’ button intended to be unpaired; the load will flash twice to confirm that the wall switch is now unpaired. peration: ON/OFF Function: Press the ‘ON’ button on wall switch, the lights will gradually illuminate. Press the ‘OFF’...
Page 5 roubleshoot: Problem: I cannot pair my wall switch with the receiver. Solution 1: The memory on receiver is full, please delete one or more memory and try pairing again. Solution 2: Replace a fresh new battery. Version 2.
