Wireless 2 Channel Wall Switch Module
S
pecification:
Function:
On / Off / Dimmer
Frequency:
433.92MHz
Battery:
3V CR2032 lithium cell battery (included)
O
verview:
This unique transmitter module allows you to combine with any light switch and install in an empty
standard wall box, DC type, dry contact without any 230V wiring.
You can have the desire to keep your original wall switch.
WBT-912
Version 1.
Advertisement
Table of Contents
Related Manuals for ARC WBT-912
Summary of Contents for ARC WBT-912

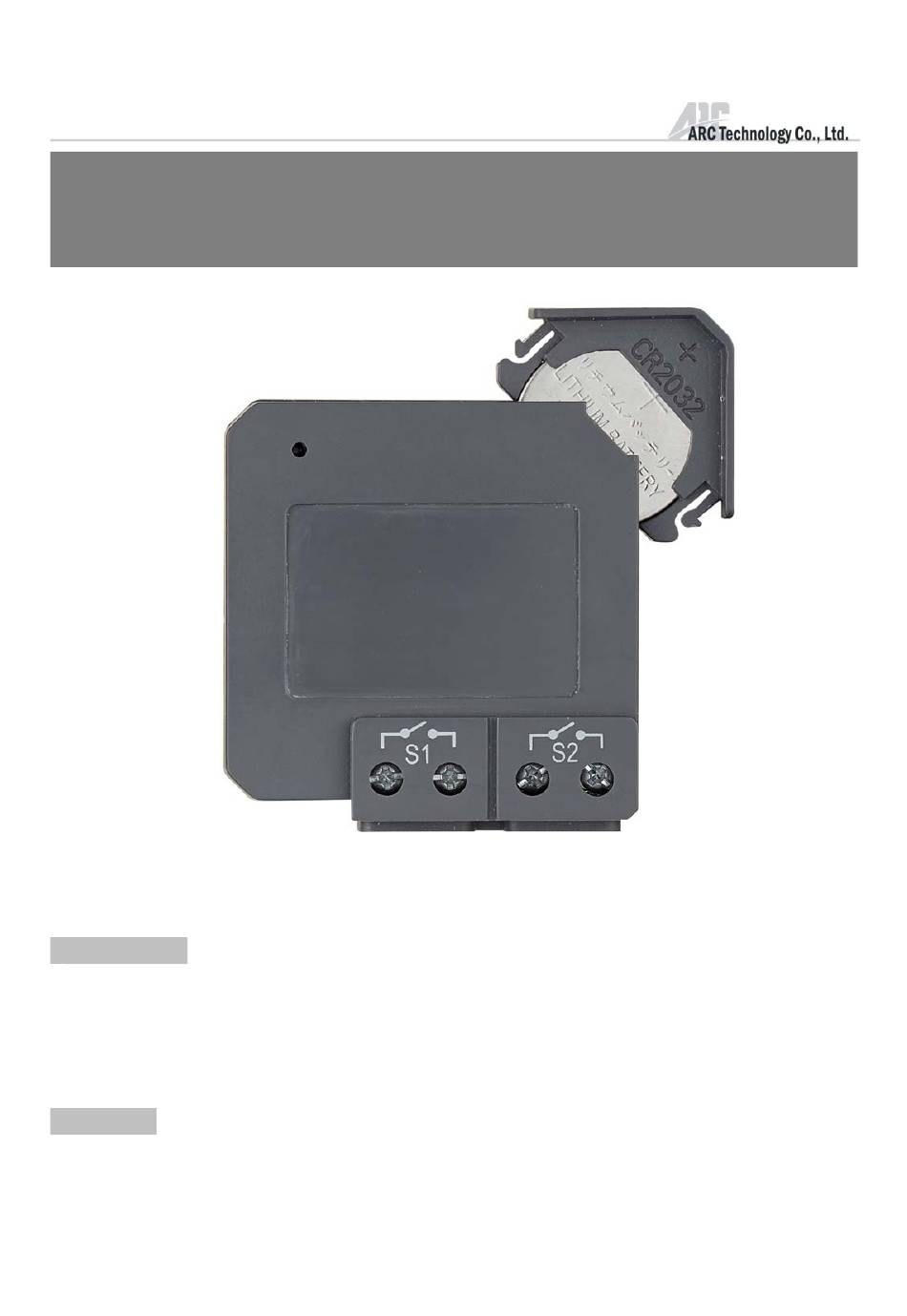

- Page 1 Wireless 2 Channel Wall Switch Module WBT-912 pecification: Function: On / Off / Dimmer Frequency: 433.92MHz Battery: 3V CR2032 lithium cell battery (included) verview: This unique transmitter module allows you to combine with any light switch and install in an empty standard wall box, DC type, dry contact without any 230V wiring.
- Page 2 pplication and Wiring: Connecting to 1 channel Install behind a wall switch. Do not connect to mains power, only connect the wall switch with the grey cables of the wall switch module. First time wiring an ON signal will be transmitted and the LED will light up. To complete the pairing process please refer to below ‘Pairing Section’.
- Page 3 Connecting to 2 channel The wall switch module has 2 separate channels, this way you can use both buttons of the wall switch separately. Install behind a wall switch. Do not connect to mains power, only connect the wall switch with the grey cables of the wall switch module.
- Page 4 aring: Pairing using LEARNING MODE: 1. First choose the desired receiver(s) that you wish to control. 2. Press the ‘Learn’ button once (LED will flash), this will now enter learning mode. 3. On the wall switch press the ‘ON’ button intended to be paired; the load will flash twice to confirm that the remote control is now paired.
- Page 5 ON again. 2. Two way switching. You may set up 2 wall switch module for the corridor, this will allow you to switch the same load ON and OFF with 2 different wall switch. It is as simple as pairing the 2 wall switch module to the same receiver. attery Replacement: 3V CR2032 lithium battery is included.
