2. SYSTEM DESCRIPTION

Raymote enables wireless communication capability
for Raypak heating products utilizing the VERSA IC ®
touchscreen controls. From anywhere with Internet
connectivity, users can access boiler, pool or water
heater information, control some functions, and receive
notifications and reminders when the unit needs attention.
This manual describes Raymote components, and the
process of installing, operating, commissioning, and
troubleshooting the Raymote interface.
Raymote can also be added to existing units in the field
utilizing the VERSA IC touchscreen.

3. COMPONENTS

The Raymote interface includes the following components:
1. J-Box Panel Cover - Panel cover with Wi-Fi antenna
opening (MVB and XTherm only)
2. Touchscreen Rear Cover - Shields the electronic
control
3. Antenna Bracket - Supports the Wi-Fi antenna
installation (XVers only)
4. Antenna Bracket - Supports the Wi-Fi antenna
installation (MVB and XTherm only)
5. Antenna Bracket - Support Wi-Fi antenna (XVersL,
XVers with KOR and XFIIRE only)
6. Wi-Fi Antenna - Enhances wireless signal
7. Wi-Fi Module* - Enables Wi-Fi connectivity (mounts
to the back of the VERSA touchscreen)
8. Power Conditioner - Prevents power line interference
11
3
4
6
2
9
10

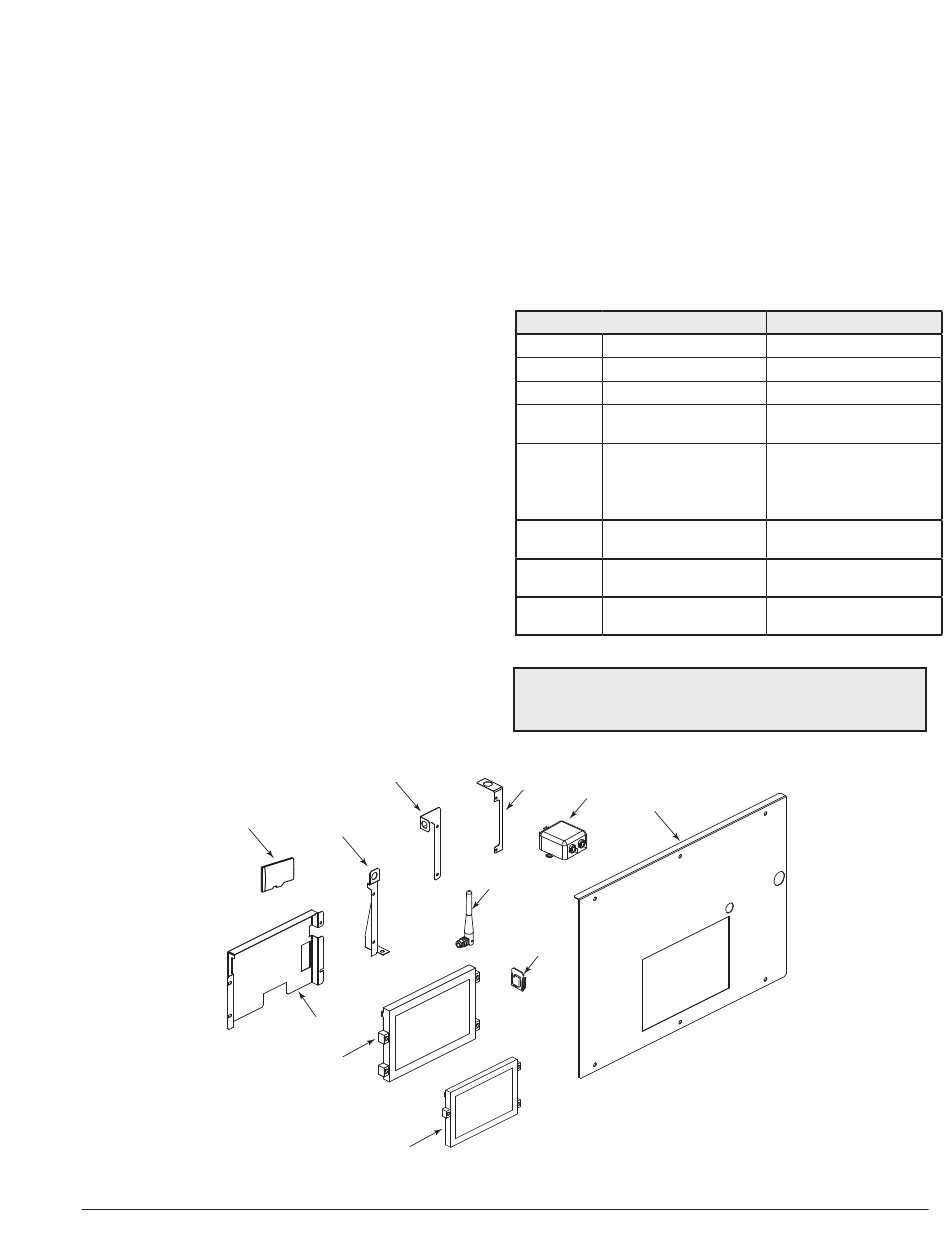

Figure 1. Raymote Components
9. 7" Touchscreen with built-in Wi-Fi Module - Latest
VERSA touchscreen is equipped with a built-in Wi-Fi
module.
10. 4.3" Touchscreen - With built in Wi-Fi module
(XFIIRE and XVERSL only).
11. SD Card - Touchscreen software with Raymote
support (Different SD card are used for 7" and 4.3"
Touchscreen units).

4. SERVICE KITS

The following kits are available for field service:
Service Kits
017198F Swivel Antenna Kit
017199F Wireless Module Kit*
017200F EMI Filter Kit
Touchscreen Rear
017201F
Cover Kit
SD Card for 7"
015887F
Touchscreens
7" Touchscreen with
018438F
built-in Wi-Fi Module
4.3" Touchscreen with
017810F
built-in Wi-Fi Module
SD Card for 4.3"
017811F
Touchscreens
Table A.
NOTE: *Wi-Fi module is only required in legacy
Touchscreens with socket. Latest VERSA Touchscreen
comes with a built-in Wi-Fi module.
5
8
1
7*
Description
Wi-Fi antenna
Wi-Fi module
Power conditioner
Touchscreen rear cover
and bracket
SD Card with Raymote
for XVers, XVers w/
KOR, MVB and
XTherm
Integrated Wi-Fi module
in VERSA Touchscreen
Touchscreen for XFire/
and XVers L
SD Card for XFire and
XVers L only
Service Kits
