- Page 1 MPAGE4 PAGING STATION 4-zone Desktop Paging Station USER MANUAL 50-0230-0101 MPAGE4 EN...
-
Page 2: Table Of Contents
INDEX IMPORTANT REMARK......................3 IMPORTANT SAFETY INSTRUCTIONS ................4 IMPORTANT NOTE ........................5 INTRODUCTION ........................5 INSTALLATION and CONNECTION ..................6 Wiring of RJ-45 connector ....................6 OPERATION ..........................8 FUNCTIONS LIST ........................9 FUNCTIONS DIAGRAM ......................9 TECHNICAL CHARACTERISTICS ..................10... -
Page 3: Important Remark
IMPORTANT REMARK The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of uninsulated “dangerous voltage” within the product’s enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons. The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance. -
Page 4: Important Safety Instructions
IMPORTANT SAFETY INSTRUCTIONS Read these instructions. 2. Keep these instructions. 3. Heed all warnings. 4. Follow all instructions. 5. Do not use this apparatus near water. 6. Clean only with dry cloth. 7. Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions. -
Page 5: Important Note

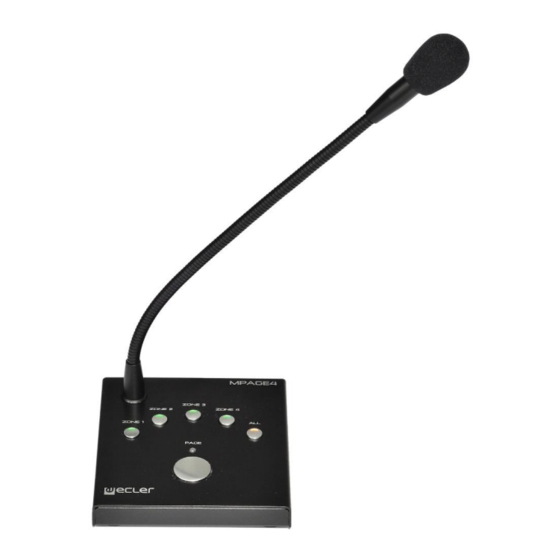

Ecler MPAGE4 comes with a 3-year warranty. INTRODUCTION The MPAGE4 is a desktop paging console compatible with ECLER MIMO54 and DAM614 digital audio matrix. Its keypad, LED indicators and goose-neck microphone allow to select zones being paged, to know if these zones are busy, to capture the voice message and broadcast it in real time to the destination zones. -
Page 6: Installation And Connection
Installing a MPAGE4 unit consists of the following steps: 1. Installation of wiring using a standard CAT5 cable between the BASE connector of the MPAGE4 (7) and the PAGER connector on the rear panel of the MIMO54 / DAM614. Wiring of RJ-45 connector... - Page 7 2. Activation of the carillon melody (optional). With the two CHIME (6) micro- switches on the rear panel of the MPAGE4 it is possible to: deselect the carillon melody (both set to OFF) or select one of three carillon melodies combining the ON and OFF positions (ON-OFF, OFF-ON and ON-ON).
-
Page 8: Operation
OPERATION Once the MPAGE4 unit is connected to the MIMO54 or DAM614, the procedure for sending messages is as follows: 1. Selection of receiving zones by pressing: • keys ZONE 1 to ZONE 4 (3) as desired (if LED indicators are lit it means that the zone is selected) •... -
Page 9: Functions List
FUNCTIONS LIST 1. PAGE key 2. PAGE indicator 3. Zone keys 4. ALL key 5. Goose-neck microphone 6. CHIME selector 7. R-45 connector, PAGER 8. Adjust level of the CHIME carillon melody signal 9. Adjust MIC microphone signal gain FUNCTIONS DIAGRAM CHIME CHIME PAGER... -
Page 10: Technical Characteristics
TECHNICAL CHARACTERISTICS MPAGE4 Microphone type Non removable gooseneck condenser microphone Polar pattern Unidirectional Microphone frequency response 50Hz – 18KHz (-10dB) Output level 0dBV @ 104dB SPL ±7dB (internal adj.) Chime DIP selector for mode 1, 2 or 3 or none...
