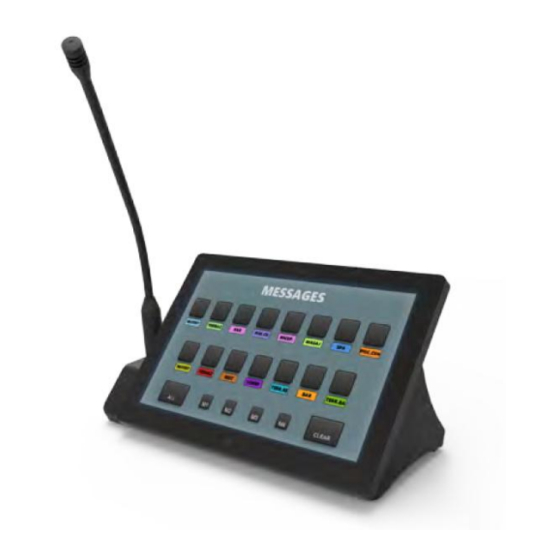

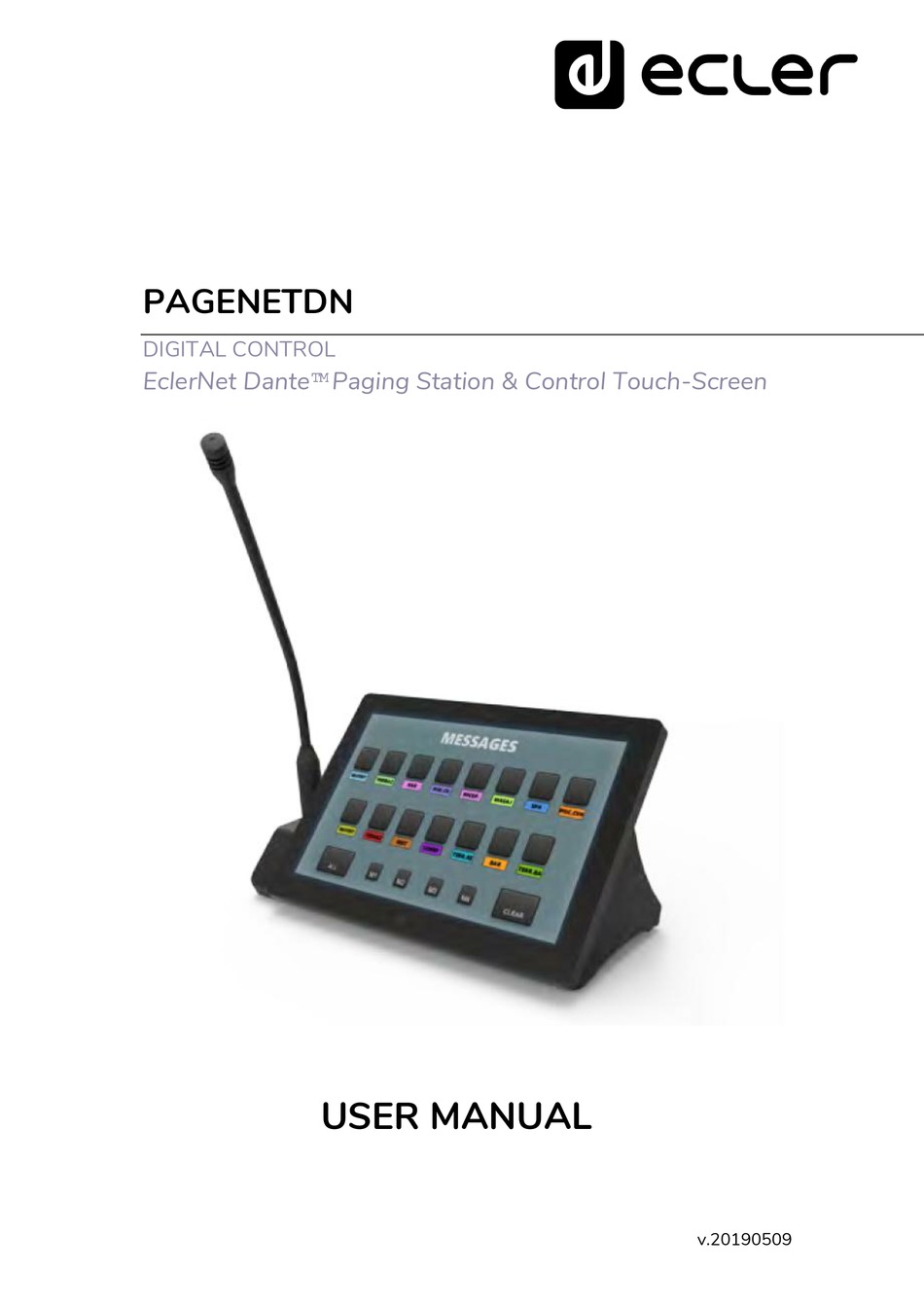

- Page 1 PAGENETDN DIGITAL CONTROL EclerNet Dante™ Paging Station & Control Touch-Screen USER MANUAL v.20190509...
-
Page 2: Table Of Contents
INDEX IMPORTANT REMARK ......................3 IMPORTANT SAFETY INSTRUCTIONS ................3 IMPORTANT NOTE ........................ 5 INTRODUCTION ........................5 4.1. Main features ..........................6 INSTALLATION AND CONNECTIONS ................7 5.1. Installation and wiring ......................7 5.2. Audio Settings ..........................8 OPERATION ..........................9 LOCAL CONFIGURATION OF THE UNIT ................. -
Page 3: Important Remark
1. IMPORTANT REMARK The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of uninsulated “dangerous voltage” within the product’s enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons. The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance. - Page 4 8. Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat. 9. Do not defeat the safety purpose of the polarized or grounding type plug. A polarized plug has two blades with one wider than the other. A grounding type plug has two blades and a third grounding prong.
-
Page 5: Important Note
Refer to the EclerNet Manager Application manual for more information. The EclerNet Manager application is available for download at www.ecler.com. It comes with a desktop console design, including a gooseneck microphone and a 10” capacitive touch screen panel that can show and manage the User Control Panels for paging and for the control of networked EclerNet devices, VEO video devices and third- party devices. -
Page 6: Main Features
4.1. Main features Digital touchscreen embedded control panel, including the same features as the WPNETTOUCH device: o 10.1” IPS display (1280 x 800 pixels) o Capacitive & multitouch touch panel PoE DC supply compatible External power supply compatible: external & universal PSU included + multi- plug AC set ... -
Page 7: Installation And Connections
5. INSTALLATION AND CONNECTIONS 5.1. Installation and wiring Before programming and using it, the PAGENETDN unit must be connected to the network, by means of its internal RJ45 ETHERNET interface. This one, and the rest of connectors, are available unscrewing the bottom metal plate of the unit (3 screws must be removed). -
Page 8: Audio Settings
LINE signal, later converted to mono and to Dante ch #2 (*) Note : the microphone XLR connector admits standard XLR microphones to be used, like the Ecler eMCN1 supplied with the unit, but it can’t hold those with the base thicker than the standard XLR size:... -
Page 9: Operation
6. OPERATION PAGENET must be properly included in an EclerNet project, and configured (regarding Dante™ audio routing and / or control features) to finally show the UCP paging and control panels that the end user will have available. Examples:... - Page 10 PAGENETDN Please, refer to EclerNet Manager application user manual, chapter DEVICE , for further information.
-
Page 11: Local Configuration Of The Unit
7. LOCAL CONFIGURATION OF THE UNIT PAGENETDN settings and configuration menus can be accessed locally from the touch screen of the device itself. These menus are exactly the same as the ones available for the WPNETTOUCH device, as it really includes a WPNETTOUCH unit in it. The same settings are remotely accessible when the unit is under the control of a remote computer running the EclerNet Manager application. -
Page 12: Screen Configuration Menu
7.1. Screen Configuration menu This menu allows setting different parameters affecting the displayed items and controls on the screen of the unit: Display mode: behavior of the screen dimming in sleep state, after 10 seconds of user inactivity on the touch screen. The available modes are: ON (always lit), DIMMED and OFF (unlit) ... - Page 13 Show Panel OSD Buttons: enables/disables the superimposed display of the navigation buttons in the corners of the displayed UCPs. The top corner buttons can scroll the panel pages (left and right) and the bottom corner buttons access the icon bar: Note: even when the buttons are not displayed, they can still be active, so that pressing the top corners activates the horizontal scrolling between the panel...
-
Page 14: Device Configuration Menu
7.2. Device Configuration menu This menu allows adjusting the following parameters of the unit: Device Name: name of the device, as seen from other WPNETTOUCH / WPmSCREEN devices, as well as from the EclerNet Manager application Device Password: password for the protection of the device against the editing ... -
Page 15: Network Configuration Menu
From EclerNet Manager, you can release the devices controlled by the computer through the creation of a new project (File -> New Project), or by disconnecting them from the network one by one (right mouse button -> Disconnect) From a WPNETTOUCH / WPmSCREEN, you can release the ... -
Page 16: Information / Tools Menu
7.4. Information / Tools menu This menu displays the following information: Server IP Address: IP address of the UCP server device that the unit is connected to, as a UCP client. When the unit is connected to itself as a client, it will show its own IP address (= Local IP Address) ... - Page 17 And the following restore / reboot options: Project Defaults: clears the project in memory, replacing it with a blank project, after warning that the process is irreversible: Factory Defaults: clears the entire configuration and all data in the unit, restoring the factory default settings, after warning that the process is irreversible: ...
-
Page 18: Connection To A Ucp Server
8. CONNECTION TO A UCP SERVER From the home screen of the unit, the connection icon on the upper side of the screen will give access to the Connection page: This page allows deciding the UCP server the unit will connect to as a client. The UCP server may be a computer, a MIMO4040DN matrix (yes, it has an embedded UCP server in its engine!) another WPNETTOUCH / WPmSCREEN unit or even the same PAGENETDN / WPNETTOUCH unit. - Page 19 It is possible to directly enter the IP address of the server device, using the touch keyboard displayed on the screen, or to select a device from a list of automatically detected server devices, which is accessed by clicking on the grey button with the list icon to the right of the "Connect"...
-
Page 20: Package Contents
9. PACKAGE CONTENTS PAGENETDN unit Gooseneck microphone + anti-pop screen External PSU, 24V – 12A, universal, multi AC plug Euroblock 3p aerial connector Quick User Guide and Warranty Card 10. FUNCTION LIST 1. Multi-touch screen 2. -
Page 21: Function Diagram
11. FUNCTION DIAGRAM... -
Page 22: Blocks Diagram
12. BLOCKS DIAGRAM... -
Page 23: Technical Features
13. TECHNICAL FEATURES MIC INPUT Microphone type Removable gooseneck condenser microphone (eMCN1) Polar pattern Unidireccional Microphone freq. response 50Hz – 18kHz (-10dB) Phantom Voltage 48VDC, ON/OFF by internal JUMPER Output level with eMCN1 MICROPHONE -5dBV @ 94dB SPL with ADJ MAX. -10dBV @ 94dB SPL with ADJ MID. - Page 24 Dimensions (microphone excluded) Weight AC Power Adapter 90-264VAC 47-63Hz 12V / 2A Accessories included AC power adapter 90-264VAC 47-63Hz 12V / 2A, multi-plug Microphone Ecler eMCN1...
- Page 25 NEEC AUDIO BARCELONA S.L. reserves the right to make changes or improvements in design or manufacture that may affect these product specifications. Motors, 166‐168 08038 Barcelona ‐ España ‐ (+34) 932238403 | information@ecler.com www.ecler.com...
