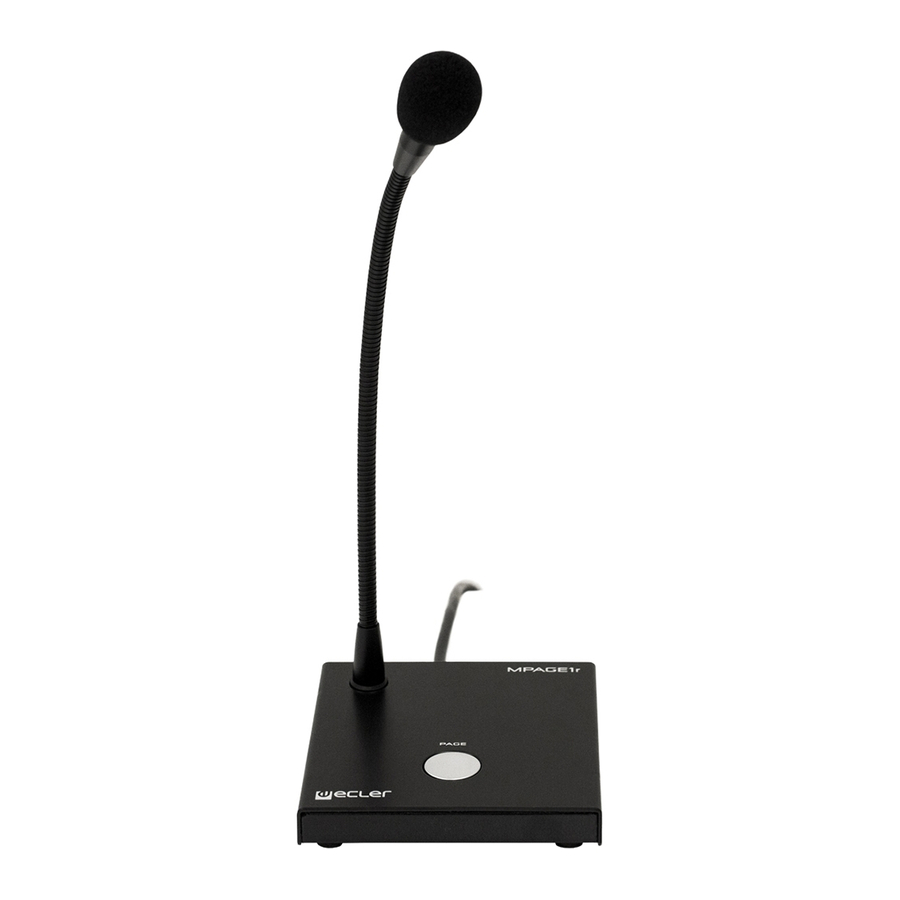

- Page 1 MPAGE1r REMOTE CONTROLS AND INTERFACES Paging Station USER MANUAL 50-0325-0101 MPAGE1r EN...
-
Page 2: Table Of Contents
INDEX IMPORTANT REMARK......................3 IMPORTANT SAFETY INSTRUCTIONS ................4 IMPORTANT NOTE ........................5 INTRODUCTION ........................5 4.1. Main Features ..........................5 INSTALLATION and CONNECTION ..................6 OPERATION ..........................7 CONTROL PANEL FUNCTIONS .................... 7 TECHNICAL SPECIFICATIONS ....................8... -
Page 3: Important Remark
IMPORTANT REMARK The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of uninsulated “dangerous voltage” within the product’s enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons. The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance. -
Page 4: Important Safety Instructions
IMPORTANT SAFETY INSTRUCTIONS Read these instructions. 2. Keep these instructions. 3. Heed all warnings. 4. Follow all instructions. 5. Do not use this apparatus near water. 6. Clean only with dry cloth. 7. Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions. -
Page 5: Important Note
IMPORTANT NOTE Thank you for choosing our Ecler MPAGE1r Paging Station! VERY IMPORTANT It is to carefully read this manual and to fully understand its contents before any connection in order to maximize your use and get the best performance from this equipment. -
Page 6: Installation And Connection
Hole the rubber grommet and pass the audio cable through it. Cable balancing between the MICR connection of the MPAGE1r and the audio input of the receiving equipment (mixer, audio matrix, etc.): Live or direct signal >... -
Page 7: Operation
OPERATION Once the MPAGE1r unit is connected to the receiver, messages are sent by pressing the PAGE key and keeping it pressed while the voice message plays. talkover If the receiver has a “ ” function that works by automatically detecting the signal... -
Page 8: Technical Specifications
TECHNICAL SPECIFICATIONS MPAGE1r Microphone type Non removable gooseneck condenser microphone Polar pattern Unidirectional Microphone frequency response 50Hz – 18KHz (-10dB) Output level -24dBV @ 104dB SPL -34dBV @ 94dB SPL 70dB at 1kHz/1Pa Page mute 80dB typ. Audio output Balanced, detachable 3 pole screw terminal Maximum audio cable length Twisted pair 5m;... - Page 9 NEEC AUDIO BARCELONA S.L. reserves the right to make changes or improvements in the design or manufacturing that may affect these product specifications. For technical queries contact your supplier, distributor or complete the contact form on our website, Support / Technical requests. Motors, 166‐168 08038 Barcelona ‐ Spain ‐ (+34) 932238403 | information@ecler.com www.ecler.com...
