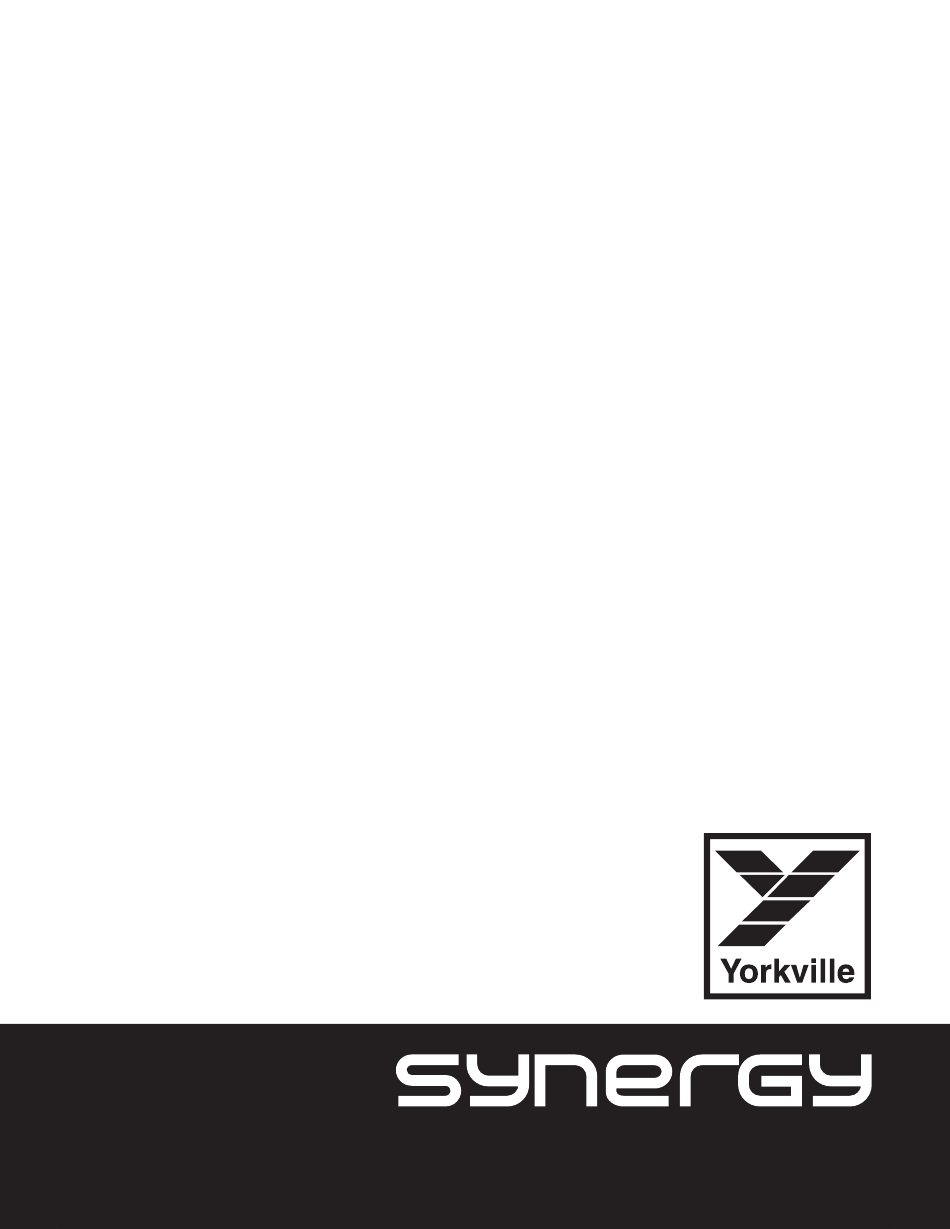

  • Page 1 OWNER’S MANUAL MANUEL DE L’UTILISATEUR SA102 SA102...

  • Page 2: Important Safety Instructions - English / Français

    Important Safety Instructions - English / Français I MP OR TA N T S A FE T Y I N ST R U C TI O N S This lightning flash with arrowhead symbol, within an The exclamation point within an equilatereal triangle is intended to alert the user to the presence equilateral triangle, is intended to alert the user to the presence of uninsulated “dangerous of important operating and maintenance (servicing) instructions in the literature accompanying voltage”...

  • Page 3: Table Of Contents

    2. PowerCON TRUE AC Loop Thru....... 3 Table of Contents ..............ii 3. Prise d’Entrée ............. 3 Synergy SA102 Powered Speaker ........1 4. Sorties Dual Link ............3 Cabinet Features ............. 1 5. Commande de Niveau SA102 ........3 Electronic Features ............

  • Page 4: Synergy Sa102 Powered Speaker

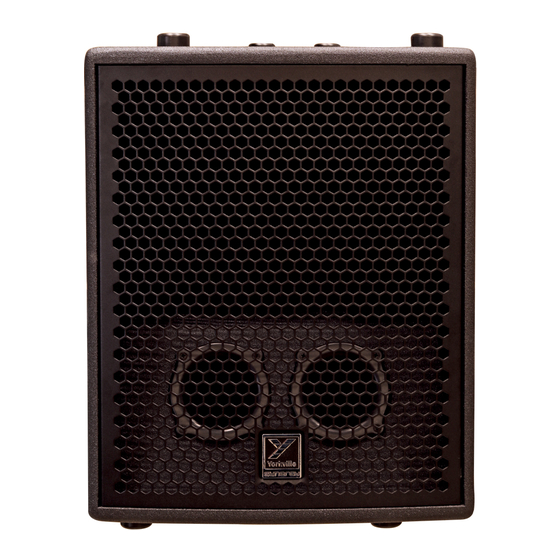

    Synergy SA102 Powered Speaker Thank you for choosing Yorkville’s Synergy SA102 arrayable speaker, the pinnacle of clarity and output in a fully expandable speaker system. The SA102 excels in sound reinforcement applications where a line array is desired but cannot be easily accommodated. Used alone or in multiples with the matching SA115 subwoofers, the SA102 is designed to deliver reliable, high quality audio at a professional level.

  • Page 5: Clip And Limit Indicators

    8. Clip and Limit Indicators The Clip and Limit LED indicators illuminate to guide the user to proper operating levels. Illumination of the yellow Limit LED indicates that a level has been reached where the SA102 limiters are reducing the signal internally to prevent damage or distortion.

  • Page 6: Enceinte Amplifiée Synergy Sa102

    Enceinte Amplifiée Synergy SA102 Merci d’avoir choisi l’enceinte Synergy SA102 de Yorkville. Elle représente le summum de la clarté et du rendement dans un système d’enceintes entièrement extensible. La SA102 excelle dans les applications de renforcement sonore où un line array est souhaité mais ne peut être facilement installé. Utilisée seule ou avec les subwoofers SA115 correspondants, la SA102 est conçue pour fournir un son fiable et de haute...

  • Page 7: Commutateur De Mode (Sub/No Sub)

    6. Commutateur de Mode (Sub/No Sub) Ce commutateur permet à l’utilisateur de configurer le SA102 pour être utilisé avec ou sans caisson de basse. En mode “No Sub”, le filtre passe-haut (coupe-bas) interne du caisson est réglé sur 50 Hz. Lorsque vous utilisez le SA102 avec un caisson de basse, tel que le SA115, appuyez sur le bouton pour régler le filtre passe-haut interne afin qu’il s’aligne parfaitement avec le caisson de basse.

  • Page 8: Specifications - English

    Specifications - English Specifications System Type Active Full-Range Powered Speaker Active or Passive Active Program Power (watts) 1200 watts Program (2400 watts Peak) Biampable Biamp Measured Max SPL (C-Weighted, Max Hold) 127 dB Continous 133 dB Peak Frequency Response (Hz +/- 3dB) 60Hz-18k Modèle de projection 30x45 Asymmetrical (7 Haut, 38 Bas)

  • Page 9: Spécifications - Français

    Spécifications - Français Spécifications Type de système Haut-parleur actif à large bande Actif ou passif Actif Puissance du programme (watts) 1200 watts en programme (2400 watts en crête) Biampable Bi-amplification NPA maximum mesuré (pondéré C, maintien maximum) 127 dB en continu 133 dB en crête Réponse en fréquence (Hz +/- 3dB) 60Hz-18k Modèle de projection...

  • Page 10: Synergy-Convenience-Receptacle

    SYNERGY-Convenience-Receptacle Yorkville Synergy Convenience Receptacle Installation (Cascade Installation) RATED CURRENT Table 1 - SYNERGY RATED CURRENT LINE CURRENT RATED LIMIT SWITCH MAINS VOLTAGE MODEL CURRENT (Arms) (Arms) SA102 SA153 120V 60 Hz SA115S (NORTH AMERICA) SA221S 11.0 11.0 SA315S 10.2 10.2...

  • Page 11: Recéptacle De Commodité Synergy

    Recéptacle de Commodité SYNERGY Installation d'Un Réceptacle de Commodité Yorkville Synergy (Installation en Cascade) COURANT NOMINAL Tableau 1 - COURANT NOMINAL DE SYNERGIE COURANT DE LIGNE COURANT COMMUTATEUR DE LIMITEUR TENSION PRINCIPALE MODÈLE NOMINAL (Armes) (Armes) SA102 SA153 120V 60 Hz SA115S (AMÉRIQUE DU NORD)

  • Page 12: Block Diagram

    Block Diagram...

  • Page 13: Warranty - English / Français

    Unlimited Warranty Yorkville's two and ten-year unlimited warranty on this product is transferable and does not require registration with Yorkville Sound or your dealer. If this product should fail for any reason within two years of the original purchase date (ten years for the wooden enclosure), simply return it to your Yorkville dealer with original proof of purchase and it will be repaired free of charge.

  • Page 14: Rear Page

    WORLD HEADQUARTERS CANADA U.S.A. Yorkville Sound Limited Yorkville Sound Inc. 550 Granite Court 4625 Witmer Industrial Estate Pickering, Ontario Niagara Falls, New York L1W 3Y8 CANADA 14305, USA Voice: 905-837-8481 Voice: 716-297-2920 Fax: 905-837-8746 Fax: 716-297-3689 Manual-Owners-SYNERGY-SA102-00-1v3 • August 29, 2022...
