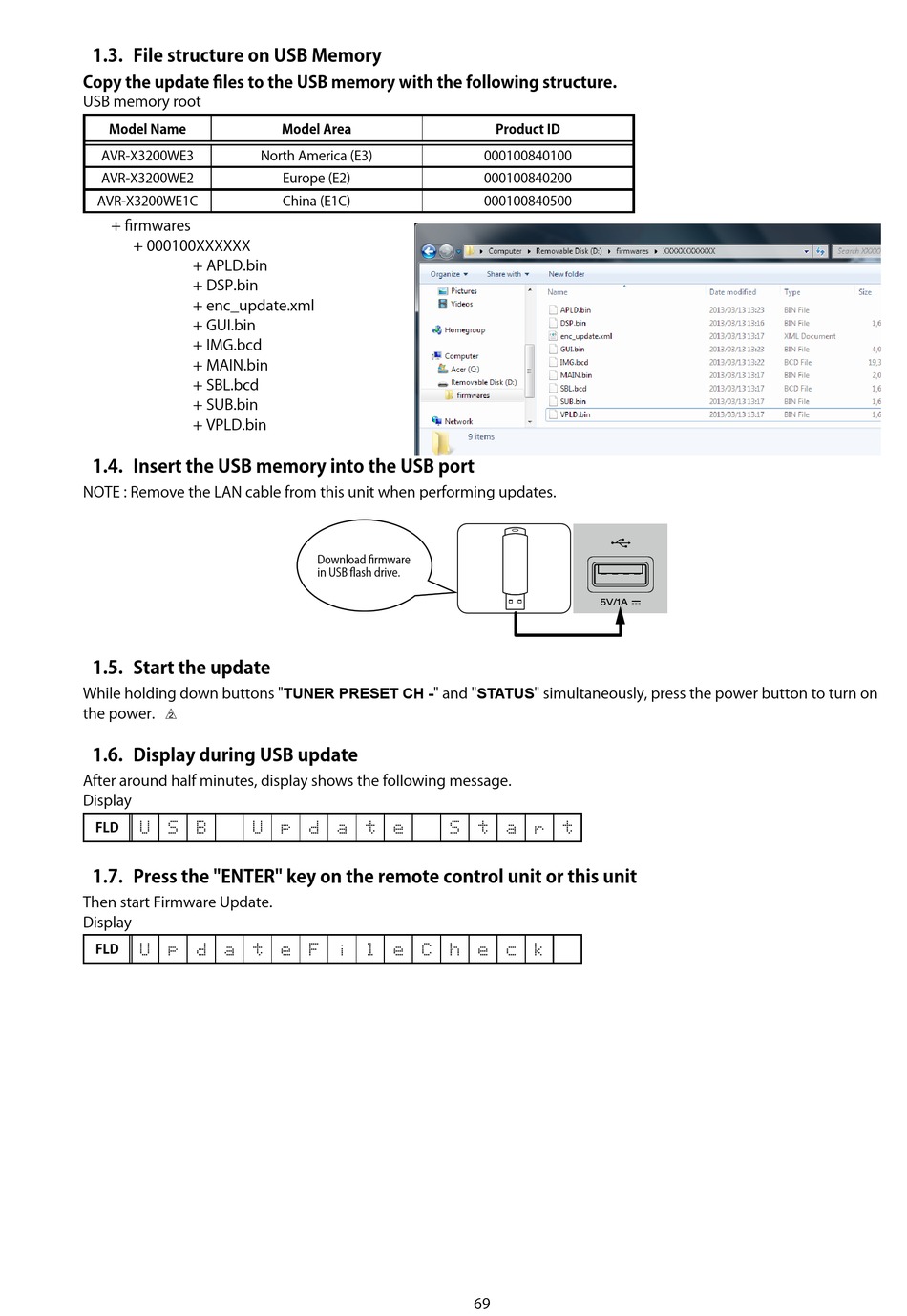

Denon AVR-X3200W Service Manual page 69

1.3. File structure on USB Memory
Copy the update files to the USB memory with the following structure.
USB memory root
Model Name
AVR-X3200WE3
AVR-X3200WE2
AVR-X3200WE1C
+ firmwares
+ 000100XXXXXX
+ APLD.bin
+ DSP.bin
+ enc_update.xml
+ GUI.bin
+ IMG.bcd
+ MAIN.bin
+ SBL.bcd
+ SUB.bin
+ VPLD.bin
1.4. Insert the USB memory into the USB port
NOTE : Remove the LAN cable from this unit when performing updates.
1.5. Start the update
While holding down buttons "TUNER PRESET CH -" and "STATUS" simultaneously, press the power button to turn on
the power.
s
1.6. Display during USB update
After around half minutes, display shows the following message.
Display
FLD
U S B U p d a t e
1.7. Press the "ENTER" key on the remote control unit or this unit
Then start Firmware Update.
Display
FLD
U p d a t e F i l e C h e c k
Model Area
North America (E3)
Europe (E2)
China (E1C)
Download firmware
in USB flash drive.
Product ID
000100840100
000100840200
000100840500
S t a r t
