3. DIGITAL PCB
Proceeding : TOP COVER

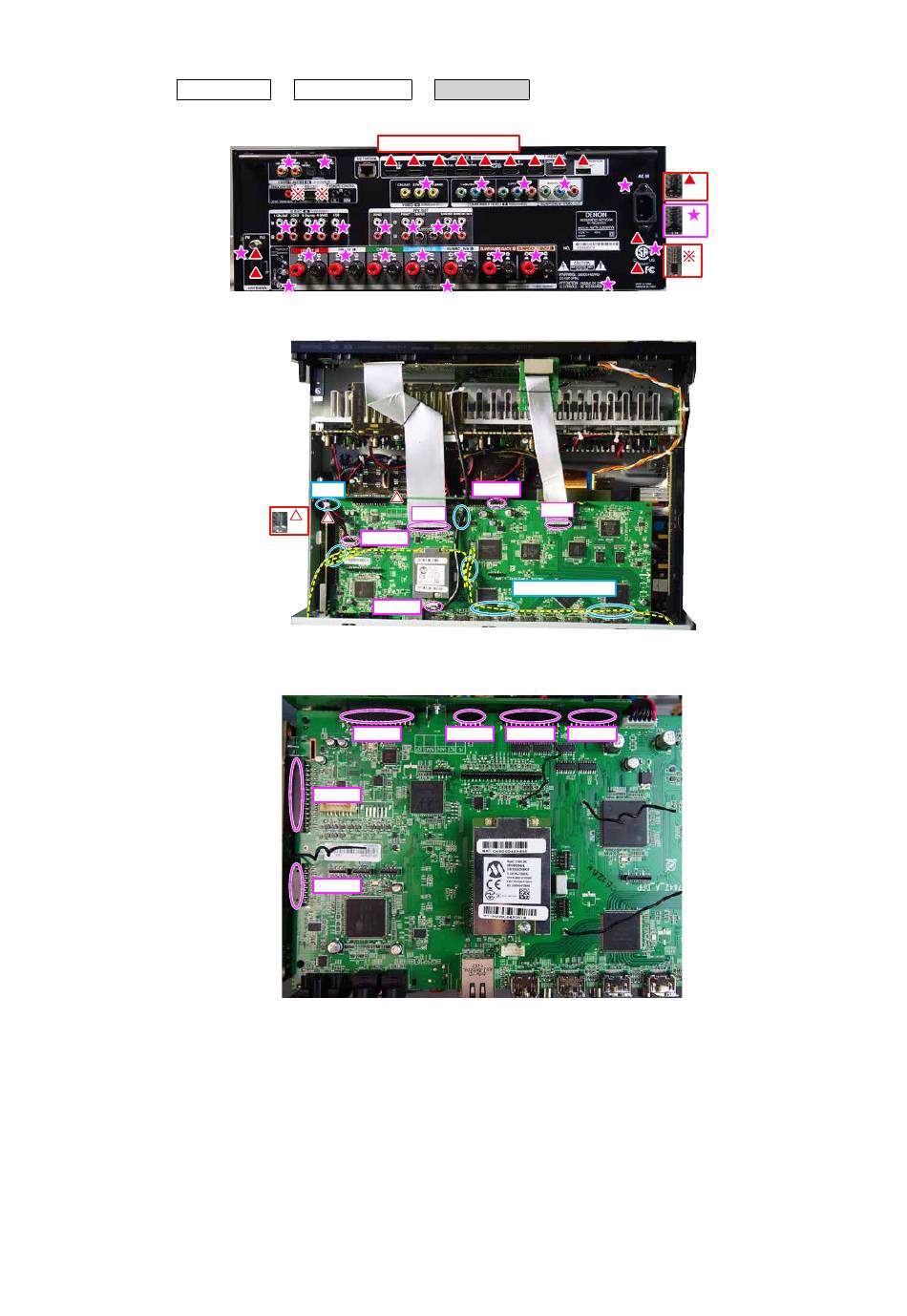

(1) Remove the screws.
(2) Cut the wire clamp, then remove the STYLE PIN, FFC and connector wire.
(3) Remove the connector.
BACK CHASSIS
DIGITAL PCB
→
→
Shooting direction: A
CUT
FFC
x2
CN704
CN321
BN24A
BN23A
BN27A
CN903
FFC
STYLE PIN x5
BN26A BN25A BN21A
15
x13
x26
x2
