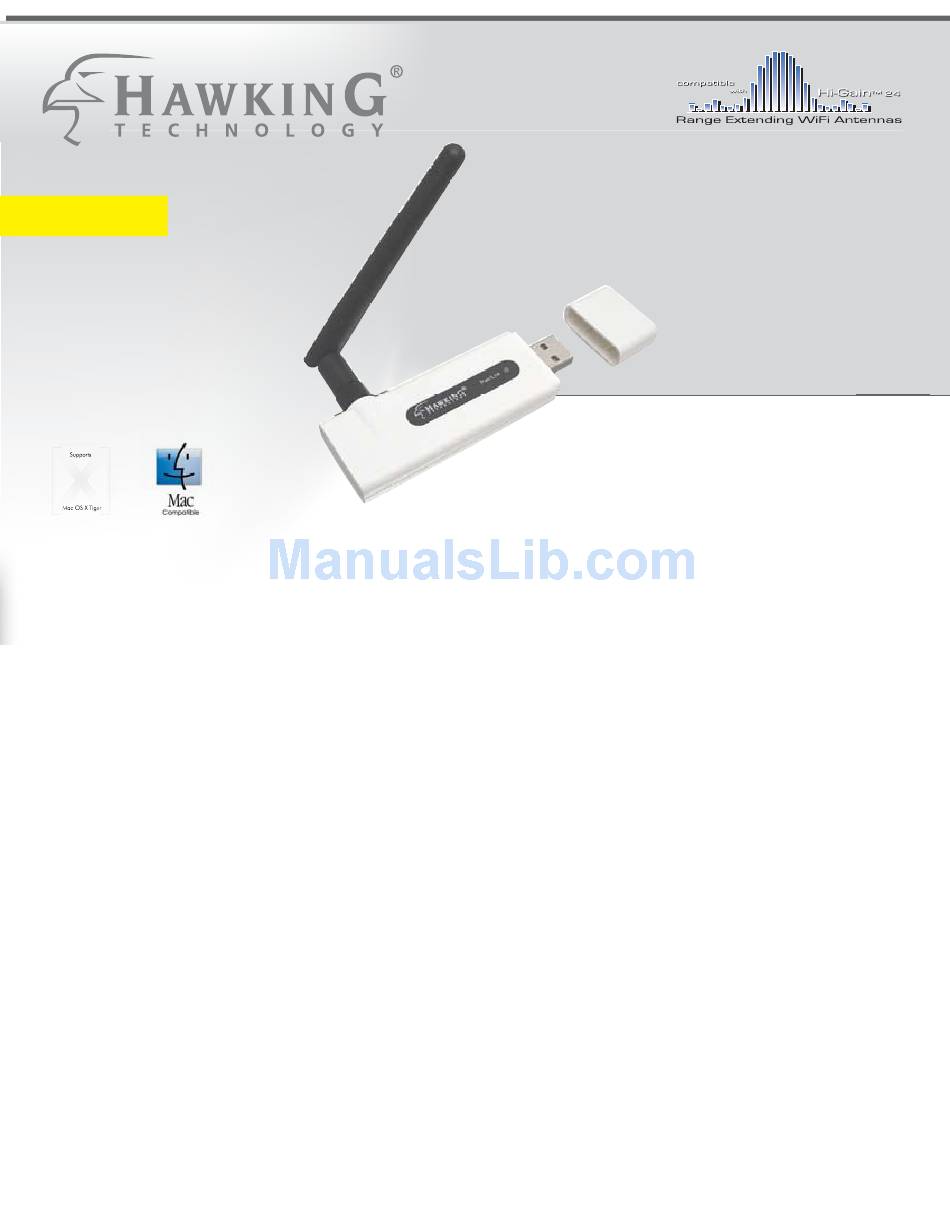

Hawking HWUG1A Specification Sheet

H W U G 1 A H W U G 1 A
Wireless-G Networking with Optional Antenna Upgrades for Extended Wireless Range!

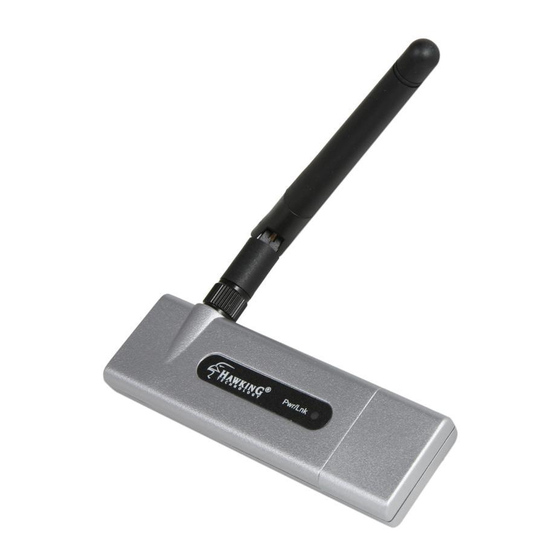

Hawking Technology's HWUG1A, 2.4Ghz Wireless-G USB 2.0 Network Adapter with removable antenna, packs the
latest wireless technology into a compact unit, capable of transferring data at speeds up to 54Mbps and 108Mbps,
capable when paired with the Hawking HWRGM1A Mimo Router. The external dipole antenna can easily be
removed and upgraded to a Hawking Hi-Gain Antenna for extended wireless range.
For piece-of-mind wireless security, the HWUG1 supports 64/128-bit WEP data encryption that protects your wireless
network from eavesdropping. It also supports the WPA and WPA2 (Wi-Fi Protected Access) security standards that
combines IEEE 802.1x and TKIP (Temporal Key Integrity Protocol) technologies. Client users are required to authorize
before accessing to APs or AP Routers, and the data transmitted in the network is encrypted/decrypted by a
dynamically changed secret key.
Features
 Works with both IEEE 802.11b and IEEE 802.11g products.
Removable antenna with reverse SMA connector – upgradeable to a higher power antenna for a wider wireless coverage.

(For the best result, pair the HWUG1 with a Hawking Hi-Gain Antenna )
 Signal strength indicator shows current wireless signal reception information
 High-speed transfer data rate - up to108Mbps turbo mode when paired with the HWRGM1A router
Supports WMM (IEEE 802.11e QoS standard)- High throughput allows for the transfer of data heavy multi-media files.

Supports 64/128-bit WEP, WPA (TKIP with IEEE 802.1x) and AES functions for the highest level of security.

 Automatic fallback increases data security and reliability.
USB2.0 Compliant & Bus powered

System Requirements
One Mac Desktop or Notebook

Mac OS X 10.3 - 10.4 (Intel or Power PC)

 One Available USB Port
 One Available CD-Rom For Driver Installation
Wireless 802.11 b/g network (i.e. Ap or Wireless Devices)

Wireless-G USB Adapter
with Removable Antenna
PACKAGE CONTENTS:
One Wireless-G USB Network Adapter

 One Removable WiFi Antenna
 One CD (Driver/Utility/User's Manual)
One Quick Installation Guide

For Mac Users
