HOMCOM 800-117 Assembly Instruction Manual page 8

Rotisserie Spit Assembly

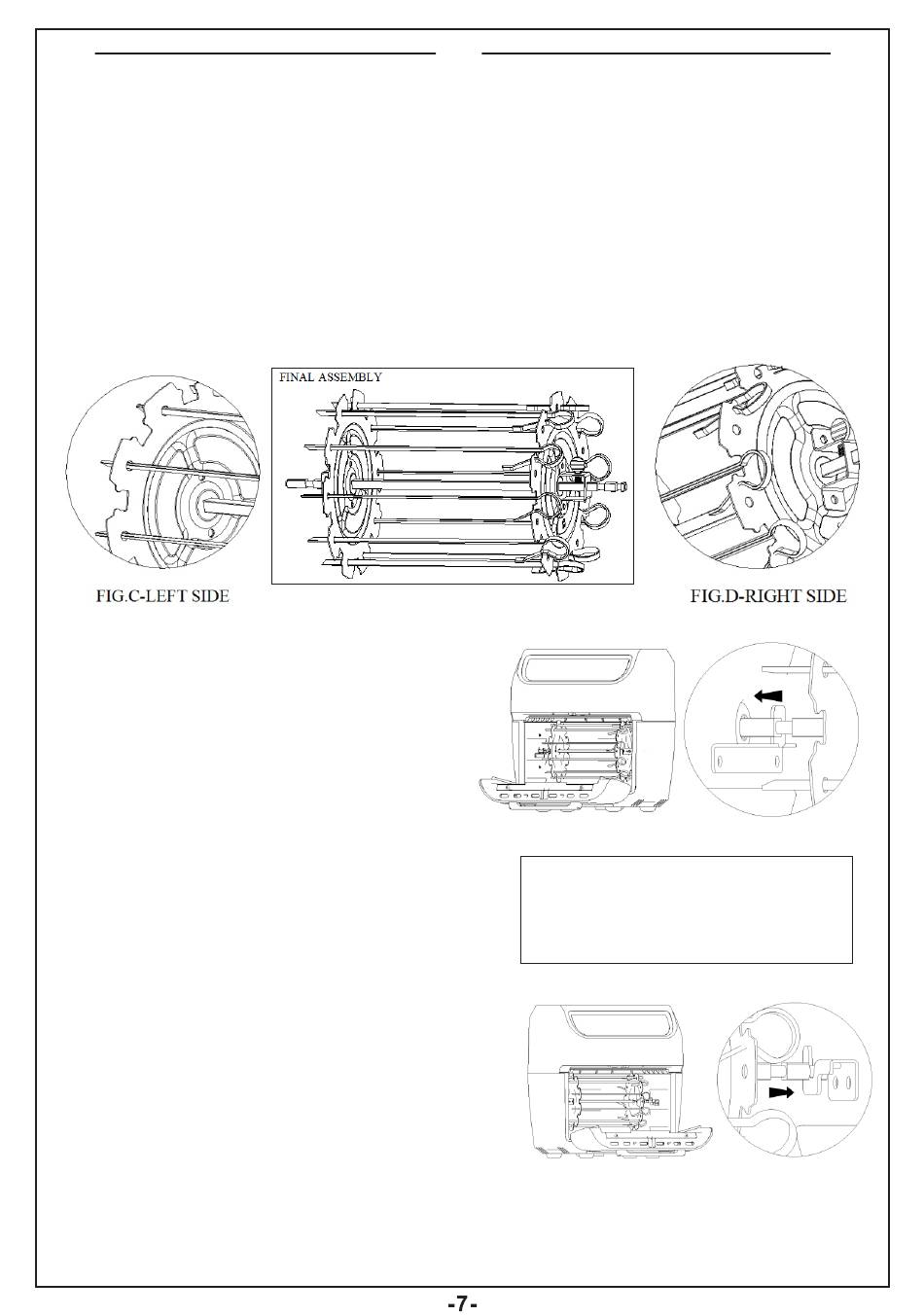

1.Insert each Skewer point through holes on the left Skewer Rack (fig. C).
2.Squeeze the clip-end of each Skewer as you insert into the opposite
Skewer Rack slot to secure.
3.Release clip to securely rest in slot as shown (fig. D).
4.Repeat process 3 through 6 in a uniform manner around the Skewer
Rack. Make sure Skewers are evenly spaced.
5.Tighten the Set Screws to make sure they are securely in place。
6.Use caution while inserting the Spit into the Unit to prevent getting poked
by the Skewer ends.
Place Rotisserie Spit or Rotating
Mesh Basket into Unit
1.Insert the left side of the
assembled Spit or Basket first into
the Rotisserie Shaft socket. Be sure
the Rotisserie Shaft is in place to
engage rotation (fig. E).
2.Place the right side onto the
hanger (fig. F)
Remove Rotisserie Spit or Rotating
Basket from Unit
1.Open Unit door to pause cooking
cycle or turn Unit off by pressing the
Power Button.
2.Insert Rotisserie Fetch tool beneath
the Rotisserie Shaft.
3.Lift the right side of the Rotisserie
Fetch tool at a slight angle to clear the
bracket, then shift to the right until the
left side of the Shaft slides out of the
Rotisserie Shaft socket.
4.Carefully remove the rotisserie food
from the oven.
EN
Fig. E-Left Side
IMPORTANT: See the Final Assembly
diagram to help identify the left and right
sides of the Rotisserie Shaft before
placing it in the Unit. The right side has
two notches, and the left has one.
Fig.F-Right Side
