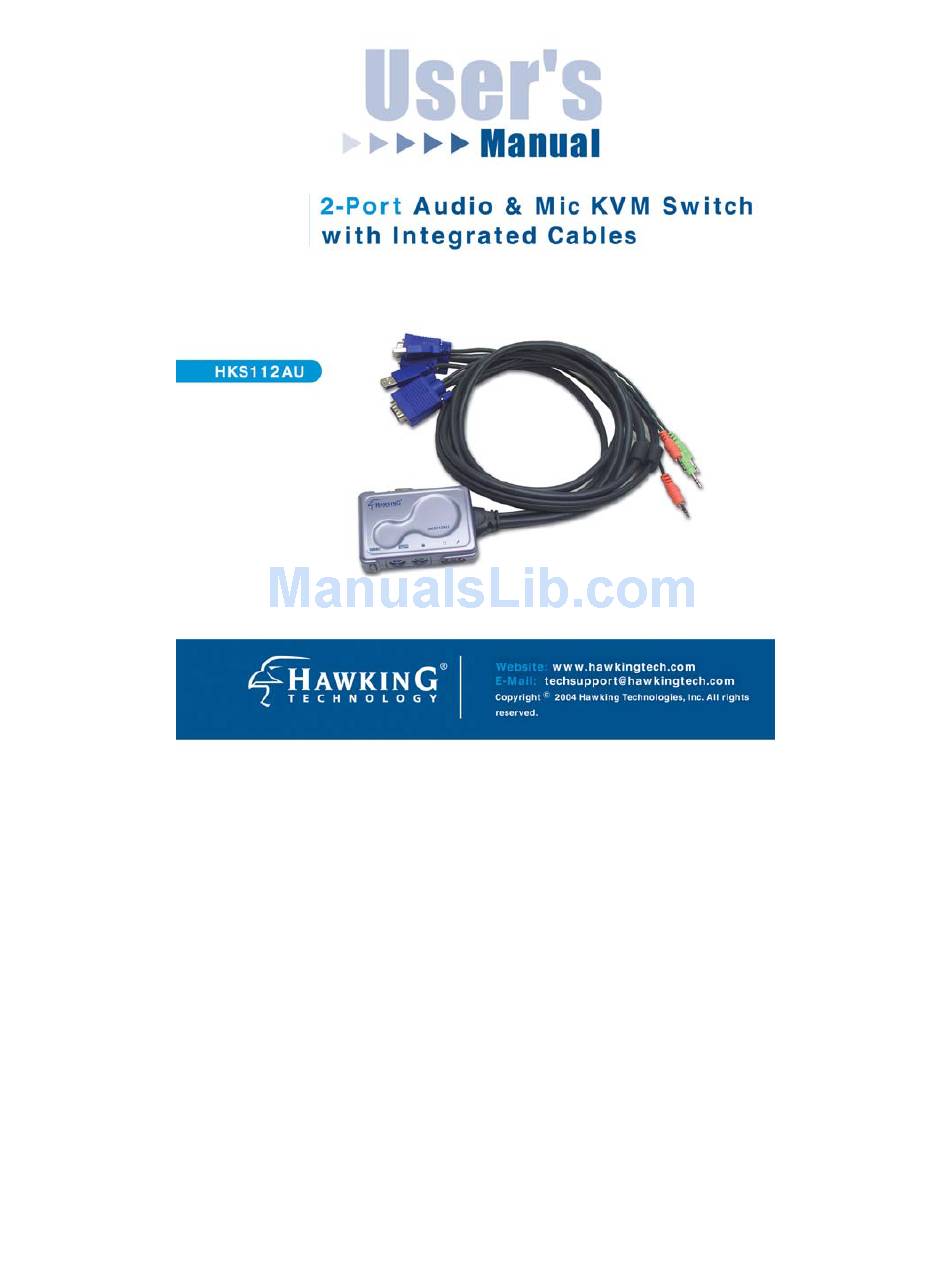

Hawking HKS112AU User Manual

2-port audio & mic kvm switch with integrated cables
Hide thumbs Also See for HKS112AU:

Advertisement

Quick Links

–––

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the HKS112AU and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Hawking HKS112AU

  • Page 1 –––...
  • Page 2 CE Mark Warning This is a Class B product. In a domestic environment, this product may cause radio interference, in which case the user may be required to take adequate measures. VCCI Mark Warning HKS112AU Hawking Technologies, Inc...
  • Page 3 Hawking Technology reserves the right to revise or update its products, software, or documentation without obligation to notify any individual or entity.
  • Page 4: Table Of Contents

    Overview………………………………………………… .1-2 System Requirements……………………….2 Package Contents……………….…………...2 Features……….…………………………………………….3 Installation Diagram………………………………………4 Installation……………………………………………….5-6 Operating Procedure……………………………….…7- 8 Select Button…………………………………7 Hot Keys………………………………………8 Quick Reference Sheet………………………………9-10 Specifications…………………………………….. …11-12 Troubleshooting…………………………………… ..13-15...
  • Page 5: Overview

    The HKS112AU enables you to share a single PS/2 keyboard, PS/2 mouse, and monitor set with two computers. With 59” built-in cables, the HKS112AU consoles a PS/2 keyboard and PS/2 mouse into a single USB port on your computers, saving you the trouble of additional cabling.
  • Page 6: System Requirements

    Package Contents: One HKS112AU 2-Port Audio & Mic KVM Switch w/Integrated Cable One User’s Manual System Requirements: Computer: One available USB port One VGA, SVGA, or MultiSync monitor port Console (KVM Switch) side: One PS/2 Keyboard One PS/2 Mouse One VGA, SVGA, or MulitiSync monitor...
  • Page 7: Features

    PC selection through hotkey sequences or manual selection button ▪ LED indicators for easy status monitoring ▪ Buzzer sound for port switching confirmation ▪ High VGA resolution 1920 x 1440 ▪ PS/2 or USB interface power HKS112AU Hawking Technologies, Inc...
  • Page 8: Installation Diagram

    HKS112AU Hawking Technologies, Inc...
  • Page 9: Installation

    Warning ▪ The HKS112AU is hot-pluggable enable. However, to ensure all the computers working properly, powered off your computers prior to installation. Installation Step 1: Connect the PS/2 keyboard, PS/2 mouse, monitor, speakers, and microphone to the corresponding ports on the HKS112AU.
  • Page 10 LED on the KVM Switch will light up and the PC 1 will be displayed on the monitor. Now, the installation procedure is complete. To select your PC, please refer to the Operating Procedure on the next page. HKS112AU Hawking Technologies, Inc...
  • Page 11: Operating Procedure

    There are two methods to control the HKS112AU KVM Switch: the hot key combinations or the manual select button on your KVM Switch. Select Button The Select button enables you to switch your PC through pushing a button on your HKS112AU KVM switch.
  • Page 12: Hot Keys

    2 seconds following the command key(s). Otherwise, the hot key sequence will not work properly. 4. Make sure that you are not using a USB keyboard; otherwise the hot key feature will not be able to function properly. HKS112AU Hawking Technologies, Inc...
  • Page 13 PC ) Select the Scroll Lock Previous PC → Scroll (Higher channel) Lock → ↑ HKS112AU Hawking Technologies, Inc SELECT BUTTON INDICATIONS Press the PC 1 = Blue Select PC 2 = Green button USB LED will...
  • Page 14 ScrLk + ScrLk + C = (CD/DVD drive eject key) ScrLk + ScrLk + F10 = F13 ScrLk + ScrLk + F11 = F14 ScrLk + ScrLk + F12 = F15 HKS112AU Hawking Technologies, Inc Press the Select ------------ button ------------...
  • Page 15: Specifications

    Scan Delay Time 5 seconds Keyboard/Mouse PS/2 to USB Emulation VGA Resolution 1920 x 1440 pixels Power Type PS/2 & USB Interface Power Power Adapter DC 9V 500mA (Optional Only & Power Adapter is not included) HKS112AU Hawking Technologies, Inc...
  • Page 16 Dimension 85 x 65 x 28 mm (L x W x H) Cable Length 59 inches or 1.5M Weight 160 g * Weight registered here does not include the built-in cables Safety / Emission FCC, CE HKS112AU Hawking Technologies, Inc...
  • Page 17: Troubleshooting

    Reset your KVM Switch by using the hot key sequence: • Scroll Lock → Scroll Lock → End. Then rebooting your computers. • Reset the keyboard / mouse by unplugging your keyboard and reboot your computers. HKS112AU Hawking Technologies, Inc...
  • Page 18 ScrLk + ScrLk + M + 1 for a 2-key mouse setting; ScrLk + ScrLk + M + 2 for a 3-key wheel mouse setting; ScrLk + ScrLk + M + 3 for a 5-key wheel mouse setting. HKS112AU Hawking Technologies, Inc Then,...
  • Page 19 The screen flickers horribly • Your KVM Switch may be in the Auto Scan mode. Press any key on the keyboard to stop Auto Scan. HKS112AU Hawking Technologies, Inc excessive electromagnetic...
