Jabra Link 14201-09
How to connect my Jabra GN9330e with Alcatel Touch 4029,
4039
Prerequisite:
Jabra GN9330e + Jabra LINK 14201-09
In combination with one of the following phones:
Touch 4029
Touch 4039
Connection:
Important: Please note that Remote Call Control for the Jabra GN9330e
(Jabra product no. 9337-508-402) is only supported from version "L" or the
Date code 9/09.

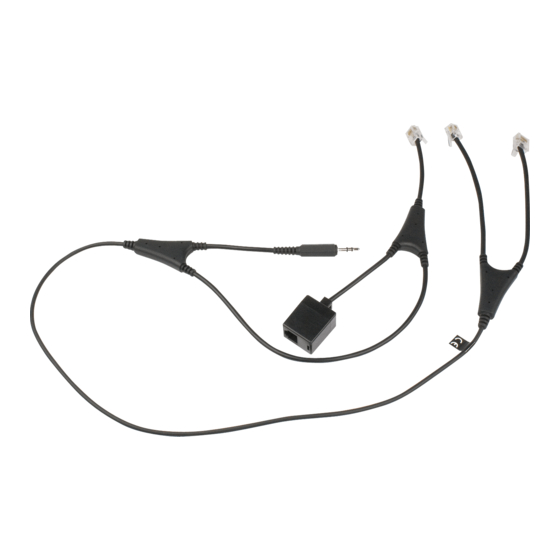

2-sided end:
Insert the RJ45 plug into the socket marked "AUX" and the RJ9 plug into
the socket marked "phone" on the Jabra GN9330e.
2-fold Y-coupling end:
Insert the 3.5 mm audio jack into the "headset" interface and the RJ12
plug into the bell socket of the phone. Now insert the phone's phone cable
directly into the additional connector socket of the Y cable.
/supportpages/jabra-link-14201-09/14201-09/faq/327aff69-482c-4c14-9c69-
a05acacc15d7
28/03/2022 19:02
Page 1 of 4
Advertisement
Related Manuals for Jabra Link 14201-09
Summary of Contents for Jabra Link 14201-09
- Page 1 Touch 4039 Connection: Important: Please note that Remote Call Control for the Jabra GN9330e (Jabra product no. 9337-508-402) is only supported from version "L" or the Date code 9/09. 2-sided end: Insert the RJ45 plug into the socket marked "AUX" and the RJ9 plug into the socket marked "phone"...
- Page 2 Software setup: Put the headset into the base and activate the "MSH" mode. Hold down the "phone" button on the base of the Jabra GN9330e for approx. 6 seconds until the online display (blue LED) on the headset starts to flash. The current software is displayed to you by activating the volume controller in the form of the charge display (green LED).
- Page 3 "Phone display". If the headset symbol does not appear, please check the following settings: Menu> Settings> Phone> Audio Jack> Select/ Activate Headset. /supportpages/jabra-link-14201-09/14201-09/faq/327aff69-482c-4c14-9c69- Page 3 of 4 a05acacc15d7...
- Page 4 Dial the phone number > "Forward" will now appear in the phone display > now press on to the appropriate function key next to the phone display > now you should end the call with the button marked "Handset" /supportpages/jabra-link-14201-09/14201-09/faq/327aff69-482c-4c14-9c69- Page 4 of 4 a05acacc15d7...
