- Page 1 Released Remote Panel - RP-3000XT Technical Manual Remote Panel Remote Panel - RP-3000XT Release 2.0 Document ID: 37928, Revision A - Build 50960...
- Page 2 This is no translation but the original Technical Manual in English. Designed in Germany. Woodward GmbH Handwerkstr. 29 70565 Stuttgart Germany Telephone: +49 (0) 711 789 54‑510 Fax: +49 (0) 711 789 54‑101 E-mail: stgt-info@woodward.com Internet: http://www.woodward.com © 2021 Woodward GmbH. All rights reserved. Remote Panel - RP-3000XT 37928...

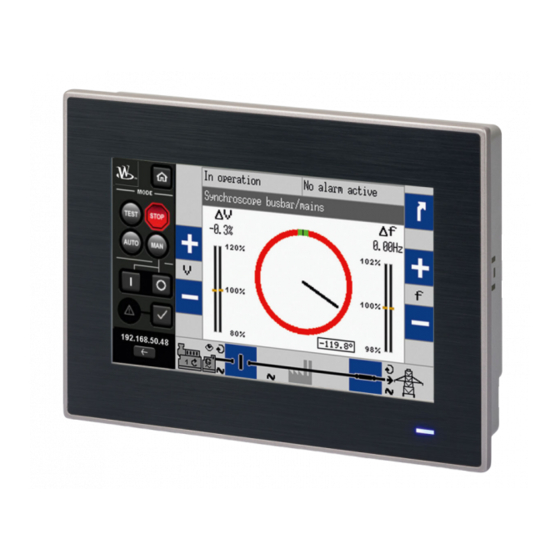

- Page 3 The RP-3000XT allows remote control and visualization. It offers all the HMI resources that the display variants easYgen-3200XT/3500XT offer, but with the state of the art touch screen technology.
- Page 4 Released Brief Overview Supported devices All easYgen-3000XT genset controls and LS-6XT are supported by the RP-3000XT remote panel. Scope of delivery The following parts are included in the scope of delivery. Please check prior to the installation that all parts are present.
-
Page 5: Table Of Contents
..............40█ 37928 Remote Panel - RP-3000XT... - Page 6 ............... . 47█ Remote Panel - RP-3000XT 37928...
-
Page 7: General Information
◦ design changes ◦ ◦ handle large # of devices using a scrollbar instead of page ◦ buttons ◦ Info popup with release information ◦ Technical Manual • reworked manual according to HW and SW changes • 37928 Remote Panel - RP-3000XT... -
Page 8: Depiction Of Notes And Instructions
Marking Explanation ⚙ Start of a procedure list > Prerequisite for a procedure list ▷ Step-by-step instructions ▶ Results of action steps ╚═▷ References to sections of these instructions and to other relevant documents Remote Panel - RP-3000XT 37928... -
Page 9: Copyright And Disclaimer
All information and instructions in this manual have been provided under due consideration of applicable guidelines and regulations, the current and known state of the art, as well as our many years of in-house experience. Woodward assumes no liability for any damages due to: •... -
Page 10: Service And Warranty
In addition, our employees are constantly interested in new information and experiences that arise from usage and could be valuable for the improvement of our products. Warranty terms Please enquire about the terms of warranty from your nearest Woodward representative. For our contact search webpage please go to: ══▷ http://www.woodward.com/ Directory.aspx... -
Page 11: General Safety Notes
◦ cover or shield neighboring live parts. ◦ • Never bypass a fuse or render it inoperable. Always use the correct amperage when • changing a fuse. • Keep moisture away from live parts. Moisture can cause short circuits. • 37928 Remote Panel - RP-3000XT... - Page 12 Disconnecting a battery from a control system that uses an alternator or battery- charging device whilst the charging device is still connected causes damage to the control system. • Make sure the charging device is turned off before disconnecting the battery from • the system. Remote Panel - RP-3000XT 37928...
-
Page 13: System Overview
A typical application for the remote panel is to control back-panel mounted easYgen-XT or LS-6XT devices. • In this case, the RP-3000XT provides control from the front panel with considerably • reduced wiring effort. • The high-voltage connections are located safely on the back panel at the •... -
Page 14: Display And Status Indicators
Display The display (╚═▷ Fig. 3) as part of the RP-3000XT is used for direct access to status information and configuration. The touch screen of the Remote Panel XT allows to push the blue buttons directly at the display while easYgen-XT devices work with soft keys (display beside the button). -
Page 15: Hardware Interfaces (Terminals)
• NOT illuminated: Power OFF or fatal device error • Hardware Interfaces (Terminals) The RP-3000XT provides the following terminals -- only two of them, marked green, are used for remote panel. They are allocated as follows: Fig. 4: Interfaces overview (side view) - Page 16 2 System Overview 2.2 Hardware Interfaces (Terminals) Fig. 5: Interface overview (rear view) Restricted use of interfaces For use with easYgen-3000XT or LS-6XT devices only two terminals are used: • Power supply • • ETHERNET port • Remote Panel - RP-3000XT 37928...
-
Page 17: Installation
• Don't drill holes if you want to use the clamp fasteners. If the holes are drilled into • the panel, the clamp fasteners cannot be used anymore. • In order to ensure the protection of IP 66, fasten the unit with adequate care. • Fig. 6: Dimensions 37928 Remote Panel - RP-3000XT... - Page 18 Measure Description Height Total height 146.9 mm Panel cutout 138.5 mm height Width Total width 205 mm Panel cutout 192 mm width Depth Total depth 46 mm The maximum permissible corner radius is 5 mm. Remote Panel - RP-3000XT 37928...
-
Page 19: Clamp Fastener Installation
5. ▷ Fig. 9: mount Insert the noses of the insert into the slots of the housing. Do it for all six clamp fasteners on all sides of the device. 37928 Remote Panel - RP-3000XT... -
Page 20: Setup Connections
7. ▷ Re-attach the wire connection terminal strip and secure them. Setup Connections 3.2.1 Terminal Allocation Fig. 10: Side View: Used Interfaces Remote Panel - RP-3000XT 37928... -
Page 21: Power Supply
Rear View: Used Interfaces Power supply ETHERNET port 3.2.2 Power Supply General notes Terminal 1: Low voltage / Limited Energy power source. See drawing ╚═▷ “3.2.1 Terminal Allocation”. Schematic and terminals Fig. 12: Power supply - wiring 37928 Remote Panel - RP-3000XT... -
Page 22: Ethernet Interface
RP-3000XT and the easYgen-3000XT Series candidate. The RP-3000XT displays the IP address and the device name of the available devices. Woodward recommends to use IP addresses that allow to identify the devices easily e.g., ... - Page 23 Cable length / distance The maximum length from connection to connection is 100 m. Some third party suppliers offer technology to expand the connection. Topology Fig. 13: Application Example: Simple constellation with one easYgen-3000XT and one RP-3000XT 37928 Remote Panel - RP-3000XT...
- Page 24 Released 3 Installation 3.2.3 ETHERNET Interface Fig. 14: Application Example: Multiple Generator operation with one LS-6XT with ToolKit access point and one RP-3000XT Remote Panel - RP-3000XT 37928...
- Page 25 RP-3000XT Connection/Connectivity The Ethernet Network A enables connectivity of several genset controls and several remote panels. The remote control always is a 1:1 connection of one RP-3000XT with one (selected) easYgen-3000XT! Troubleshooting Check first the power supply of the switches.
- Page 26 Released 3 Installation 3.2.3 ETHERNET Interface Troubleshooting Woodward recommends the use of shielded twisted-pair cables for the Ethernet bus. Remote Panel - RP-3000XT 37928...
-
Page 27: Setup (1St Time Operation)
• select easYgen to connect to • • use RP-3000XT touch screen like easYgen HMI • (One time) Network settings are easy and fully supported by the RP-3000XT application software. Pre-Conditions • The Remote Panel is connected over Ethernet with the easYgen-3000XT network A •... - Page 28 Fig. 16: easYgen-3000XT HMI: Ethernet A info Fig. 17: ToolKit of easYgen-3000XT: Ethernet A settings Both screens (HMI and ToolKit) show the same easYgen-3000XT's current IP address in Ethernet A network: 10.31.140.126 with subnet mask 255.255.240.000. Remote Panel - RP-3000XT 37928...
-
Page 29: Setup Ethernet Network Connection
Use this info later on for subnet mask alignment and to avoid using the same IP address twice. The IP address of the Remote Panel RP-3000XT must be different but in the same network (subnet)! The description in this chapter applies in a similar way also to other RP3000XT capable devices, like LS-6XT. -
Page 30: The Multicast Screen
(long names are displayed in a loop). • GREEN icon: The latest used device (the device that was connected last time) • • WHITE icon: All other devices in the network • Remote Panel - RP-3000XT 37928... -
Page 31: The Settings Screen
4.2.2 The SETTINGS Screen The RP-3000XT must be in the same network as the devices for remote control. So it has to be configured for the same subnet mask and an IP address of this network. The IP address must be different from any other used in this address range. - Page 32 "these two buttons allow to accept or cancel made settings. If accepted, the settings are applied immediately. After pressing one of these buttons, and the system will jump into the multicast screen. In this example the RP-3000XT is configured to IP address 192.168.000.101 within the same subnet 255.255.255.000. Auto-Connection pre-settings The »CONNECTION«...
- Page 33 CAUTION! Avoid using the same IP address twice! By mistake it is possible to assign the same IP address for Remote Panel RP-3000XT same as configured for the easYgen-3000XT or LS-6. In this case the last configured device (RP-3000XT) will work properly but the so far configured device (easYgen-XT) will be invisible on the Ethernet: Load Share and ToolKit do not work on this device! ...
- Page 34 4.2.2 The SETTINGS Screen Multiple Genset applications all devices, the RP-3000XT recognizes, are visible in the MULTICAST screen. If there are more than 15, a scroll bar appears to navigate to them. Recommendation for multiple genset applications: Adjust the IP-Address following one relevant numbering scheme of your application e.g., the generator numbers.
-
Page 35: Operation
HMI. The difference between these two devices is, that the RP-3000XT remotely controls the operation of the easYgen-3000XT Series. The level of control is not depending on the RP-3000XT device but on the password level. RP-3000XT can access all password levels of the easYgen-3000XT. This is also correct for the LS-6XT. - Page 36 The area "2" at the right side is the HMI screen mirror of the connected easYgen-XT with "3" Ethernet device name "BETA_48A". The buttons "1" offer the same functionality as the front buttons of the connected easYgen-XT HMI/display version. Remote Panel - RP-3000XT 37928...
-
Page 37: Use Cases
• When the Remote panel is already connected to a EG3000XT or similar and the • connection fails or the EG3000XT powers down ◦ The panel will show an error. After the connection is restored, it will ◦ automatically reconnect.. 37928 Remote Panel - RP-3000XT... - Page 38 ... if your preferred device is still NOT listed: Open SETTINGS screen and check the Ethernet settings of the RP-3000XT and the easYgen-XT (IP address and subnet mask) You detect how to update network settings or - with correct network settings - need help ▶...
- Page 39 LS-6XT device control The easYgen-3000XT or LS-6XT that has been remotely controlled runs with its settings 'til they are changed via HMI or other remote access. The RP-3000XT is ready to be connected to an easYgen-3000XT device. Monitor an easYgen-XT but disable changes by remote control ⚙...
-
Page 40: Personalization
5 Operation 5.4 Personalization Personalization It is possible to replace the power-up screen image and base screen logo by yours. Refer to application note 37929 available at woodward.com or at the QR server http:// wwdmanuals.com/easygenrp-3000xt. Remote Panel - RP-3000XT 37928... -
Page 41: Trouble Shooting
- customers - side! Description Information Corrective Action display "dark" but blue LED "ON" fatal display error send to Woodward service partner blue LED "OFF" no power check power connection fatal device error send to Woodward service partner no easYgen or LS-6XT found in network... -
Page 42: Technical Specifications
Power supply 24 Vdc ±20% Intrinsic consumption typical 9W Operating temperature -20 to 60 °C (-4 to 140 °F) Storage temperature -30 to 70 °C (-22 to 158 °F) Humidity 10 to 90% RH@40 °C, non-condensing Remote Panel - RP-3000XT 37928... -
Page 43: System Hardware
800:1 7.1.4 Touch Screen Touch points 10 points Light Transmission Above 85% Pencil Hardness Type Projected capacitive (P-CAP) touch 7.1.5 Interface Ethernet only The other available interfaces are NOT to be USED for this application! 37928 Remote Panel - RP-3000XT... -
Page 44: Software
7.1.6 Software Ethernet interface Ethernet bus interface (RJ45) 10/100/1000 Mbps LAN 7.1.6 Software Operating System Linux Woodward Remote Panel RP-3000XT software Auto-start software to connect to an easYgen-3000XT or LS-6XT for remote control via Ethernet ©Woodward 7.1.7 Housing Housing type Dimensions (W ×... -
Page 45: Generic Note
Released 7 Technical Specifications 7.1.9 Generic Note 7.1.9 Generic Note Accuracy Referred to remotely controlled device 37928 Remote Panel - RP-3000XT... -
Page 46: Glossary And List Of Abbreviations
Glossary And List Of Abbreviations Code Level Discrete Input Discrete (Relay) Output Serial Number Part Number Programmable Logic Control N.O. Normally Open (make) contact N.C. Normally Closed (break) contact Voltage Current Real power Reactive power Apparent power Remote Panel - RP-3000XT 37928... -
Page 47: Index
.............. 10█ 37928 Remote Panel - RP-3000XT... - Page 48 Released Woodward GmbH Handwerkstraße 29 — 70565 Stuttgart — Germany Phone +49 (0) 711 789 54-510 +49 (0) 711 789 54-101 stgt-info@woodward.com...
