Insignia NS-PW3X4AC2W22B Quick Setup Manual

QUICK SETUP GUIDE

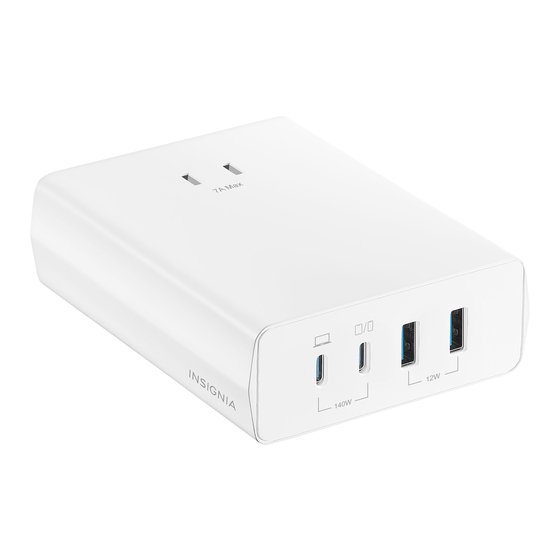

Wall Charger
140W
• NS-PW3X4AC2W22B
• NS-PW3X4AC2W22B-C
Before using your new product, please read these instructions to prevent any damage.

USING YOUR CHARGER

You can use your charger in four different ways. USB-C ports are suitable for laptops and tablets. USB ports are suitable for smartphones, smartwatches, and earbuds.
One port
Each USB-C port provides up to 140W of power when
used alone.
140W
PowerING YOUR CHARGER
You can power your charger in three different ways.
Using the folding blades
Flip out the folding blades, then plug the charger
into a standard wall outlet.
Folding blades
Two ports
2 USB-C ports provide 100W+30W of power when used
together.
100W 30W
Using the power cord
Slide the flat end of the power cord over the folded
blades on your charger. Plug the other end into a
standard wall outlet.
Three ports
2 USB-C ports provide 100W+30W of power when used
together. Each USB port provides up 12W of power
when used alone.
100W 30W
12W
Stacking with other chargers
To connect your chargers together for more power output and USB/USB-C ports,
extend your charger's foldable blades, then plug it into another charger. You can
stack up to four chargers.
Caution: Do not stack more than 4 chargers.
# of Ports
# of Chargers Total Power Output
140W 4
1 charger
280W 8
2 chargers
420W 12
3 chargers
4 chargers 560W 16
Four ports
2 USB-C ports provide 100W+30W of power when
used together. 2 USB ports provide a shared 15W
when used together.
15W
Shared
100W 30W
