Insignia NS-MWPCA5 Quick Setup Manual

QUICK SETUP GUIDE
Wireless
Charging Pad
NS-MWPCA5

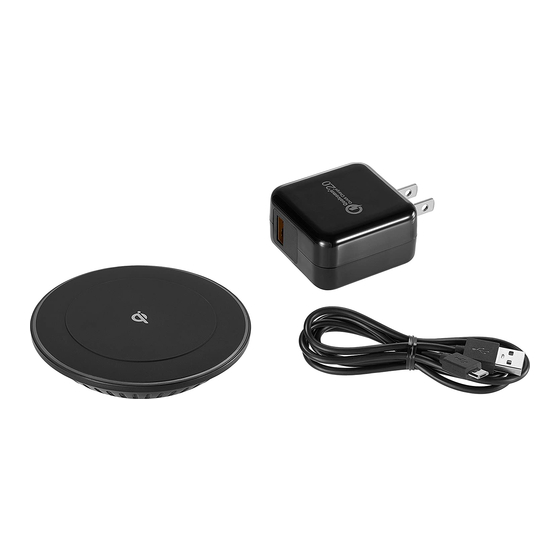

PACKAGE CONTENTS
• Wireless Charging Pad
• Micro USB charge/sync cable
• Power adapter
• Quick Setup Guide
Before using your new product, please read these instructions to prevent any damage.
COMPATIBILITY
Works with all Qi v1.2.2 and newer devices. This includes Samsung
devices such as the Note 5, S6 Edge, S6, S6 Edge +, S7 Edge, S7, S8,
and the new iPhone.
PRODUCT OVERVIEW
Micro USB port
LED indicator
USING YOUR CHARGING PAD
1 Connect the micro USB charge/sync cable to the micro USB port
on your charging pad.
2 Plug the USB connector into the power adapter.
3 Connect the power adapter to the power outlet.
Micro USB charge/
sync cable
Power adapter
4 Place your Qi-enabled device on the charging pad with the
screen facing up. The LED is blue or purple when your device
is charging.
Note: If the LED is red, your device is not charging. See
"Troubleshooting" for more information.
LED indicator
