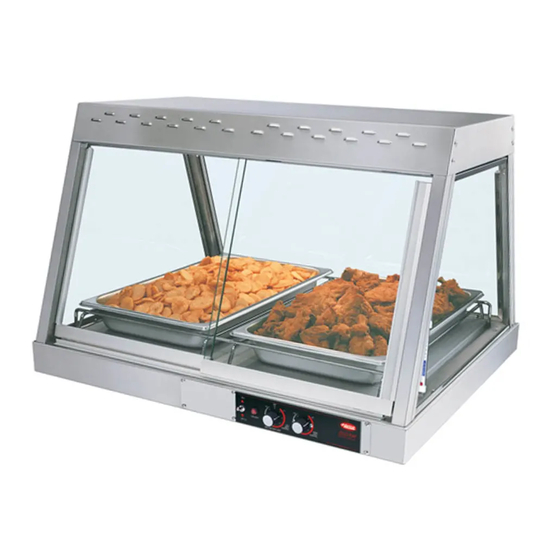

Hatco Glo-Ray GRHD-2P Replacement Parts List Manual
Grhd series heated display cases
Hide thumbs
Also See for Glo-Ray GRHD-2P:
- Specifications (2 pages) ,
- Brochure (1 page) ,
- Installation and operating manual (40 pages)
Related Manuals for Hatco Glo-Ray GRHD-2P
Summary of Contents for Hatco Glo-Ray GRHD-2P
- Page 1 GLO-RAY Heated Display Cases GRHD Series GRHD-2P GRHD-2PD GRHDH-2P GRHDH-2PD REPLACEMENT PARTS LIST ® GRHD-3P GRHD-4P GRHD-3PD GRHD-4PD GRHDH-3P GRHDH-4P GRHDH-3PD GRHDH-4PD...
- Page 2 X= Full Size Pan Capacity on Bottom Shelf P= Pan D= Dual Shelf 9A, 9B CAUTION - Use of replacement parts other than those supplied by Hatco Corporation may result in damage to the unit or injury to personnel. Printed in U.S.A.
- Page 3 X= Full Size Pan Capacity on Bottom Shelf P= Pan D= Dual Shelf 9A, 9B CAUTION - Use of replacement parts other than those supplied by Hatco Corporation may result in damage to the unit or injury to personnel. Printed in U.S.A.
- Page 4 ITEM DESCRIPTION Thermostat Control, Base Light Socket with Leads, Single Leg 4" (10 cm) Form No. GRHDRP-1002 PARTS COMMON TO ALL GRHD/GRHDH MODELS PART NO. QTY. ITEM DESCRIPTION 02.16.030.00 Knob, Infinite Control Knob, Thermostat 02.30.044.00 2-11 05.30.007.00 PART NO. QTY. 05.30.043.00 05.30.018.00 Printed in U.S.A.
- Page 5 PARTS SPECIFIC TO MODEL GRHD-2P ITEM DESCRIPTION 6A Glass Door, Inner 6B Glass Door, Inner, Mirror 7A Glass Door, Outer 7B Glass Door, Outer, Mirror 8A Relay - SPST 8B Relay - DPDT 8C Relay - DPST 9A Heating Element, Base...
- Page 6 PARTS SPECIFIC TO MODEL GRHD-2PD ITEM DESCRIPTION 6A Glass Door, Inner 6B Glass Door, Inner, Mirror 7A Glass Door, Outer 7B Glass Door, Outer, Mirror 8A Relay - SPST 8B Relay - DPDT 8C Relay - DPST 9A Heating Element, Base Quantity 9B Heating Element, Base Quantity...
- Page 7 PARTS SPECIFIC TO MODEL GRHDH-2P ITEM DESCRIPTION 6A Glass Door, Inner 6B Glass Door, Inner, Mirror 7A Glass Door, Outer 7B Glass Door, Outer, Mirror 8A Relay - SPST 8B Relay - DPDT 8C Relay - DPST 9A Heating Element, Base Quantity 9B Heating Element, Base Quantity...
- Page 8 PARTS SPECIFIC TO MODEL GRHDH-2PD ITEM DESCRIPTION 6A Glass Door, Inner 6B Glass Door, Inner, Mirror 7A Glass Door, Outer 7B Glass Door, Outer, Mirror 8A Relay - SPST 8B Relay - DPDT 8C Relay - DPST 9A Heating Element, Base Quantity 9B Heating Element, Base Quantity...
- Page 9 PARTS SPECIFIC TO MODEL GRHD-3P ITEM DESCRIPTION 6A Glass Door, Inner 6B Glass Door, Inner, Mirror 7A Glass Door, Outer 7B Glass Door, Outer, Mirror 8A Relay - SPST 8B Relay - DPDT 8C Relay - DPST 9A Heating Element, Base Quantity 9B Heating Element, Base Quantity...
- Page 10 PARTS SPECIFIC TO MODEL GRHD-3PD ITEM DESCRIPTION 6A Glass Door, Inner 6B Glass Door, Inner, Mirror 7A Glass Door, Outer 7B Glass Door, Outer, Mirror 8A Relay - SPST 8B Relay - DPDT 8C Relay - DPST 9A Heating Element, Base Quantity 9B Heating Element, Base Quantity...
- Page 11 PARTS SPECIFIC TO MODEL GRHDH-3P ITEM DESCRIPTION 6A Glass Door, Inner 6B Glass Door, Inner, Mirror 7A Glass Door, Outer 7B Glass Door, Outer, Mirror 8A Relay - SPST 8B Relay - DPDT 8C Relay - DPST 9A Heating Element, Base Quantity 9B Heating Element, Base Quantity...
- Page 12 PARTS SPECIFIC TO MODEL GRHDH-3PD ITEM DESCRIPTION 6A Glass Door, Inner 6B Glass Door, Inner, Mirror 7A Glass Door, Outer 7B Glass Door, Outer, Mirror 8A Relay - SPST 8B Relay - DPDT 8C Relay - DPST 9A Heating Element, Base Quantity 9B Heating Element, Base Quantity...
- Page 13 PARTS SPECIFIC TO MODEL GRHD-4P ITEM DESCRIPTION 6A Glass Door, Inner 6B Glass Door, Inner, Mirror 7A Glass Door, Outer 7B Glass Door, Outer, Mirror 8A Relay - SPST 8B Relay - DPDT 8C Relay - DPST 9A Heating Element, Base Quantity 9B Heating Element, Base Quantity...
- Page 14 PARTS SPECIFIC TO MODEL GRHD-4PD ITEM DESCRIPTION 6A Glass Door, Inner 6B Glass Door, Inner, Mirror 7A Glass Door, Outer 7B Glass Door, Outer, Mirror 8A Relay - SPST 8B Relay - DPDT 8C Relay - DPST 9A Heating Element, Base Quantity 9B Heating Element, Base Quantity...
- Page 15 PARTS SPECIFIC TO MODEL GRHDH-4P ITEM DESCRIPTION 6A Glass Door, Inner 6B Glass Door, Inner, Mirror 7A Glass Door, Outer 7B Glass Door, Outer, Mirror 8A Relay - SPST 8B Relay - DPDT 8C Relay - DPST 9A Heating Element, Base Quantity 9B Heating Element, Base Quantity...
- Page 16 PARTS SPECIFIC TO MODEL GRHDH-4PD ITEM DESCRIPTION 6A Glass Door, Inner 6B Glass Door, Inner, Mirror 7A Glass Door, Outer 7B Glass Door, Outer, Mirror 8A Relay - SPST 8B Relay - DPDT 8C Relay - DPST 9A Heating Element, Base Quantity 9B Heating Element, Base Quantity...
- Page 17 NOTES Form No. GRHDRP-1002 Printed in U.S.A.
- Page 18 NOTES Form No. GRHDRP-1002 Printed in U.S.A.
- Page 19 NOTES Form No. GRHDRP-1002 Printed in U.S.A.
- Page 20 Alpro Service Co. IOWA Brooklyn Electric Motor Service Co. Davenport 319-323-1823 Parts & Service Fax (800) 690-2966 Form No. GRHDRP October 2002 HATCO AUTHORIZED PARTS DISTRIBUTORS NEW YORK (continued) Appliance Installation 502-367-1788 Buffalo Northern Parts Dist. Plattsburgh J. B. Brady, Inc.
