STEP 3: INSTALLING THE WALL MOUNT PLATE

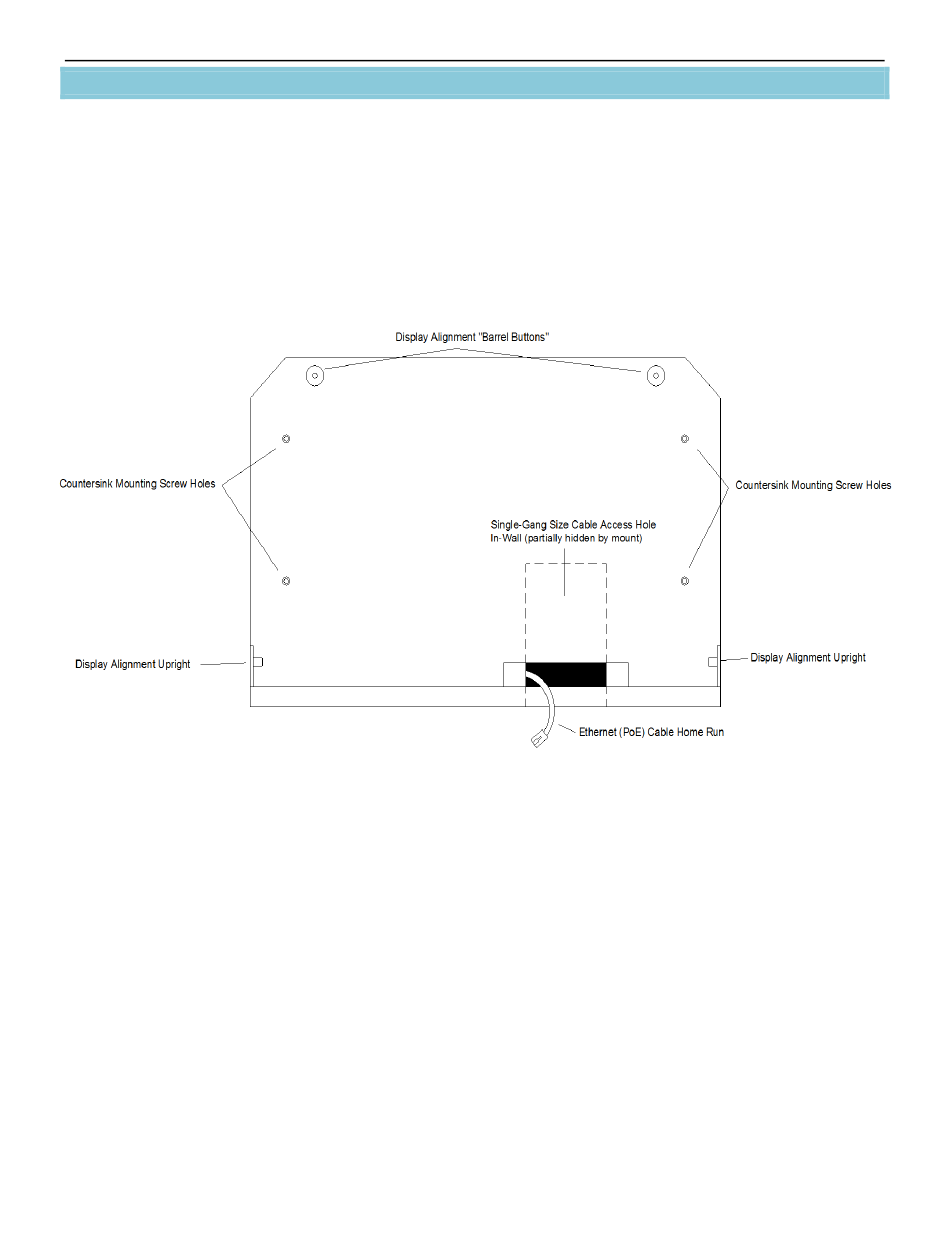

A. If installing the SignWave display device on hollow drywall, then insert screw anchors at each of the
four countersink mounting screw locations marked in the diagram below.
B. Ensure the signal cable(s) are routed through the access port and install the wall mount using flat
head (counter-sink ready) screws applicable for anchors used in previous step. Verify level again
prior to torqueing screws completely.
When installing the SignWave door card device on surfaces other than hollow drywall, ensure proper
fasteners are used (deck screws into wood, masonry screws or bolts and masonry anchors into concrete
or block, toggle bolts into metal studs, etc...).
Even though the SignWave display devices are relatively lightweight, we recommend using anchors
capable of holding no-less than 50 pounds each (since better the installation, the higher the anti-
sabotage rating).
