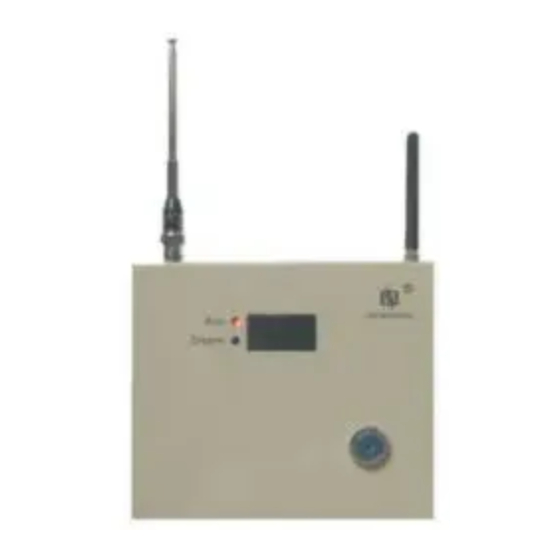

- Page 1 Manual Of Networking Alarm Panel HB-2050G HB-4040G HB-5050G...
- Page 2 网络报警主机使用说明 1.HB-2050G...
- Page 3 网络报警主机使用说明 HB-2050G Connections of cables: SIM Card Slot: Only 2G SIM Card is available(Mini SIM) Power Interface:DC15V/1.5A Output Interface：DC12V/0.5A（Linkage other devices--Siren and etc） Set Button: Restore to the factory default Technical Parameters: Working Voltage DC 15V/1.5A Wireless Frequency 434.6MHz FSK...
- Page 4 网络报警主机使用说明 2.HB-4040G...
- Page 5 网络报警主机使用说明 HB-4040G Connections of cables:...
- Page 6 网络报警主机使用说明 SIM Card Slot: Only 2G SIM Card is available(Mini SIM) Power Interface:DC15V/1.5A Output Interface：DC12V/0.5A（Linkage other devices--Siren and etc） Set Button: Restore to the factory default Technical Parameters: Working Voltage DC 15V/1.5A Backup Battery 4×3.2V LiFePO4 Battery Wireless Frequency 434.6MHz FSK GSM Frequency 900/1800/1900/2100 MHz Dimension...
- Page 7 网络报警主机使用说明 HB-5050G Connections of cables...
- Page 8 网络报警主机使用说明 HB-5050R Connections of cables Outputs Jumpers(Disable)：used to control the warning board status +12: If AC powered,work normally;If DC powered,work abnormally...
- Page 9 网络报警主机使用说明 OUT: Alarming Mode,the warning board will light; Arm or Disarm Mode,the warning board will blink; Warning Board Interface：DC12V/0.5A outputs Siren Interface：DC12V/0.5A outputs Power Interface:DC15V/1.5A SIM Card Slot: Only 2G SIM Card is available(Mini SIM) Set Button: Restore to the factory default Technical Parameters: Working Voltage DC 15V/1.5A...
- Page 10 5.1 Phone Configuration Smart Phone Above Android(4.0) Operating System ≥2G RAM ≥2G Storage Memory 5.2 Phone Setup→ Setting → Permissions → Saferhomee Write and delete SMS messages → Accept Read SMS messages → Accept Change mobile data connectivity → Accept...
- Page 11 网络报警主机使用说明 Change WLAN connectivity → Accept Setting → Permissions → Autostart Set Saferhomee can autostart 5.3 App Interface(Home):...
- Page 12 网络报警主机使用说明 All Arm: On receiving all the alarm information mode Disarm: On not receiving normal alarm information mode Part Arm: Disable Mute: Make the app silence when alarm SOS：Emergency Help 5.4 Account Setup(Account) Press”Account”--- enter password:123456...
- Page 13 网络报警主机使用说明 SIM Card of the alarm panel supports SMS?Please choose Yes/No according to functions of the SIM Card(If Yes,please fill the SIM card number) SIM Card Number：The SIM Card number of the alarm panel Alarm Panel ID：Fill the 15-digits Serial Number/Scan the OR Code Phone Number：The SIM Card number of the phone installed the App Setup Password：...
- Page 14 网络报警主机使用说明 Phone Number...
- Page 15 网络报警主机使用说明 Total 4 groups phone number can be set Standard Alarm Center SMS Number:Disable Transfer Alarm Center SMS Number:Disable Detector...
- Page 16 网络报警主机使用说明 Select the zone number(1--99) Select the zone type(Normal,Emergency,Fire,Help,Gas,Water) Fill the Notes and save the notes Press”Match “----and then trigger the detector once SMS Mode...
- Page 17 网络报警主机使用说明 Factory Default is Enable;If select the “Disable”,the alarm panel and the app will not keep communication if on offline status.. Remote Control...
- Page 18 网络报警主机使用说明 Select the remote control(1#--4#) Press “+” to add the remote control Press “-” to delete the remote control Timing Time...
- Page 19 网络报警主机使用说明 Query Timing Time: Querythe last timing time 2 groups of arm/disarm time can be set...press”√ ”to confirm. Password...
- Page 20 网络报警主机使用说明 Note:The password should be 6-digits Ademco ID &Server’s Domain Address are used to communicate with the SAFERHOMEE Alarm Software...(Disable) Time(Disable)
