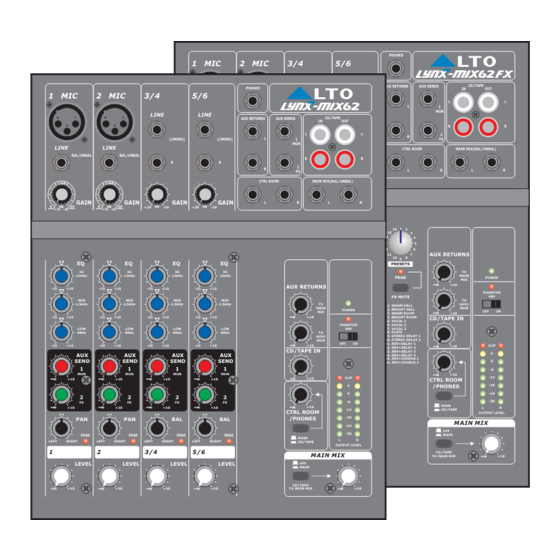

Alto LYNX-MIX62 Service Manual
Hide thumbs Also See for LYNX-MIX62:

Advertisement

MODEL: ELVIS 12S/12M/15S
MODEL: LYNX-MIX62/62FX
www.altoproaudio.com
Version 1.0

Advertisement

loading
Need help?

Need help?

Do you have a question about the LYNX-MIX62 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Alto LYNX-MIX62

  • Page 1 MODEL: ELVIS 12S/12M/15S MODEL: LYNX-MIX62/62FX www.altoproaudio.com Version 1.0...
  • Page 2: Table Of Contents

    CONTENT 1. Introduction…………………………..…………………………………….…….1 2. Specification……………………..………………………………………….…...2 3. Block Diagram……………………………..…………………………….……..4 4. Schematic Diagram…………………………………..…………………….…...5 5. Wiring Diagram…………………………………………………………………….12 6. PCB Layout.....................13 7. Exploded View & Mechanical Parts List…………..……………….………16 8. BOM……............………………....………..18...
  • Page 3: Introduction

    Line-level inputs for small live performances, small studio recording and general PA applications, your LYNX-MIX62(FX) also includes a 24-Bit digital multi-effect with 16 Factory Presets . There is a 3-band EQ on all input channels and separate Main Mix and Control Room outputs for operation with different volume settings.
  • Page 4: Specification

    2. Specification LYNX-MIX 62/62FX Type 6 CHANALE MIXER Microphone Input Electronically Balanced, Discrete Input Configuration Frequency Response 20Hz to 22kHz, +/-3dB Distortion( THD&N) <0.01% At + 4dBu, 1kHz Gain range 0 dB to 50 dB (MIC) 70 dB CH MIC INPUT→MAIN OUT(Unbalanced) 80 dB CH MIC INPUT→CTRL ROOM OUT 80 dB CH MIC INPUT→HEAD PHONE OUT 70 dB CH MIC INPUT→TAPE OUT...
  • Page 5 LYNX-MIX 62/62FX Impedance All Other Outputs 120 Ohms Hi Shelving ±15 dB @12 kHz Mid bell ±12 dB @2.5 kHz Equalization Low shelving ±15 dB @80 Hz A/D And D/A Converters 24 Bit DSP Resolution 24 Bit WARM HALL,BRIGHT HALL,WARM ROOM,BRIGHT ROOM,VOCAL1,VOCAL2,VOCAL3,PLATE,STEREO DSP Section DELAY1,STEREO...
  • Page 6: Block Diagram

    3. Block Diagram 3. Block Diagram --- 4 ---...
  • Page 7: Schematic Diagram

    4. Schematic Diagram --- 5 ---...
  • Page 8 --- 6 ---...
  • Page 9 --- 7 ---...
  • Page 10 --- 8 ---...
  • Page 11 --- 9 ---...
  • Page 12 --- 10 ---...
  • Page 13 --- 11 ---...
  • Page 14: Wiring Diagram

    5. Wiring Diagram --- 12 ---...
  • Page 15: Pcb Layout

    6. PCB Layout LYNX-MIX62/62FX --- 13 ---...
  • Page 16 --- 14 ---...
  • Page 17 --- 15 ---...
  • Page 18: Exploded View & Mechanical Parts List

    7. Exploded view & Mechanical parts list --- 16 ---...
  • Page 19 Mechanical Parts List S/N Part No. Description Specification MA07944 ZC-Front panel -RS SR#2000 5249 LYNX-MIX62FX ALTO_V1.0 HI00026 Power suply SW-RS RA12KKATOF 2P MB06338 ZB-chassis-RS-5249 LYNX-MIX62FX_V1.0 MG00304 Copper column-RS M3*14*0.5PH HK10817 K-PCB P-SKU-FX04(LYNX-MIX62FX)-DIP MG00244 Copper column-RS M3*10*0.5PH NI04004 Plastic knob-RS-C-ABS φ10*16.5 90°_V1.0 NI02252 Knob cover-RS-C-ABS φ7*3.5 072Cblue...
  • Page 20: Bom

    8. BOM List LYNX-MIX62 BOM List S/N Part No. Description Specification Insert location Remark MIXING CONSOLE LYNX-MIX62_ALTO_230V NI04004 knob φ10*16.5 90°_V1.0 Main board*8,DSP*6,front MG00041 screw M3*6 panel fixed chassis* 1 2 ME00060 MIC jack JY-6351G-02-250 MF00061 MIC jack φ9.6*φ13*0.5t NI02252 knob cover φ7*3.5 072C...
  • Page 21 VR1,VR9 838Z10K MJ01143 heat sink-RS-ACT S-6_V1.4 MJ01536 AL plate-RS-CT 4t*2440*1220mm 32.40kg AC00603 lead free soldering bar S100 HK11649 PC board-RS P-LYNX-MIX62-AI RA01259 fixed resistor 1/4W 47Ω R282,R283 RA01262 precise resistor 1/4W 6.81KΩ ±1% R9,R10,R11,R12 RA01325 fixed resistor 1/8W 4.7Ω R280 RA01328 fixed resistor 1/8W 12KΩ...
  • Page 22 S/N Part No. Description Specification Insert location Remark HK11644 PC board-RS P-LYNX-MIX62-SMD SF00056 transistor MMBT3904(SOT23)/(PHI) TR1,TR2,TR3,TR4 RD00062 SMD fixed resistor 1/10W 18Ω ±5% 0603 R21,R22 RD00074 SMD fixed resistor 1/10W 270Ω ±5% 0603 R251 SF00053 transistor MMBT3906(SOT23)/(PHI) TR5,TR6 SE00008 SMD rectifier diode...
  • Page 23 S/N Part No. Description Specification Insert location Remark RD00371 SMD precise resistor 1/10W 51.1KΩ ±1% 0603 R1,R2,R3,R4 R125,R126,R127,R128,R167,R168,R169, RD00093 SMD fixed resistor 1/10W 4.7KΩ ±5% 0603 R170,R175,R176,R177,R178,R179 RD00274 SMD precise resistor 1/10W 100Ω ±1% 0603 R198,R199,R200,R201,R203,R204 RD00111 SMD fixed resistor 1/10W 47KΩ...
  • Page 24 Description Specification Insert location Remark Separately insert between HA01919 jump Pin 3 & Pin 5, Pin 4 & Pin HA02249 wire φ0.6 MA08065 panel-RS LYNX-MIX62 ALTO_V1.0 MA07935 panel-RS LYNX-MIX62 AE00055 solvent solvent AE00235 paint-RS 5249 LYNX-MIX62 MA07934 panel-RS 1.0t*200*250*58_V1.0 MJ00061 iron board 1*2135*1220 20.45kg...
  • Page 25 φ4*12mm NI00248 sleeve φ4*1000mm NE19401 label-RS LYNX-MIX62FX_V1.0 NH00012 bond paper 0.04*1M NI00015 membrane 0.04*1M NE05004 label ALTO PF_V1.2 NH00334 cone paper 0.040*1m NI00498 self-adhere foot cushion 12.7*7*6mm(SF-005) MG00473 copper pillar M3*11*0.5PH Fix DSP board NI01863 key-RS φ5.5*W10*7.5_V1.3 HK10816 PC board-RS...
  • Page 26 S/N Part No. Description Specification Insert location Remark B50KΩ RD09F1130048- VR5,VR7,VR8,VR13,VR15,VR16,VR23,V RC00445 potentiometer 50K2B(SAS1);30F R24,VR31,VR32,VR34 B50KΩ XV012313YGPV30F- RC00669 potentiometer-RS VR18,VR19,VR20,VR26,VR27,VR28 3B50K C.C B50KΩ RD12L1230230- RC00448 potentiometer VR21,VR29,VR33,VR35,VR36,VR37 50K2B*2(SAS1);30F W50KΩ RD09F113A224- RC00359 potentiometer VR6,VR14,VR22,VR30 50K4BT(SAS1);30F-C Z10KΩ XV09213YNPV30F- RC00781 potentiometer-RS VR1,VR9 838Z10K B10KΩ...
  • Page 27 S/N Part No. Description Specification Insert location Remark RD00073 SMD fixed resistor 1/10W 220Ω ±5% 0603 R426 RD00059 SMD fixed resistor 1/10W 0.0Ω ±5% 0603 RD00083 SMD fixed resistor 1/10W 1.0KΩ ±5% 0603 R418 RD00088 SMD fixed resistor 1/10W 2.2KΩ ±5% 0603 R424 RD00091 SMD fixed resistor 1/10W 3.3KΩ...
  • Page 28 S/N Part No. Description Specification Insert location Remark C51,C52,C53,C54,C55,C56,C57,C58,C59 ,C60,C61,C62,C63,C64,C65,C66,C67,C6 8,C69,C70,C71,C72,C73,C74,C75,C76,C CB00194 electrolytic capacitor 47uF/25V φ5*11mm 77,C78,C79,C80,C81,C82,C83,C84,C85, C86,C87,C88,C89,C90,C91,C92,C93,C94 ,C95,C96,C97,C98,C99,C100,C101,C102, C103,C104,C105,C106,C107 CB00334 electrolytic capacitor-RS 47uF/50V φ6.3*11mm C11,C12,C13,C14 HK10821 PC board-RS P-LYNX-MIX62FX-SMD RD00002 SMD fixed resistor 1/8W 0.0Ω ±5% 0805 RD00116 SMD fixed resistor 1/10W 100KΩ...
  • Page 29 S/N Part No. Description Specification Insert location Remark R125,R126,R127,R128,R167,R168,R169, RD00093 SMD fixed resistor 1/10W 4.7KΩ ±5% 0603 R170,R175,R176,R177,R178,R179 RD00347 SMD fixed resistor 1/10W 510Ω ±5% 0603 R244,R245 RD00371 SMD precise resistor 1/10W 51.1KΩ ±1% 0603 R1,R2,R3,R4 RD00079 SMD fixed resistor 1/10W 560Ω...
  • Page 30 HC00923 connector-RS 3mm/6mm AC00603 lead free soldering bar S100 P-SKU-FX04(LYNX-MIX62FX)- HK10822 PC board-RS SG00166 SMD integrated circuit TY-2 ALTO(GMCODE:105022) U2 SG00147 SMD integrated circuit CHEF DSP(GMCODE:105022) SG00068 SMD integrated circuit 74HC14DT(SO14)/(PHI) IC10 RD00068 SMD fixed resistor 1/10W 100Ω ±5% 0603...
  • Page 31 NI02386 konb-RS φ14*13mm NF00061 assurance card-RS-C ALTO_V1.1 NB06410 carton-RS-CT LYNX-MIX62FX ALTO_V1.1 NB06408 inner case-RS-CT LYNX-MIX62FX ALTO_V1.0 NF03278 user manual-RS LYNX-MIX62/62FX_V1.0 NH00149 paper 889*640mm NA01015 silk wadding-RS-CT LYNX-MIX62FX front_V1.0 NA01014 silk wadding-RS-CT LYNX-MIX62FX right_V1.0 NA01013 silk wadding-RS-CT LYNX-MIX62FX left_V1.0 User Manual package NA00860 PE bag-RS 0.04t*280*220mm_V1.0...
