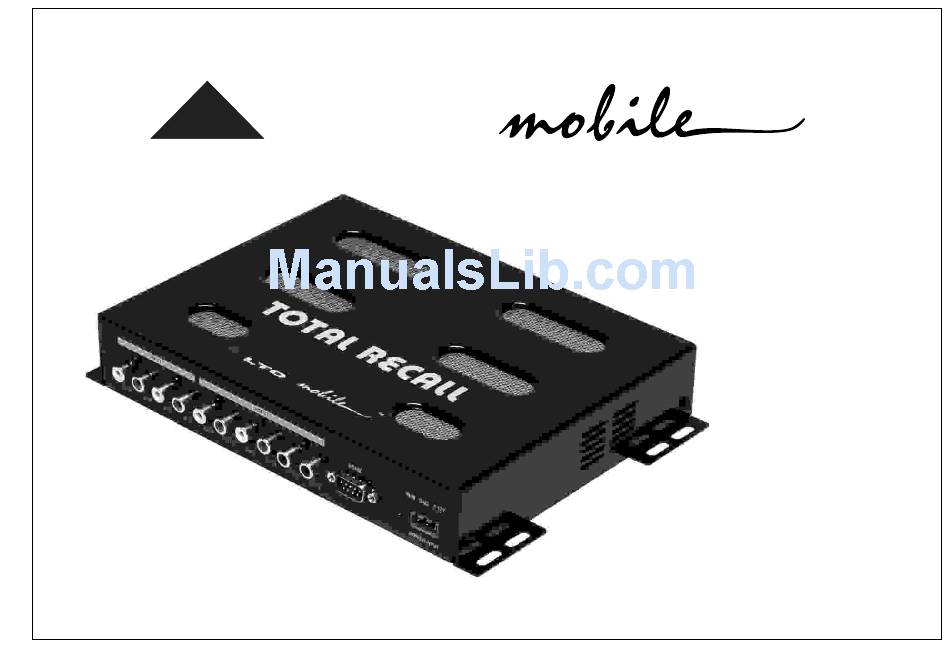

- Page 1 TOTAL RECALL User's Manual Version 1.0 ---English---...
- Page 2 If you've not yet had TOTAL RECALL installed in your vehicle, that is obviously the first thing you will need to do. We strongly recommend that you have the unit professionally installed and set-up by a specialist company authorized by the ALTO Mobile distributor in your country.
- Page 3 IMPORTANT recommend that installation be carried out by an authorized mobile electronics installation company. Please contact your local ALTO Mobile distributor for a list of authorized installers in your area. DO NOT DISASSEMBLE: No user serviceable parts inside; refer servicing to qualified personnel only.
- Page 4 OUT 6 SUB-WOOFER TOTAL RECALL is a 4 input, 6 output device offering several forms of signal processing, as outlined in the above block diagram. The Front Left & Right Channels are summed (i.e. mixed together) to provide an additional mono Subwoofer channel with its own independent set of editable parameters.
- Page 5 Opening Screen (PC Editor) A Windows compatible PC Editor is available for free download from our web site. To get a copy, go to http://www.altomobile.com/html/support_forum.html and click on the link "Data Resources / Downloads" and then "Software Downloads". When you launch the software editor on your PC, you will see the opening screen above (later software USEFUL USEFUL versions may differ).
- Page 6 PC to the 25-pin port - damage may result if you do. If you have had your TOTAL RECALL professionally installed and set-up for you, there should be no need to alter any set- tings. The unit features a password access system that your installer may have set in Lock mode to safeguard the settings.
- Page 7 Select NETWORK SCAN. The program will scan your PC's serial ports. When Done, it will present a list of IDs. The ID number of TOTAL RECALL is 1 (this cannot be changed). The ID list will show if TOTAL RECALL (ID 1) is correctly connected or not.
- Page 8 Parameter Menus & System Set-up If your TOTAL RECALL has not been set-up yet, or if you want to replace the existing set-up, you can create a new named profile (NEW UNIT) within the PC EDITOR. Here's how: Select NEW UNIT. In the window that appears, type a new name for the unit you are creating (this is optional). The GANGING* option should generally be left at its default setting (unchecked).
-
Page 9: Channel Delay
'pages' where you can set the parameters using virtual knobs and sliders or by typing the values. Here is a brief overview of the various 'pages' that make up the TOTAL RECALL PC EDITOR. Each is explained in more detail in the next section. - Page 10 PRINT: Not a 'page' like those above, but an important function worth highlighting here. From the FILE menu, selecting PRINT provides a print-out of all the parameters of the TOTAL RECALL, together with the GLOBAL graph. View it before printing by selecting PRINT PREVIEW.
- Page 11 HIGH PASS/LOW PASS FILTERS (HPF & LPF): TOTAL RECALL is equipped with independent High-Pass filters for each of the Front & Rear channels, and a Low-Pass filter for the Subwoofer channel. For each filter there are 9 filter type/slope options:...
- Page 12 3-band full parametric equalization is provided on each of the channels. With this type of equalizer, frequency, gain and bandwidth are all variable. In addition, TOTAL RECALL allows you to select from a list of different EQ contours. Freq: The center frequency of each band can be set between 16Hz and 16,000Hz.
- Page 13 TOTAL RECALL is different. Firstly, TOTAL RECALL has 4 independent inputs feeding 5 independent output channels. But what really makes it different is that it's designed for use with full-range speaker systems that are either actively driven (i.e. the power amplifier stage is part of the speaker itself or forms a matched package that cannot be separated), or speaker systems that use passive crossovers after the power amplifier stage.
- Page 14 Parameter Menus & System Set-up What drives this Dynamic EQ feature is known in pro audio circles as a multiband compressor. It provides the ability to digitally split the full-range audio input signal on each of the Front and Rear Channels into low, mid and high bands and set some parameters that will cause the gain in the high and low bands to adjust automatically (that is, dynamically) in response to a change in the input level.
- Page 15 Dynamic EQ function. GAIN CONTROL SECTION: TOTAL RECALL has no analog input or output gain controls - output level adjustment is handled entirely in the digital domain. The input stage will accept a maximum unclipped input level of 2V rms.
- Page 16 Parameter Menus & System Set-up DYNAMIC GAIN CONTROL (LIMITER): Each channel has its own independent COMPRESSOR/LIMITER, allowing you to determine the amount of level gain (i.e. increase in volume) above a threshold point that you set. This helps maintain a more consistent listening level and both protects and extends the performance of your speakers.
- Page 17 You can keep the default filename or type one of your own. When you have done this, take TOTAL RECALL offline and then online again. This will force the system to do a network scan.
- Page 18 Hardware Programmer (optional item) An optional wired Programmer will be made available for setting the parameters of TOTAL RECALL as an alternative to using a PC. A 25-pin socket is provided on the unit ready to accept the Programmer. Please check with your dealer for...
- Page 19 Mounting TOTAL RECALL TOTAL RECALL has two fixing 'ears' at each side, allowing it to be firmly screwed to a suitable surface. Take care not to mount the unit where it may become wet or subject to damage from items placed in the trunk area. The unit may be mounted vertically or horizontally, but avoid mounting it upside-down (i.e.
- Page 20 The terminal marked REM (remote) accepts a +12V switched input from the source unit (Cassette or CD player). When the source unit is switched on, a pulse is sent down this line. TOTAL RECALL senses this pulse and switches itself on.
- Page 21 Before reconnecting power to the circuit, double check all connections are correct and secure. On turning on the CD or Tape player, the power-on LED next to the power input terminal block of TOTAL RECALL should light to show the unit is receiving power.
- Page 22 RECALL (the power amplifier or the speaker itself). Check the amplifier gain controls and any input switching options (such as built-in crossover networks). If the fault moves to the other speaker then your TOTAL RECALL may be faulty- leave it installed in your system and return to your dealer so that they can check it.
- Page 23 ALTO warrants the mechanical and electronic components of this product to be free of defects in material and work- manship for a period of one (1) year from the original date of purchase. If any defects occur within the specified warranty period, in accordance with the warranty regulations described below, ALTO shall, at its sole discretion, either repair or replace the product.
- Page 24 Specifications Channel Layout: 4 Inputs / 6 Outputs (2 mono Sub) (phono type) Max. input/output level: Inputs 2V rms / Outputs 2.2V rms (0dB). Conversion: 24 bits A-D and D-A Freq. Response: 20Hz - 20KHz (+/- 1dB) S/N Ratio: >95dBA 0.05% (20Hz - 20KHz) THD+N: Filters:...
- Page 25 Tel: 886-4-22313737 email: info@altomobile.com Fax: 886-4-22346757 All rights reserved to ALTO Mobile. Due to continued development in response to customer feedback, product features, specifications and/or internal/external design may be changed without prior notice. No photocopying, translation or reproduction of any part of this user manual is allowed without prior written permission.Copyright...
