Summary of Contents for Foxfury Lighting Solutions D3060-TC

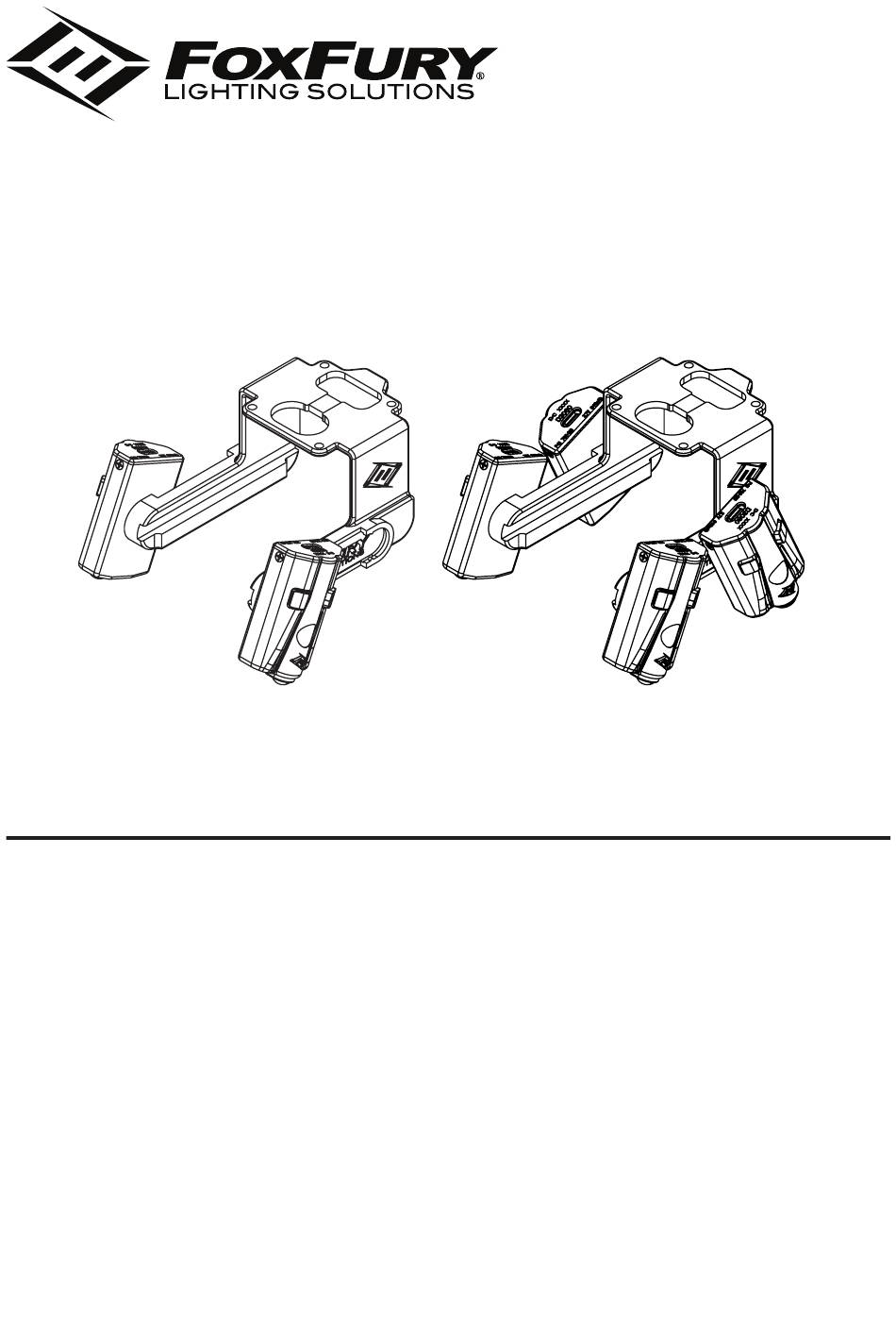

- Page 1 D3060-TC LIGHT SYSTEM FOR SKYDIO X2 D3060-TC LIGHT SYSTEM FOR SKYDIO X2 700-320 | 700-321 PRODUCT MANUAL...
-
Page 2: Table Of Contents
TABLE OF CONTENTS INTRODUCTION Reference Guide Overview Physical Characteristics BATTERY Charging the Battery OPERATIONAL MODES Modes, Output & Battery Life 5 - 6 INSTALLATION 6 - 7 CARE/CLEANING WARNINGS/WARRANTY 8 - 9 CONTACT FOXFURY IMPORTANT! Please read this manual before using your D3060 for Skydio X2 as it relays beneficial operating and safety Information. -
Page 3: Reference Guide
CHARGING PORT SKYDIO X2 CHARGING PORT SADDLE MOUNT USB-C SNAP LOCK (4 EA) WHAT'S INCLUDED D3060-TC 4 Light System D3060-TC 2 Light System P/N 700-321 P/N 700-320 SKYDIO X2 Saddle Mount SKYDIO X2 Saddle Mount D3060 Light (4 ea) D3060 Light (2 ea) -
Page 4: Overview
OVERVIEW The Skydio X2 Light System is a custom saddle and D3060 lights that is proudly made in the USA. It is designed specifically for the Skydio X2 drone. ® This product was developed independently by FoxFury for the Skydio ®... -
Page 5: Battery
BATTERY CHARGING THE BATTERY Connect the provided USB-C Cable to the Charging Port, and to a USB port. While charging, a red light will be on. Once charged, it will turn to green. Charge time should be approximately 1.5 hours. WARNINGS: Unplug the light once charged to avoid impacting battery life. -
Page 6: Installation
OPERATIONAL MODES Press the Dorsal Light Power/Mode Switch once to turn the Dorsal Light on to HIGH. Press the Dorsal Light Power/Mode Switch again to turn the Dorsal Light to LOW. Press the Dorsal Light Power/Mode Switch again to turn the Dorsal Light to STROBE. - Page 7 Install D3060 to Saddle. Align the 360° swivel with snap lock location on the desired mount location of the saddle, and snap D3060 light in place. Spin the light and tug to make sure it is properly attached. (Images below show D3060 installed on the top Snap Lock location.
-
Page 8: Care/Cleaning
Do not use under the influence of drugs or alcohol. PRODUCT NAME & PART NUMBER: ONE YEAR WARRANTY D3060-TC 2 Light System for Skydio X2, 700-320 FoxFury , LLC (“FoxFury”) warrants this product to be free from defects D3060-TC 4 Light System for Skydio X2,... -
Page 9: Contact Foxfury
THIS IS THE ONL Y WARRANTY , EXPRESSED OR IMPLIED, INCLUDING ANY WARRANTY OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE. INCIDENTAL, CONSEQUENTIAL OR SPECIAL DAMAGES ARE EXPRESSL Y DISCLAIMED EXCEPT WHERE SUCH LIMITATION IS PROHIBITED BY LAW. You may have other specific legal rights which vary by jurisdiction. - Page 10 FOXFURY .COM 06/2022...
