QUICK START GUIDE
RUGO DRONE MOUNTS
FOR YUNEEC H520 & TYPHOON H (SET OF 2)
P/N 85-023

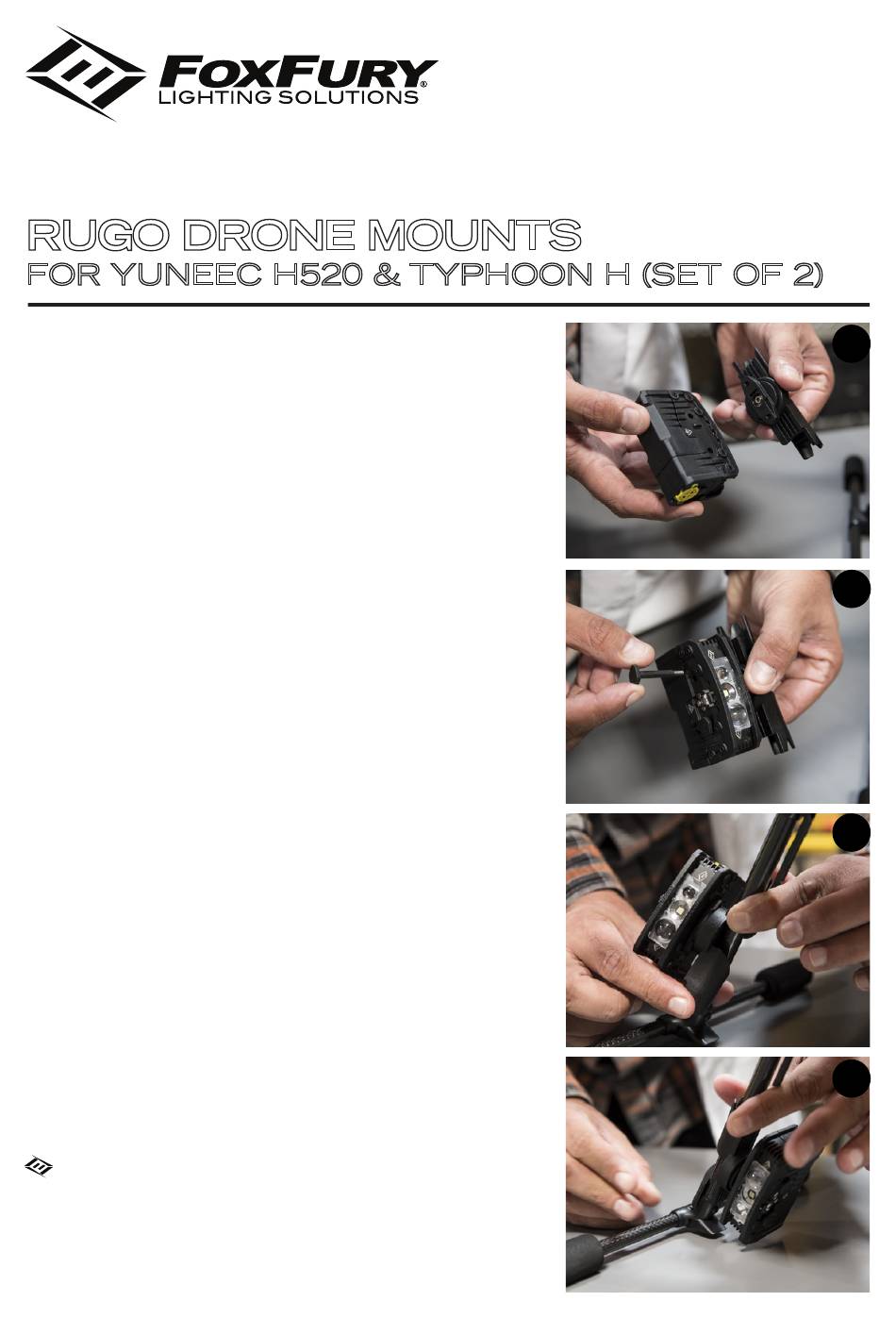

HOW TO ATTACH MOUNTS
1. Start by matching the correct side of the
RUGO to the Drone Mount, making sure the
metal tab of the RUGO fits into the Drone
Mount notch.
2. Use the (2) two thumb screws to attach the
RUGO to the Drone Mount.
3. To attach the Drone Mount to the Yuneec
Typhoon Drone, position the open side of the
mount against one of the landing gear legs
and rotate clock-wise until the Mount snaps
into a vertical postition
4. Rotate the Mount 180° on the drone landing
gear leg so that the Rugo light sits inboard
of the drone landing gear (between leg and
camera).
5. Slide the Drone Mount down the drone leg
until it stops.
6. Repeat for both sides.
7. Reverse these steps to remove the Drone
Mounts
WHAT'S INCLUDED:
(2) RUGO Drone Mounts
(2) Thumb Screws
GENERAL MAINTENANCE TIPS
As needed, wash your FoxFury Rugo Drone
Mounts using a soft washcloth, clean water
and a mild soap. When done, pat dry with a
soft cloth.
1
2
3
4-5
4/2018
