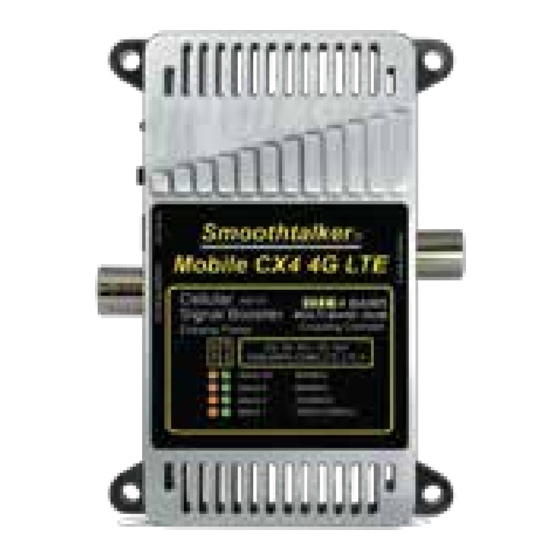

Mobile CX4 4G LTE
Coupling Cradle Connect Mobile
Network Signal Amplifier - Extreme Power
User Manual
Mobile Network
Signal Amplifier
CRADLE TYPE
2G, 3G, 3G+, 4G, 4G+
GSM,HSPA,CDMA,LTE, LTE A
Band 20
Band 8
Band 3
Band 1
30dB 4 BAND
MULTI BAND 30dB
Connect
Extreme Power
800MHz
900MHz
1800MHz
2100MHz
Vehicle
BTEUX430
stealth
POWER
Input - 12-24V Output- 5.5V
SUPPLY
Current: 3.0A
Weight 0.249 kg
Smoothtalker.com
4 BAND
MULTI BAND
30dB
tech
®

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Mobile CX4 4G LTE and is the answer not in the manual?

Questions and answers

Summary of Contents for SmoothTalker Mobile CX4 4G LTE

  • Page 1 Mobile CX4 4G LTE 4 BAND MULTI BAND Vehicle Coupling Cradle Connect Mobile 30dB Network Signal Amplifier - Extreme Power User Manual BTEUX430 Mobile Network 30dB 4 BAND Signal Amplifier MULTI BAND 30dB Connect CRADLE TYPE Extreme Power 2G, 3G, 3G+, 4G, 4G+...
  • Page 2 It is normal for the Amplifier to be quite warm while the phone is in use state. To comply Smoothtalker warranty, this Amplifier must only be operated with cables, antennas, and coupling devices that have been approved for use with this equipment.(Pg. 5)
  • Page 3 Installation 1) Connect the outside antenna to the side of the Amplifier marked as “outside antenna.” Connect the inside antenna to the side of the Amplifier marked as “inside antenna.” 2) Placement Placement: Place the outside antenna in the middle of the vehicle roof. If the vehicle has a sunroof please place the antenna on the roof towards the back window.
  • Page 4 Understanding the LED Indicators RX High Power Attenuation Smoothtalker Oscillation Attenuation ® Mobile CX4 4G LTE Mobile 4 BAND RX/TX Signal Amplifier Band Frequency MULTI BAND 30dB Coupling Connect Extreme Power Band 20 800MHz 2G, 3G, 3G+, 4G, 4G+ GSM, HSPA, CDMA, LTE, LTE A...
  • Page 5 If you need help pls contact techsupport@smoothtalker.com and we will help you determine your cell tower location and get you setup.
  • Page 6 Approved Equipment List Smoothtalker approved accessories most be used with this Amplifier to maintain warranty. COUPLING HOLDERS ANTENNA CABLES BTH Series ACX100, ACX900 CBXmaXfe10,20,30,40,50,60 CBNmaNfe10,20,30,40,50,60 CBGmaGfe 10,20,30,40,50,60 ANTENNAS SEM2, 11, 14, series SEM2M, 11M, 14M, series SEM2LGM, 11LGM, 14LGM, 26LGM series...
  • Page 7 This Amplifier is not user programmable, does not need fine tuning or adjustment. In 2001 SmoothTalker produced the first digital mobile Mobile Network signal Amplifier in North America with FCC and Industry Canada approval. We continue to lead with the most powerful and intelligent Amplifiers in the world.
  • Page 8 230 Earl Stewart Dr. Aurora, ON. Canada L4G6V8, as the manufacturer hereby declares under our sole responsibility that the, Product(s): Mobile Network Signal Enhancer, Model name/s: Smoothtalker : BTEUX430 Mobile CX4, BTEUX415 Stealth M2M X4 Is/are in conformity with the requirements of the RE Directive 2014/53/EU: The radio equipment meets the following essential requirements Article 3.1 a): Health and Safety Conform...
