- Page 1 Side Opening Mid-Sized External Housing with Heater and PoE TPH-4000P Quick Start Guide Please read these instructions carefully before operating the unit and keep for further reference. All the examples and pictures used here are for reference only. The contents of this manual are subject...

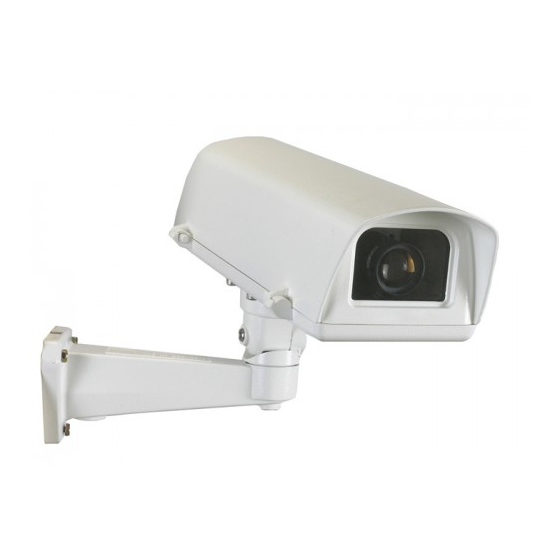

- Page 2 Quick Start Guide Side Opening Mid-Sized External Housing with Heater and PoE The Genie TPH-4000P is a mid-sized side opening external housing with a heater and PoE in a die-cast aluminium alloy powder coated finish. Features • Pressure die-cast aluminium alloy construction with powder coated finish •...
- Page 3 PoE Power Unit Wiring Diagram Inside the internal wiring diagram of TPH-4000P for the window demister. A spare 6 way terminal block is provided at the rear of the housing for the camera when necessary and lens connections. Circuit identified as follows:...
- Page 4 2. Input CAT 5 wire must be 8 core line with standard RJ45 male connector. 3. A workable length is not exceed 100 Meters CAT 5 cable from PoE Hub Switch to TPH-4000P, no guarantee if CAT5 cable beyond 100 Meters. 4. The second heater & IR illuminator are option and IEEE802.3at Injector (TPH948/IJ) is necessary to connect in between PoE hub switch and PoE enclosure.
- Page 5 Quick Start Guide Side Opening Mid-Sized External Housing with Heater and PoE...
- Page 6 Sales +44(0)1707 330541 Enquiries sales@genieproducts.co.uk Website www.genieproducts.co.uk...
