Page 1: Instruction Manual

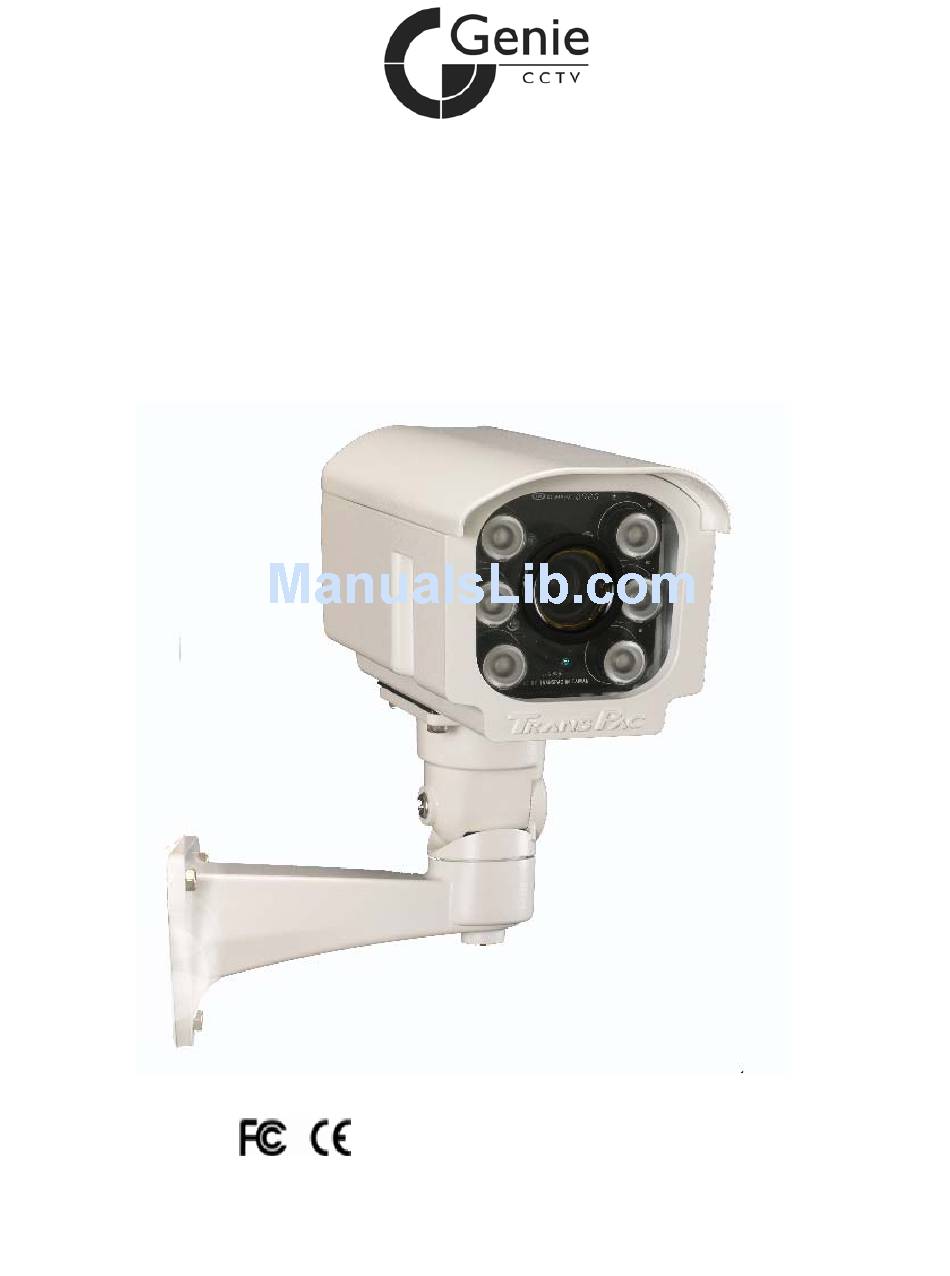

INSTRUCTION MANUAL TPC 8922 Series INFRARED DAY/ NIGHT CCD CAMERA with WDR & OSD IP66 RoHS... -
Page 2: Safety Warning
Safety Warning CAUTION: TO REDUCE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT REMOVE COVER. NO USER SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL. UNPACKING: Unpack carefully. Electronic components can be damaged if improperly handled or dropped. If an item appears to have been damaged in shipment, place it properly in its carton and notify the shipper. -
Page 3: Camera Specifications
CAMERA SPECIFICATIONS INFRARED DAY / NIGHT CAMERA with WDR & OSD MANAUL TPC-8922/24 TPC-8922/240 Model Number Varifocal Manual & Auto IRIS IR Lens 9-22mm Lens Lens Mount Board Mount Back Focus Adjustment Image Device 1/3” Colour Sony Super HAD CCD Sensor Signal System NTSC 768 (H) x 494 (V) -
Page 4: Parts Description
PARTS DESCRIPTION 1. Lens Cap with Demisting Device 2. Temper Glass 3. IR LED : 4pcs/6pcs/7pcs super high power IR LED with refractor. 4. IR Board and IR Board Bracket 5. Camera Board and Camera Board Bracket 6. IR Control Board... - Page 5 PARTS DESCRIPTION / INSTALLATION 7. Blower and Blower Bracket 8. Video Output BNC Female Connector 9. Thermostat Switch : Turns on at 18ﾟC and turns off at 28ﾟC for defogging device 10. OSD setting button 11. VR : To adjust Infrared LED activation level. 12.
-
Page 6: Installation
INSTALLATION... -
Page 7: Zoom And Focus Adjustment
LENS / ZOOM AND FOCUS ADJUSTMENTS Lens Attributes: TPC-8922/24: AC 24V(+/-10%) Power Input. 9-22 mm Auto IRIS and manual varifocal ED-IR lens. Built in IR cut filter removable to get accurate colour. ED lens to protect focus shift. TPC-8922/240: AC 90~240V Power input. 9-222 mm or Auto IRIS and manual varifocal ED lens. - Page 8 OSD SETTING MANUAL: To display OSD menu on screen, press and hold ENTER for at least 2 seconds Press RETURN to exit OSD manual Press UP, DOWN & ENTER to set up the features IMAGE QUALITY 1.IRIS AES : FIX/AUTO 2.
- Page 9 GENIE CCTV LTD. CCTV House, City Park, Watchmead, Welwyn Garden City, Hertfordshire, AL7 1LT Tel +44(0)1707 330541 Fax +44(0)1707 330543 www.geniecctv.com Ver 1.01 GN-June 2010...
