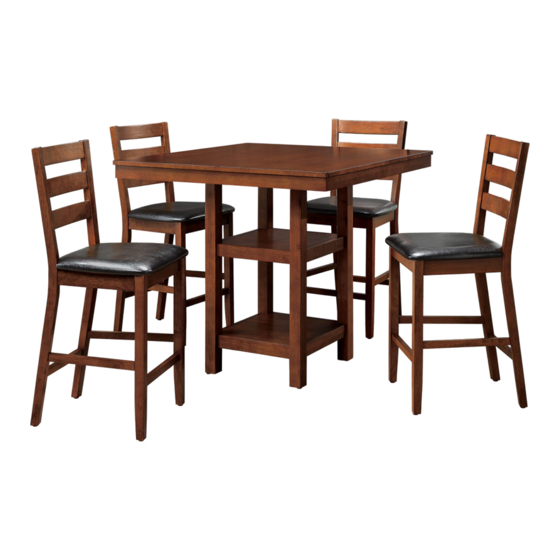

Dalton Park 5pc Dining Set
Stock #: BH12-084-499-04
Lot Number:
Date Purchased:
THIS INSTRUCTION BOOKLET CONTAINS IMPORTANT SAFETY INFORMATION.
PLEASE READ AND KEEP FOR FUTURE REFERENCE.
DO NOT RETURN THE PRODUCT TO THE STORE; individual stores do not stock
STOP
parts. If a part is missing or damaged, call our toll-free customer service line. We will
gladly ship your replacement parts FREE of charge.
NEED HELP? For help with assembly or if you are missing a part, please visit Whalen Furniture at www.whalenstyle.com or call
866-942-5362 (8:30 a.m. to 4:30 p.m., PST, Monday - Friday). Or e-mail to: parts@whalenfurniture.com.
For returns, visit www.walmart.com and follow the steps to return a product.
Date 2017-08-18 Rev. 0001-B Factory: ZHIVIE
Page 1 of 8
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Better Homes and Gardens Dalton Park BH12-084-499-04
Summary of Contents for Better Homes and Gardens Dalton Park BH12-084-499-04
- Page 1 Dalton Park 5pc Dining Set Stock #: BH12-084-499-04 Lot Number: Date 2017-08-18 Rev. 0001-B Factory: ZHIVIE Date Purchased: THIS INSTRUCTION BOOKLET CONTAINS IMPORTANT SAFETY INFORMATION. PLEASE READ AND KEEP FOR FUTURE REFERENCE. DO NOT RETURN THE PRODUCT TO THE STORE; individual stores do not stock STOP parts.
- Page 2 Dalton Park 5pc Dining Set Get Ready! We assembled every piece ourselves to make sure it’s truly easy. Please read all the instructions before starting. ● Carefully unpack and identify each part, component, and piece of ● hardware to make sure you have everything you need for assembly. Lay out each part on a soft, uncluttered surface.
- Page 3 Dalton Park 5pc Dining Set Step 1: HARDWARE PART PART PART PART M6x55mm Bolt x 8 Lock Washer x 8 Flat Washer x 8 Hex Wrench x 1 Unpack the unit and confirm that you have all the hardware and required parts. ●...
- Page 4 Dalton Park 5pc Dining Set Step 2: HARDWARE PART PART PART PART M6x55mm Bolt x 4 Lock Washer x 4 Flat Washer x 4 Hex Wrench x 1 Stand the previous assembly upright. ● Align and attach the Mounting Panels (B) onto the top of Table Legs (C) using four 55 mm ●...
- Page 5 Dalton Park 5pc Dining Set Step 3: HARDWARE PART PART M4 x 25mm Screw x 8 Wood Dowel x 2 Position the Table Top (A) upside down on a level and protective surface as shown. ● Insert 2 Wood Dowels (7) into the middle holes on the Table Top (A). Flip the assembled ●...
- Page 6 Dalton Park 5pc Dining Set Step 4: HARDWARE PART PART PART PART M6 x 50mm Bolt x 6 Lock Washer x 6 Flat Washer x 6 M4 x 38mm Screw x 4 Lay one Chair Backrest (E) on a level and protective surface with the threaded inserts facing ●...
- Page 7 Dalton Park 5pc Dining Set Step 5: HARDWARE PART M4 x 32mm Screw x 4 Support surface Stand assembled chair upright on a flat surface. Press down Side Rails (H) to even all legs. ● Now, tightly fasten all the Bolts and Screws. Flip last assembly upside down and attach to the bottom of Cushion (F), secure with four ●...
- Page 8 Dalton Park 5pc Dining Set Weight limit: 400 lbs. /181.4 kgs. Weight limit: 300 lbs. /136.1 kgs. Weight limit: 100 lbs. /45.4 kgs. WARNINGS This unit is intended for use only with the maximum weights indicated. Use with products heavier than the maximum weights indicated may result in instability causing possible injury.
