Better Homes and Gardens Bryant Series Assembly Manual

Headboard
Hide thumbs Also See for Bryant Series:

Advertisement

Available languages

Available languages

Quick Links

Download this manual
If you have any questions regarding assembly or if parts are missing, DO NOT return this item to the
store where it was purchased. Please call our customer service number and have your instructions
and parts list ready to provide the model name, part name or factory number:
Pacific Standard Time: 8:30 a.m. - 4:30 p.m., Monday - Friday
Or visit our web site 24 hours a day, 7 days a week for product assistance at
THIS INSTRUCTION BOOKLET CONTAINS IMPORTANT SAFETY INFORMATION.

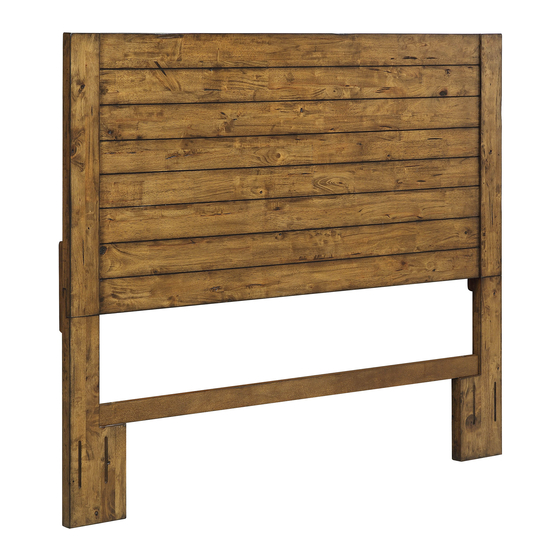

Bryant Headboard
Stock # BH17-084-099-53
ADULT ASSEMBLY REQUIRED
www.whalenstyle.com
Or e-mail your request to parts@whalenfurniture.com
PLEASE READ AND KEEP FOR FUTURE REFERENCE.
Date 2017-05-18 Rev. 0001-A Factory: ZHIVIE
866-942-5362
LOT NUMBER:
DATE OF PURCHASE: / /

Advertisement

loading
Need help?

Need help?

Do you have a question about the Bryant Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Better Homes and Gardens Bryant Series

Summary of Contents for Better Homes and Gardens Bryant Series

  • Page 1 LOT NUMBER: DATE OF PURCHASE: / / Bryant Headboard Stock # BH17-084-099-53 ADULT ASSEMBLY REQUIRED If you have any questions regarding assembly or if parts are missing, DO NOT return this item to the store where it was purchased. Please call our customer service number and have your instructions and parts list ready to provide the model name, part name or factory number: 866-942-5362 Pacific Standard Time: 8:30 a.m.
  • Page 2 Parts and Hardware List Please read completely through the instructions and verify that all listed parts and hardware are present before beginning assembly. A- Headboard (Qty. 1) B- Left Leg (Qty. 1) C- Right Leg (Qty. 1) D- Bottom Stretcher (Qty. 1) E- Back Support (Qty.
  • Page 3 Assembly Instructions Flat Washer (2 used in this step) 5/16" x 2-1/4" Bolt Lock Washer (2 used in this step) (2 used in this step) ④ ③ ② 1. Unpack the units and confirm that you have all hardware and required parts. 2.
  • Page 4 Assembly Instructions 3. Position the Headboard (A) and set the front face down on a level and protective surface. 4. Remove the additional wood blocks from the Headboard (A) by unscrewing four 1-3/8" Bolts (1) and four Washers (3 and 4). Set the unscrewed bolts and washers aside for later use. The wood blocks are used for shipping purposes only.
  • Page 5 Assembly Instructions Flat Washer (4 used in this step) Lock Washer 5/16" x 1-3/8" Bolt (4 used in this step) (4 used in this step) ④ ③ ① 5. Attach the Legs (B and C) to the cutout of the Headboard (A) with four 1-3/8" Bolts (1) and four Washers (3 and 4).
  • Page 6 Assembly Instructions Flat Washer (12 used in this step) Lock Washer 5/16" x 1-3/8" Bolt (12 used in this step) (12 used in this step) ④ ③ ① 6. Fasten two Back Supports (E) to the joints where the Legs (B and C) meet with the Headboard (A) using twelve 1-3/8"...
  • Page 7 Assembly Instructions Lock Washer (8 used in this step) ③ Flat Washer 1/4" x 2-1/2" Bolt Hex Nut (8 used in this step) (4 used in this step) (4 used in this step) ⑥ ④ ⑤ 7. With assistance, stand the Headboard (A) upright and position it near the final installation location. 8.

  • Page 8: Care And Maintenance

    Care and Maintenance Use a soft, clean cloth that will not scratch the surface when dusting. Use of furniture polish is not necessary. Should you choose to use polish, test first in an inconspicuous area. Using solvents of any kind on your furniture may damage your furniture’s finish. Never use water to clean your furniture as it may cause damage to the finish.
  • Page 9 NÚMERO de LOTE: FECHA de COMPRA: / / Cabecera Bryant Serie # BH17-084-099-53 ENSAMBLE REQUERIDO POR ADULTO Si tienen alguna pregunta acerca del ensamble o si alguna parte está faltante, no retorne esté producto a la tienda donde lo compró. Por favor llame a nuestro departamento de ayuda al cliente teniendo su instructivo y lista de partes para proveer el modelo, nombre de parte o el número de fábrica: 866-942-5362 Hora Estándar del Pacífico: 8:30 a.m.
  • Page 10 Lista de partes y material de ferretería Por favor lea completamente las instrucciones y verifique que estén todas las partes antes de iniciar el ensamblado A- Cabecera (Cant. 1) B- Pata izquierda (Cant. 1) C- Pata derecha (Cant. 1) D- Soporte inferior (Cant. 1) E- Soporte posterior (2) (1) Perno de 5/16"...
  • Page 11 Instructivo de ensamble Arandela plana Perno de 5/16" x 2-1/4" (2 usados en este paso) Arandela de presión (2 usados en este paso) (2 usados en este paso) ② ④ ③ 1. Desempacar la unidad y confirmar que se tiene todo el material de ferretería y partes requeridas. 2.
  • Page 12 Instructivo de ensamble 3. Posicionar la cabecera (A) y poner la cara frontal abajo en una superficie nivelada y protegida. 4. Remover los bloques de madera adicionales de la cabecera (A) quitando los 4 pernos de 1-3/8" (1) y cuatro arandelas (3 y 4). Guarde los pernos y arandelas para uso posterior. Los bloques de madera son utilizados solo para envios.
  • Page 13 Instructivo de ensamble Arandela plana (4 usados en este paso) Arandela de presión Perno de 5/16" x 1-3/8" (4 usados en este paso) (4 usados en este paso) ④ ③ ① 5. Sujetar las patas (B y C) al recorte de la cabecera (A) con 4 pernos de 1-3/8" (1) y 4 arandelas (3 y 4).
  • Page 14 Instructivo de ensamble Arandela plana (12 usados en este paso) Arandela de presión Perno de 5/16" x 1-3/8" (12 usados en este paso) (12 usados en este paso) ④ ③ ① 6. Apriete dos soportes posteriors (E) a las juntas donde las patas (B y C) se reúne con la cabecera (A) con 12 pernos de 1-3/8"...
  • Page 15 Instructivo de ensamble Arandela de presión (8 usados en este paso) ③ Arandela plana Perno de 1/4" x 2-1/2" Tuerca hexagonal (8 usados en este paso) usados en este paso usados en este paso ⑥ ⑤ ④ 7. Con asistencia, poner la cabecera (A) en posición vertical y posicionar cerca del lugar de instalación final. 8.

  • Page 16: Mantenimiento Y Cuidados

    Mantenimiento y Cuidados Use una toalla suave y limpia para evitar daños y rayaduras. Uso de cera para pulir muebles no es necesario. Si desea usar cera, pruebela en un área que no sea visible para revisar su funcionamiento. Usar solventes de cualquier tipo puede dañar el acabado del mueble. Nunca use agua para limpiar la unidad, ya que le puede dañar el acabado.
