Scientifi c Atlanta cable box
with HD TV

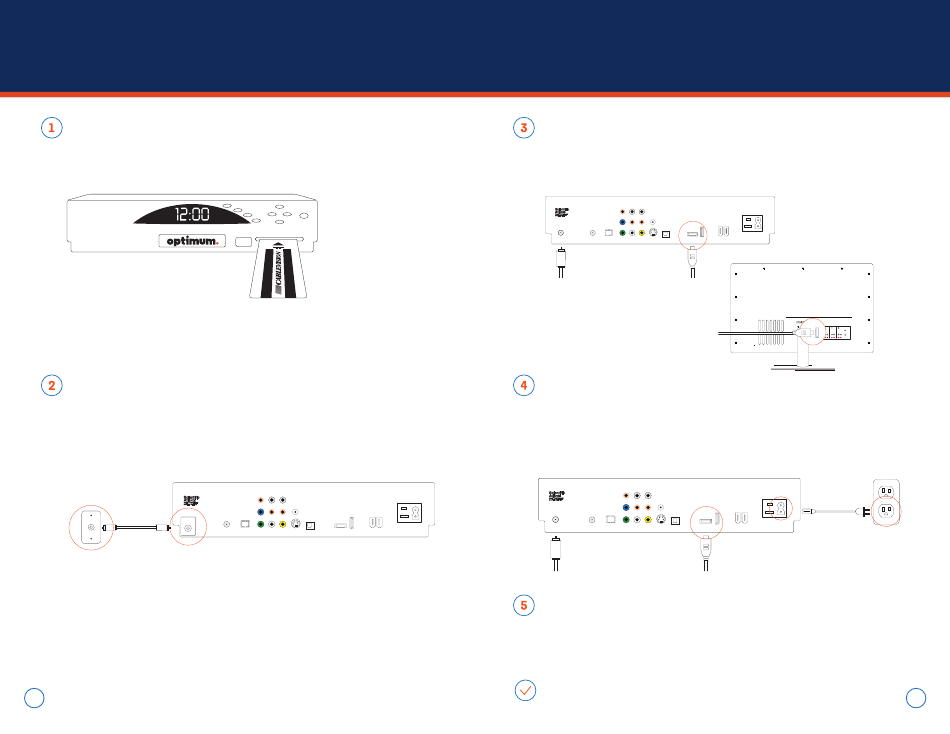

Insert the Smart Card
Insert the Smart Card into the front of the cable box.
Note: It will not insert completely. Once inserted, DO NOT REMOVE.
Connect the cable box
Connect the coaxial cable from the cable outlet to the "Cable in"port
on the back of the cable box. Manually tighten all connections.
Coaxial cable
CABLE IN
CABLE
IN
Cable in
Cable outlet
Note: If your cable outlet is already in use, see page 14 on how to use a cable splitter.
10
Back of cable box
AUDIO
OUT
L
IR
R
1394
120 VAC
60Hz 40W
CABLE BYPASS
VIDEO S-VIDEO HDMI USB
OUT
OUT
Connect the cable box to the TV
Connect one end of the HDMI cable provided to the HDMI port on the back of the
cable box. Connect the other end of the HDMI cable to one of the HDMI ports on the
back of your TV (note which TV port you plug the cord into to use in Step 4).
CABLE
IN
Coaxial cable
(plugged in)
Connect the power
Plug the power cord into the back of the cable box and then plug the other end into
an electrical outlet. Plug in your TV and turn it on. Using your TV's remote (not the
Optimum remote), on screen select the input port you chose in Step 3 by pressing the
input, source or TV/video button.
120 VAC
CABLE
60Hz 400W
IN
POWER
Coaxial cable (plugged in)
Activate
Activation should begin automatically and takes several minutes. Once "Turn" then
"On" alternate on the LED screen, press the power button on the front of the cable box.
The time will display when service is activated.
You're now ready to enjoy Optimum TV.
Back of cable box
AUDIO
OUT
L
IR
R
1394
120 VAC 120 VAC
60Hz 40W 60Hz 400W
CABLE BYPASS
VIDEO S-VIDEO HDMI USB
OUT
OUT
POWER
HDMI port
HDMI cable
Back of cable box
AUDIO
OUT
L
IR
R
1394
120 VAC
60Hz 40W
CABLE BYPASS
HDMI USB
VIDEO S-VIDEO
OUT
OUT
HDMI cable (plugged in)
Back of TV
HDMI port
Electrical outlet
120 VAC
Power cord
60Hz 400W
POWER
