Samsung cable box
with HD TV

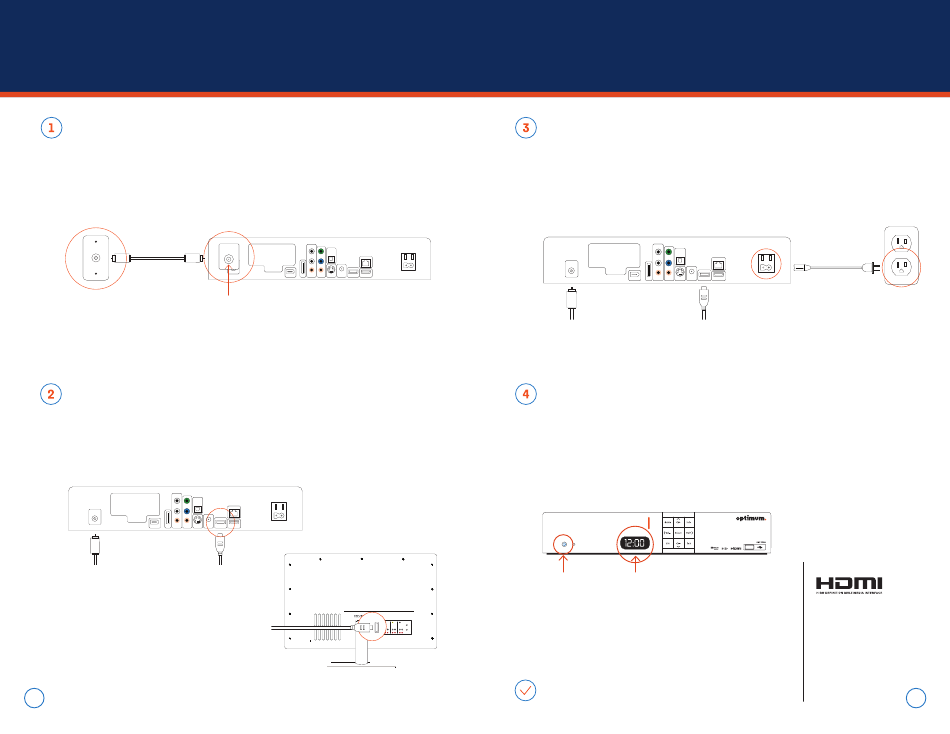

Connect the cable box
Connect the coaxial cable from the cable outlet on the wall to the "Cable in"
port on the back of the cable box. Manually tighten all connections.
Note: If your cable outlet is already in use, see page 14 on how to use a cable splitter.
Coaxial cable
Cable outlet
Connect the cable box to your TV
Connect one end of the HDMI cable provided to the HDMI port on the back of the
cable box. Connect the other end of the HDMI cable to one of the HDMI ports on
the back of your TV (note which TV port you plug the cord into to use in Step 3).
Back of cable box
VIDEO OUT
SPDIF
CABLE IN
CABLE CARD
1394
HDTV
S-VIDEO
E SATA
AUDIO
CH 3/4
OUT
OUT
Coaxial cable
HDMI port
(plugged in)
6
Back of cable box
VIDEO OUT
CABLE IN
SPDIF
LAN
CABLE CARD
1394
HDTV
S-VIDEO
HDMI
USB
E SATA
AUDIO
CH 3/4
OUT
OUT
Cable in
LAN
POWER
HDMI
USB
Back of TV
HDMI port
HDMI cable
Connect the power
Plug the power cord into the back of the cable box and then plug the other end
into an electrical outlet. Plug in your TV and turn it on. Using your TV's remote
(not the Optimum remote), on screen select the input port you chose in Step 2 by
pressing the input, source or TV/video button.
CABLE IN
POWER
Coaxial cable
(plugged in)
Activate
Activation should begin automatically. Once "Turn" and "On" alternate on the LED
screen, turn on your digital cable box if it's not already on. The power is on if the
power button is blue. On your TV you'll see text that reads: "Please wait, we are
preparing the service for you." When the service is ready, the time will display on
the LED screen. This may take several minutes.
Power button
You're now ready to enjoy Optimum TV.
Back of cable box
VIDEO OUT
SPDIF
LAN
POWER
CABLE CARD
1394
HDTV
S-VIDEO
HDMI
USB
E SATA
AUDIO
CH 3/4
OUT
OUT
HDMI cable
(plugged in)
LED screen
Electrical
outlet
Power cord
®
