Samsung cable box
with non-HD TV

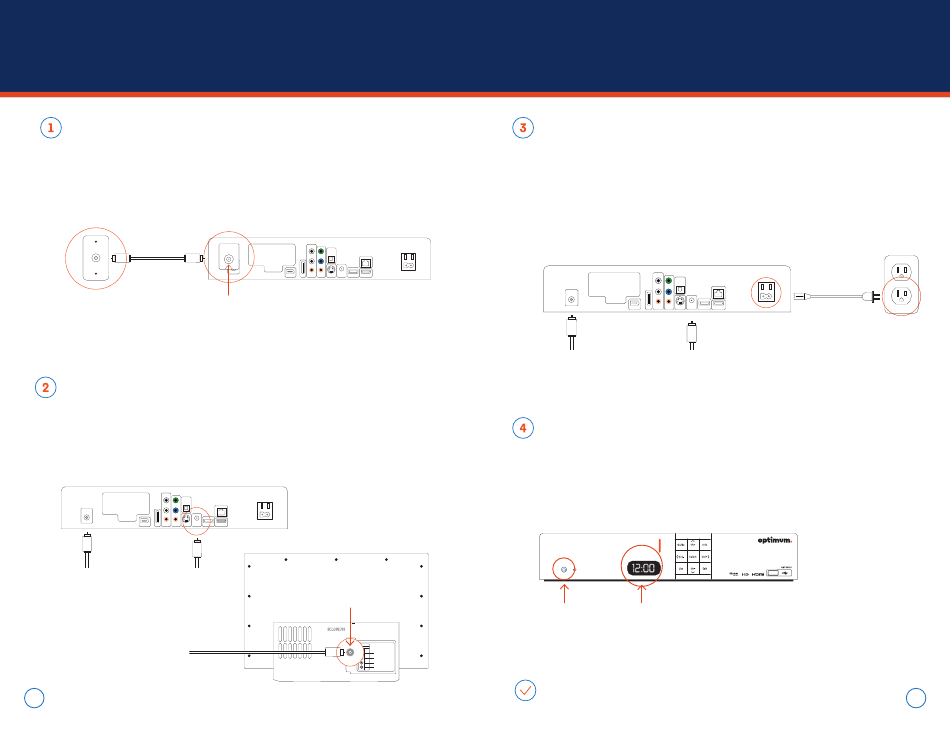

Connect the cable box
Connect the coaxial cable from the cable outlet on the wall to the "Cable in"
port on the back of the cable box. Manually tighten all connections.
Note: If your cable outlet is already in use, see page 14 on how to use a cable splitter.
Coaxial cable
Cable outlet
Connect the cable box to your TV
Connect one end of the coaxial cable to the "CH 3/4 out" port on the back of the
cable box and the other end to the "VHF/UHF" or "Antenna in" port on the back of
your TV.
Back of cable box
VIDEO OUT
SPDIF
CABLE IN
CABLE CARD 1394 HDTV S-VIDEO HDMI
E SATA AUDIO CH 3/4
OUT OUT
Coaxial cable CH 3/4 out
(plugged in)
Additional coaxial cable
(available at any Optimum Store)
8
Back of cable box
VIDEO OUT
CABLE IN
SPDIF
LAN
CABLE CARD
1394 HDTV S-VIDEO HDMI USB
E SATA AUDIO CH 3/4
OUT OUT
Cable in
LAN
POWER
USB
Back of TV
VHF/UHF or
Antenna in
VIDEO IN
1 3
VHF/UHF
S VIDEO
VIDEO
L AUDIO
R AUDIO
Connect the power
Plug the power cord into the back of the cable box and then plug the other end into
an electrical outlet. Plug in your TV and turn it on. Using your TV's remote (not the
Optimum remote), tune to channel 3 or 4 on your TV to get a signal.
Note: Once your TV is set to the right channel, DO NOT CHANGE it with your TV remote or you will lose
your cable signal. Use only the Optimum remote to change channels after setup.
POWER
CABLE IN
Coaxial cable
(plugged in)
Activate
Activation should begin automatically. Once "Turn" and "On" alternate on the LED
screen, turn on your digital cable box if it's not already on. The power is on if the power
button is blue. On your TV you'll see text that reads: "Please wait, we are preparing the
service for you." When the service is ready, the time will display on the LED screen. This
may take several minutes.
Power
button
You're now ready to enjoy Optimum TV.
