H-MW2317
MICROWAVE OVEN
Instruction manual

Advertisement

Table of Contents
loading

Related Manuals for Hyundai H-MW2317

Summary of Contents for Hyundai H-MW2317

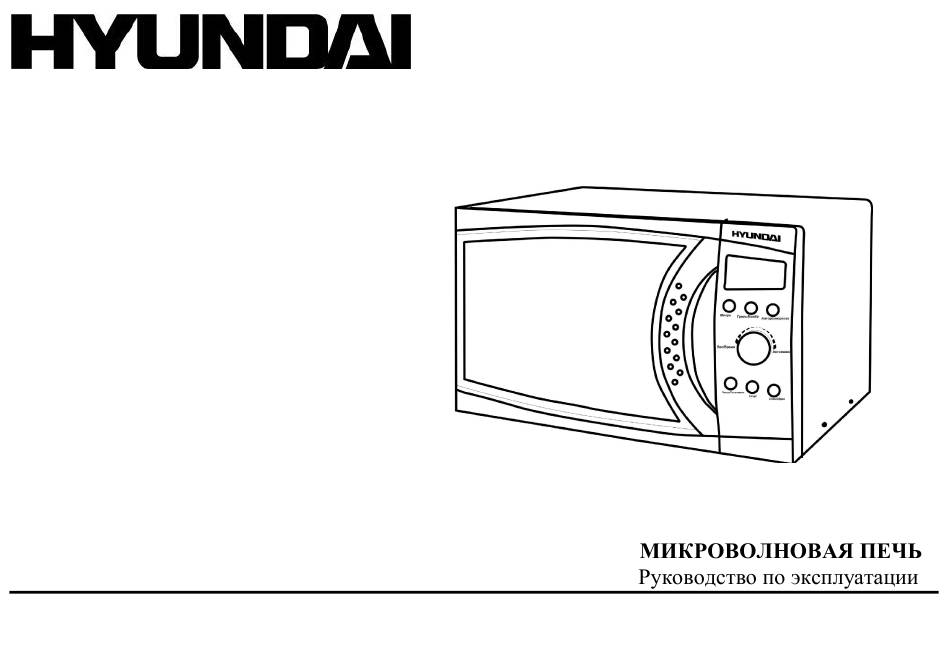

  • Page 1 H-MW2317 MICROWAVE OVEN Instruction manual...

  • Page 2: Important Safeguards

    Description 1. Door safety lock system 2. Oven window 3. Shaft of roller ring and bottom 4. Roller ring 5. Glass tray 6. Control panel 7. Grill rack 1. Display button button button 5. Knob button button button Important safeguards WARNING: To reduce the risk of burns, electric shock, fire, injury to persons: Read all instructions before using microwave oven.
  • Page 3 Close supervision is necessary, when used by children. Do not operate this microwave oven, if it doesn’t work properly. To reduce the risk of fire in the oven cavity it is necessary to follow the bellow rules: Do not overcook food. Carefully attend microwave oven if paper, plastic or other combustible materials are placed inside the oven. Remove wire twist-ties from bags before placing food into the oven.

  • Page 4: Before You Call For Service

    The contents of feeding bottles and baby food jars are to be stirred and shaken and the temperature is to be checked before consumption, in order to avoid burns. WARNING: If the door or door seals are damaged, the oven must not be operated, until, it is repaired by a trained person. It is hazardous for anyone other than a trained person to carry out any service or repair operation.
  • Page 5 How to choose your microwave cookware Applicable SORTS INSTRUCTIONS SORTS INSTRUCTIONS Heat-proof It most suitable for microwave Heat-resistant plastic container Tightly closed containers are forbidden. Cannot be cooking. used for packing or containing foods with high fat or glassware sugar contents. Conventional utensils of these Film for freshment preservation and Earthenware or...

  • Page 6: Operation

    How to identify if certain cookware is suitable for microwave cooking purpose? Put the intended cookware together with a glass of water (300 ml) inside the oven cavity, and then set the oven at the "HIGH" stage for one minute. Applicable microwave cookware will be as cool as ever, while the water will absorb the energy and become warmer.

  • Page 7: Grill/Combi Cooking

    100P--- High power, 100% microwave power. Applicable for quick and thorough cooking, such as meat, vegetable 80P --- Medium High power, 80% microwave power. Applicable for medium express cooking, such as eggs, fish, congee, rice, soup 60P --- Medium power, 60% microwave power. Applicable for steaming food 40 P --- Medium Low power, 40% microwave power.

  • Page 8: Auto Defrost

    Auto defrost. This function allows to defrost food depending on it’s kind, one just should choose the necessary mode and enter the weight of the food, the defrost time will be then set automatically. 1) Press the a button and the LED display will cycle to show d.1 d.2 d.3: d.1 --- for defrosting meat, the weight range from 0.1Kg to 2.0 Kg.
  • Page 9 Roast Meat (Beef/pork/lamb) - Shield the edges with foil strips. - Place joint with lean side face upwards (if possible) on a shallow dish. - turn over the food in the middle course. And then shield the defrosted portions. - Close the door to continue defrosting. - After defrost time, stand covered with aluminum foil for 10-30 minutes.
  • Page 10 Popcorn Same as A.1 except 100g weight Pizza Warm a piece of chilled pizza of 0.15Kg Beverage Heating a cup of 250 ml liquid. The liquid temperature is about 5-10º C. Use a big mouth cup and do not seal Beverage Heating a cup of 500 ml liquid.

  • Page 11: Multi-Sequence Cooking

    Multi-sequence cooking To obtain best cooking result, some recipes call for different cook and time. You may program your personalized menu as follow: Example: You want cook food with 100P microwave for 3 minutes then grill food for 9 minutes. This is 2 sequence setting. 1.

  • Page 12: Care And Cleaning

    - Fish is opaque and flakes easily with a fork. 10) Condensation It is a normal case of microwave cooking. The humidity and moisture of food will influence the amount of moisture in the oven. Generally, covered foods will not cause as much condensation as uncovered foods. Ensure that the ventilation openings are not blocked. Care and cleaning Always unplug oven and be sure oven is cool before cleaning.

  • Page 13: Specification

    If a stain should still remain, remove stain with a paste of two parts braking soda and three parts water. Apply paste to stain, let stand one or two hours, then wipe with a clean damp cloth, rinse and dry. Specification Power supply 230 V, 50 Hz...
  • Page 18 (~ 300 «:», - End, « » « » «OFF» «:»...
  • Page 19 100 , 80 , 60 , 40 , 20 . 100 – (100%), - 80 – (80%), - 60 – (60%), - 40 – (40%), - 20 – (20%), - 80%. 80 . «10:30» « ». G, -1 -2 - «...
  • Page 20 « », – d1, d2 d1 – d2 - d3 - 2.0 ( 100 . 5-15...
  • Page 21 5-15 10-30 15-30 5-30 « » Category A.1 ,...
  • Page 22 5-10º C. 5-10º C. A.6 , 22-27 100% ), - » 100%, «100 » «9:30» ., - « ») , 14...
  • Page 23 100%, 100% «100 » «3:00» « » «9:00» « » – « »...
  • Page 24 « » –...
  • Page 25 " " " "...
  • Page 26 , 50 1150 11,2 /12.4 x 342.3 x 262.8...
