Ger Detect FRESH RESULT 2 SYSTEMS PLUS User Manual page 11

1 4.3 inch Screen for result display
2 BACK button to return back to return the previous page
3
Ok button to conform the options selected
Navigation buttons between the options (up – down – right – left)
4
5
Fuse to protect the electronic circuit
6
12 v. Battery entrance
7 Power button
8 The transmission antenna for the long range system
9 4 entrance for the cable that contact the device with the probes
10 RESTART button to restart the system
Start working with the geophysical system
First steps:

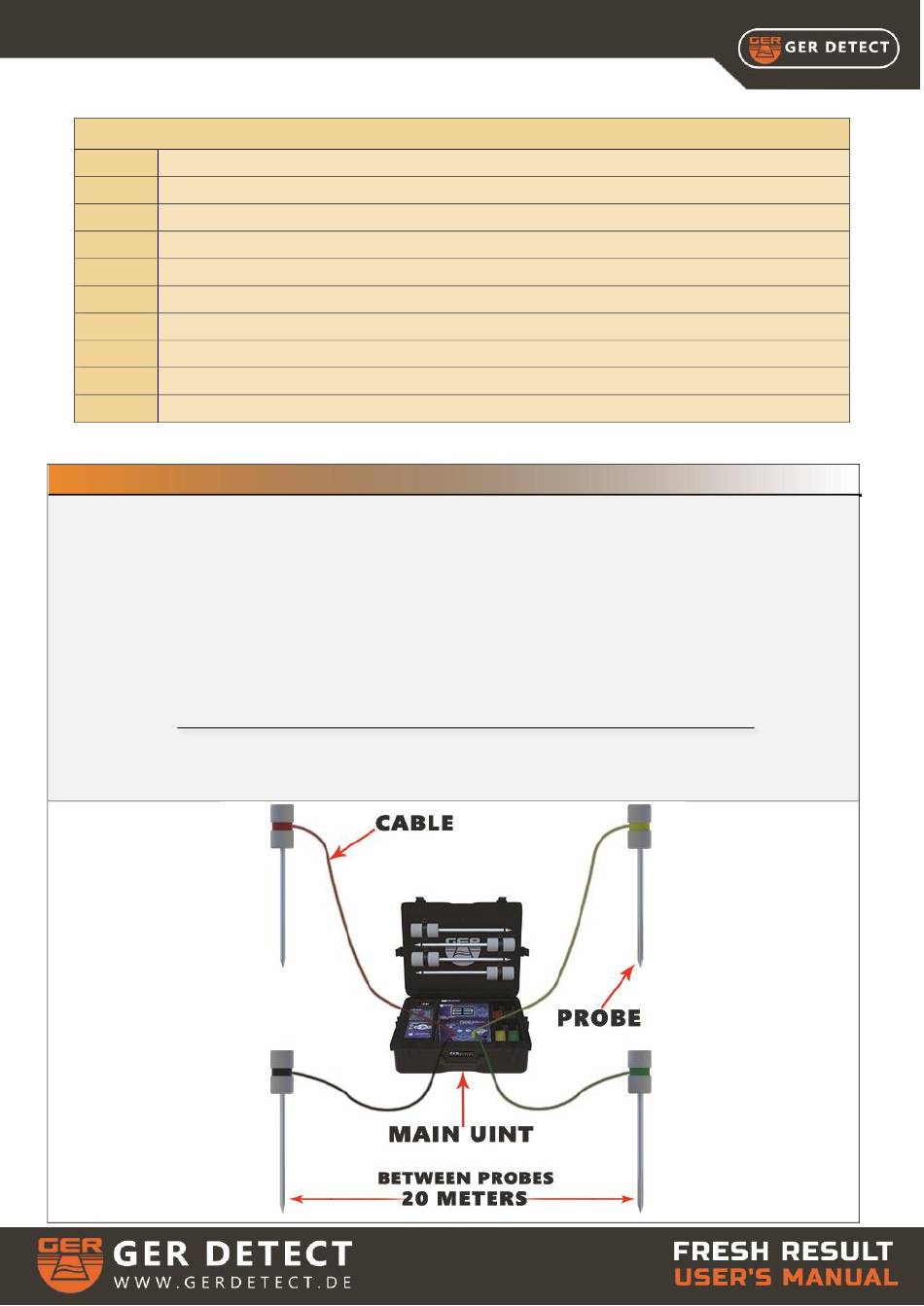

✓ plant the 4 probes, and connect them with the 4 cables
✓ plant the probes in the soil until 85% at lest of the length of the probes
✓ To get an accurate result the distance between the probes should be 20
meters at the start of the search.
✓ At the beginning of the search connect the cable between the probes and
the main unit of the device and make sure they are plugged correctly as
shown in the following picture
"NOTE"
the distance between the 4 probes should be the seam
Description
Keys
(ON/OFF) to turn on and turn off the device .
