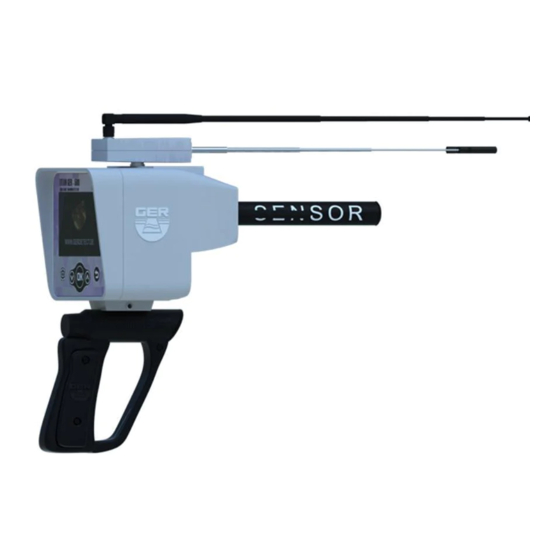

- Page 2 English User Manual TITAN GER - 500 … DIAMOND AND GEMSTONES DETECTOR … Critical Warning • • • Overview Please be sure that all precautions taken against risks ➢ Do not use your device while it is Dear customer, thank you for raining or on extremely wet floor choosing the TITAN GER –...
- Page 3 English User Manual The Long-Range System Figure (1) the long-range system components This system specializes to cover vast areas and locate the target within 1-meter Square up to depths of 65 meters below the surface of the ground and Front Range up to 3,000 square meters.
- Page 4 English User Manual Connect the signal boosting sensor Figure (2) boosting sensor Connect the transmitter antennas Figure (3): Transmitter antennas Connect the Signal Recipient Figure (4): Signal Recipient...
- Page 5 English User Manual Connect the Recipient Antenna Figure (4): Recipient Antenna - Connect the battery cable and Switch the device through ON / OFF button Figure (5): (ON / OFF) button...
- Page 6 English User Manual Figure (6): languages list Click on the screen of the device to display the languages list the device works on four languages: (GERMAN - ENGLISH - FRENCH - SPANISH - ITALIAN - ARABIC) Settings menu (Sound Adjustment – brightness adjustment, and the device information)
- Page 7 English User Manual Figure (9): Front Range Options After selecting the language, you want to work in (English for example) The target types menu will appear, choose the target type to be search for from a list of options through pressing on the type name, (big diamond for example) You can flick through these lists with the...
- Page 8 English User Manual Select the type of soil desired in the search area: (natural - clay - rocky - sandy - mixed - mineralized).
- Page 9 English User Manual Increase the length of the antennas receiving a signal To able the device to detects targets even to 3000 meters After selecting the Front Range, the digital compass will appear, Fix the device at a 90-degree angle for the compass to work properly, then Press the "Skip"...
- Page 10 English User Manual search screen Figure (10): After pressing on skip button, the light signals will appear directly on the screen confirming that the device is sending and receiving signals that guide you directly towards the target. When a signal is captured, the device will immediately turn around towards the target.
- Page 11 English User Manual North to South South to North East to West West to East After detecting the target, confirm the target from four directions Figure (14): determine the depth To determine the depth of the discovered target, stand above target and turn 45 degrees Walk straight ahead until the antenna reverse to the back...
- Page 12 English User Manual Measure the distance between the antennas reversing back and the target center point. The distance between the antennas reversing back and the center point is equal the target depth For example, if the distance is the depth of the target is 3. Note: The target must be buried underground for many years so that by the time and interaction with the soil’s composition, an ionic field will be formed which will help prospectors...
- Page 13 English User Manual Warning If you want the device work well without errors you have to follow next steps When using the device please do not wear the watch When using the device please do not wear the jewelry When using the device please get away from metal, lighter and mobile phone Please take off the belt The shoes should not contain any metal Stay away from the car...
