AutoMate
Fits Spra-Coupe 3000/4000 Series Sprayers
Overview
A series of equipment-specific kits have been developed to allow the interface of
the AutoMate system with your product rate controller.
necessary components and instructions to connect AutoMate with the equipment
models listed above. Please read this manual thoroughly before beginning the
installation.
Kit Contents:

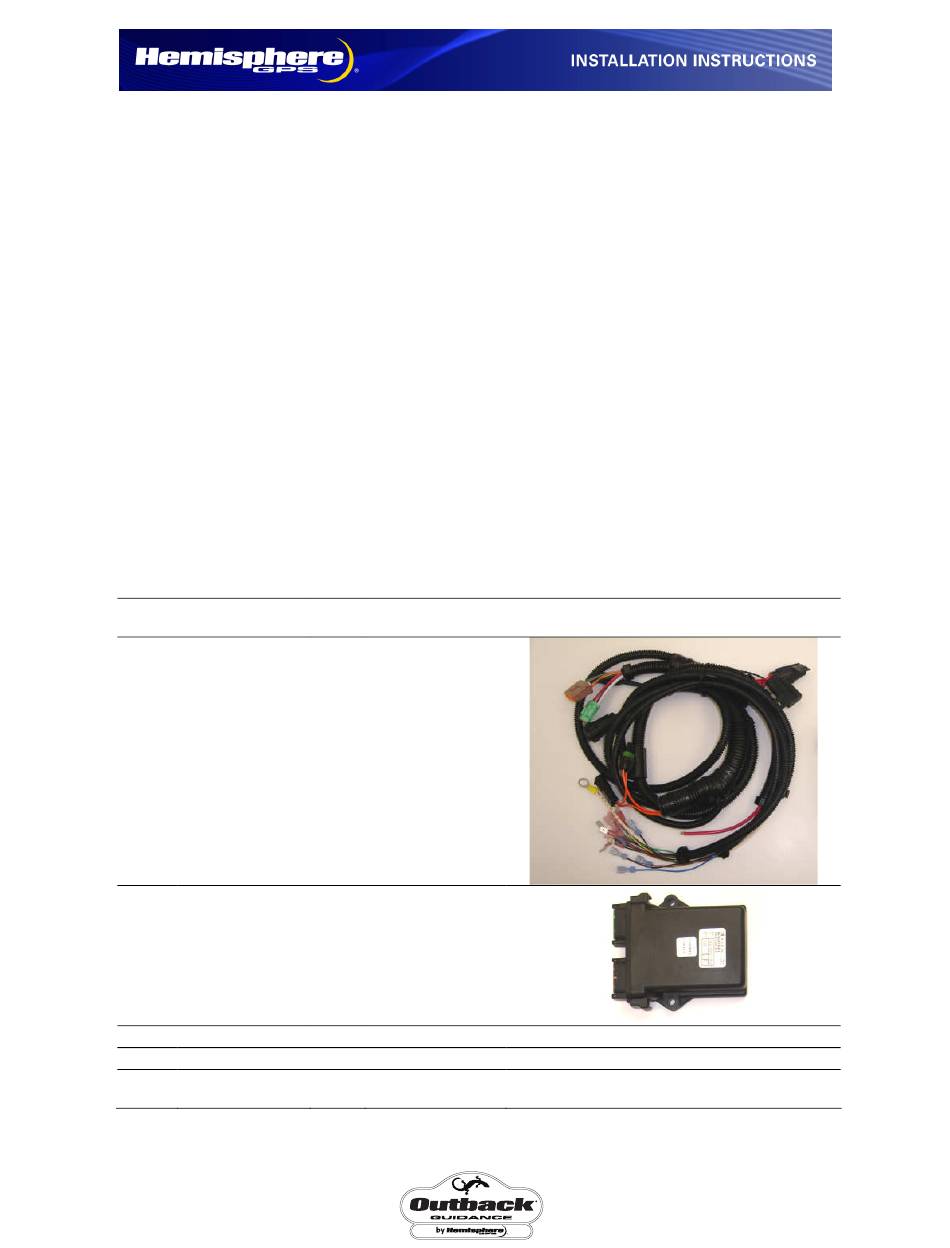

Unpack the installation kit and identify the required parts as shown.
REF
ITEM
A
Interface Cable
B
5-Channel
Driver
C
Spade Covers
D
Tie Straps
E
Installation
Instructions
March 2008
Equipment Specific Installation Kit
TM
P/N: 750-3007
QTY
COMMENTS
1
Spra-Coupe
3000/4000
1
10
6
Black, 13 inch
1
This kit contains the
PHOTOGRAPH
Not Shown
Not Shown
Not Shown
876-0105 Rev B1
